When designing or maintaining fluid systems, ensuring the right choice of check valves is essential for system performance and longevity. Nickel-aluminum bronze check valves are a popular choice for industries dealing with corrosive, abrasive, or high-pressure applications due to their superior strength, corrosion resistance, and durability. Choosing the correct type of nickel-aluminum bronze check valve for your system is critical to optimize both performance and system reliability.
A nickel-aluminum bronze check valve is a type of check valve made from a high-performance alloy composed of nickel, aluminum, and copper, with trace elements of other metals like iron, manganese, and silicon. This alloy is known for its high strength, excellent corrosion resistance, especially in seawater and other harsh environments, and its ability to withstand abrasive conditions.
Check valves are designed to allow fluid to flow in only one direction, preventing backflow that could cause system damage, contamination, or inefficiencies. Nickel-aluminum bronze check valves are ideal for demanding applications, including marine environments, oil and gas, and chemical processing, where reliability and resistance to corrosion are critical.
Nickel-aluminum bronze check valves come in several different designs, each suited to specific flow conditions, pressure requirements, and system needs. The most common types of nickel-aluminum bronze check valves include:

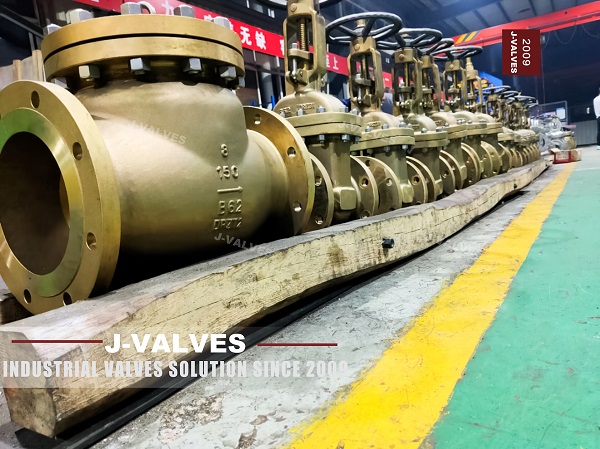

A swing check valve is one of the most common types of check valves, known for its simple design and reliable performance. It uses a hinged disc that swings open to allow flow in one direction and closes when flow reverses to prevent backflow.
Applications: Swing check valves are ideal for low to moderate flow systems, especially where the flow velocity is consistent and not prone to rapid changes.
Advantages: The swing check valve’s simple design ensures low-cost operation and easy maintenance. It is also suitable for larger pipe sizes.
Considerations: These valves are not ideal for systems with pulsating flow or low-pressure conditions, as the disc may fail to close properly.
A lift check valve is similar to a swing check valve but has a different internal mechanism. The valve consists of a poppet or disc that lifts off the seat when flow enters the valve, allowing fluid to pass in one direction. The valve closes automatically when the flow stops or reverses.
Applications: Lift check valves are suitable for high-pressure systems, pumping stations, and water treatment plants where flow conditions can vary but still require reliable backflow prevention.
Advantages: Lift check valves provide more precise control over backflow than swing check valves and are often used in systems where flow rates are high and pressure is more variable.
Considerations: These valves are not ideal for systems with low flow or fluctuating pressures, as the valve may not open or close properly under low flow conditions.
The wafer check valve has a compact, space-saving design that fits between two flanges. Unlike swing or lift check valves, the wafer check valve does not have external flanges but instead utilizes a central body with integrated sealing elements that prevent backflow.
Applications: Wafer check valves are ideal for applications in confined spaces, such as in HVAC systems, chemical pipelines, or water treatment plants.
Advantages: The compact design allows for easier installation in space-limited areas. Wafer check valves are also lightweight, making them cost-effective and easy to maintain.
Considerations: They are generally more suitable for smaller pipes and moderate-pressure applications. They may not be ideal for very large or high-pressure systems.
The ball check valve uses a ball mechanism to prevent backflow. The ball is positioned in such a way that it only allows fluid to pass through in one direction. When flow reverses, the ball blocks the flow and prevents backflow.
Applications: Ball check valves are typically used in slurry systems, water treatment, and oil & gas applications where debris or particulates might be present in the fluid.
Advantages: Ball check valves offer reliable backflow prevention and can handle a wide variety of flow conditions, including slurries and particulates in fluids.
Considerations: Ball check valves are less commonly used in high-pressure applications due to their internal components, which may wear out faster under high stress.
A tilting disc check valve features a disc that tilts on a pivot when the flow is in the correct direction, allowing the fluid to pass through. When the flow reverses, the disc tilts back to the closed position, preventing backflow.
Applications: Tilting disc check valves are commonly used in high-flow and high-pressure applications, including oil pipelines, power plants, and chemical processing plants.
Advantages: These valves are ideal for systems with high flow rates, as they provide less resistance to fluid flow compared to other types of check valves.
Considerations: The tilting disc design can cause more turbulence and may not be suitable for all flow conditions.
Now that we’ve covered the various types of nickel-aluminum bronze check valves, it’s time to explore the factors that influence your choice. Selecting the right valve depends on several considerations:
Nickel-aluminum bronze check valves are particularly well-suited for high-pressure and high-temperature applications due to the material’s strength and corrosion resistance. When selecting a valve, ensure that it can handle the system’s pressure and temperature conditions.
Pressure Rating: Check the valve’s pressure rating to ensure it can handle the maximum pressure within your system.
Temperature Range: Nickel-aluminum bronze alloys can withstand high temperatures, making them suitable for steam systems, high-temperature liquids, and hot gases.
Understanding the flow conditions of your system is crucial when selecting a check valve. For example, swing check valves are ideal for stable, low-velocity flow, while lift check valves are better suited for high-pressure systems where flow conditions may vary.
Flow Velocity: High flow velocities may require a valve with a quicker response time, such as a lift or tilting disc check valve.
Pulsating Flow: If your system experiences pulsating flow, consider a tilting disc or ball check valve to prevent issues with valve closure.
In tight spaces or compact systems, choosing a wafer check valve can save valuable space. Wafer check valves are also ideal for systems with limited clearance, such as in HVAC systems or chemical processing plants.
Consider the type of fluid passing through your system. If your fluid contains solid particles or is viscous, a ball check valve might be more appropriate, as it can handle fluids with particulates more effectively than other types.
Corrosive Fluids: Nickel-aluminum bronze’s resistance to corrosion in seawater, chemicals, and other harsh environments makes it a reliable choice for systems handling corrosive fluids.
Slurries or Particulates: Ball check valves are ideal for systems that deal with slurries or fluids containing particulate matter.
When selecting a check valve, consider the ease of maintenance. Swing check valves and lift check valves are often easier to maintain compared to more complex valve types, like tilting disc check valves.
Servicing: If frequent servicing is required, consider a valve with fewer moving parts, such as a ball check valve or wafer check valve, as they tend to be simpler to maintain.
Choosing the right nickel-aluminum bronze check valve depends on several factors, including pressure, temperature, flow conditions, fluid characteristics, and space requirements. Nickel-aluminum bronze check valves are an excellent choice for applications requiring corrosion resistance and high durability, particularly in industries like oil and gas, chemical processing, and marine systems.
By understanding the different types of nickel-aluminum bronze check valves, including swing, lift, wafer, ball, and tilting disc valves, you can select the most suitable option for your specific application. Proper valve selection ensures optimal performance, reliable backflow prevention, and increased system longevity, all of which contribute to lower maintenance costs and enhanced operational efficiency.
