NACE MR0175 Sour Service Certification | How Can Trunnion Mounted Ball Valves Resist Hydrogen Embrittlement in Sour Gas Production?

I. Introduction

In sour gas production, gathering, and processing, valves are often exposed to H2S, high pressure, chlorides, and wet environments. Under these conditions, hydrogen embrittlement and sulfide stress cracking become major failure risks. NACE MR0175 / ISO 15156 is the international standard focused on metallic material selection for H2S-containing oil and gas environments, with attention to sulfide stress cracking (SSC), hydrogen-induced cracking (HIC), and stepwise cracking.

II. What Is NACE MR0175 Sour Service Certification?

NACE MR0175 is commonly referenced together with ISO 15156. It is not just a material label. It is a framework for selecting metallic materials that are more resistant to cracking in defined H2S environments. The purpose is to reduce the risk of embrittlement, cracking, and premature failure caused by hydrogen entry into the metal structure.

For a trunnion mounted ball valve, this means the certification is not only about whether a material can be used, but whether the full valve design, hardness, heat treatment, welding quality, surface condition, and inspection process are suitable for sour service.

III. Why Does Hydrogen Embrittlement Happen?

In sour gas service, H2S promotes hydrogen generation and absorption into steel. Once hydrogen enters the metal, ductility drops and cracks can initiate and propagate more easily. High strength, high local hardness, stress concentration, defects, and poor welding practices all increase the probability of failure.

Typical risk areas in a trunnion mounted ball valve include:

• Pressure-containing body and bonnet parts

• Ball and seat contact areas

• Stem, bushing, and trunnion-related load paths

• Weld heat-affected zones

• Localized high-hardness zones and surface defects

IV. How Do Trunnion Mounted Ball Valves Resist Hydrogen Embrittlement?

1) Start with the right material

A sour-service trunnion mounted ball valve usually relies on a material system selected specifically for H2S exposure, such as carbon steel, low alloy steel, stainless steel, or nickel-based alloys, depending on the service conditions. The key is not only the alloy name, but also composition, microstructure, heat treatment, and actual hardness.

2) Control hardness strictly

Excessive local hardness is one of the most common crack initiation risks in sour service. Pressure-containing parts, stems, welds, and heat-affected zones should be controlled within acceptable hardness limits to reduce brittle behavior and improve toughness.

3) Optimize sealing design

In sour service, the sealing system must resist corrosion while avoiding local damage caused by friction, loading imbalance, and extrusion. Proper seat preload, precision ball finishing, elastic compensation, and low-friction design help reduce stress concentration.

4) Improve surface protection

Surface engineering helps the valve resist continuous attack from corrosive media. Common approaches include:

• Corrosion-resistant coatings on critical areas

• Fine surface finishing to reduce defects

• Hardfacing or corrosion-resistant overlay where needed

5) Strengthen manufacturing and inspection

Real sour-service performance is determined largely during manufacturing and inspection. Key controls include:

• Material traceability

• Chemical composition verification

• Hardness testing

• Non-destructive testing

• Pressure and seat leakage testing

• Sour-service qualification where required

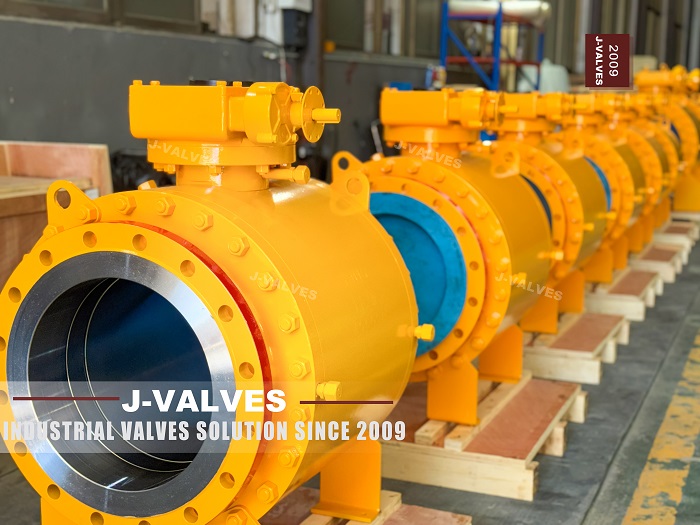

V. Why Trunnion Mounted Ball Valves Are a Strong Choice for Sour Gas

Compared with general-purpose valves, trunnion mounted ball valves offer better stability in high-pressure, large-diameter, frequent-cycling, and high-risk gas applications. The ball is supported more evenly, operating torque is more controllable, and the sealing system can be engineered for high differential pressure and sour media.

When combined with NACE MR0175 material selection, hardness control, and inspection requirements, the valve’s long-term reliability can be significantly improved.

VI. What Should Buyers Check Before Purchasing?

Focus on the following:

• Clear statement of NACE MR0175 / ISO 15156 applicability

• Whether the service medium contains H2S

• Maximum operating pressure and temperature

• Material combination for body, stem, seat, and ball

• Hardness control requirements

• Availability of material certificates, inspection reports, and test records

• Project-specific customization support

For oil and gas projects, the most reliable solution is not defined by certification alone, but by the combined performance of material, process, inspection, and project experience.

VII. Typical Applications

Sour-service trunnion mounted ball valves are commonly used in:

• Sour gas wellheads

• Gathering and processing stations

• Acid gas pipelines

• Refining systems handling sulfur-bearing media

• High-pressure separation and metering skids

These applications share the same challenge: high pressure, strong corrosion risk, and high downtime cost.

VIII. FAQ

Q1: Does NACE MR0175 mean the valve will never corrode?

No. It is a material selection and cracking-resistance standard for H2S environments, not a guarantee of immunity from all corrosion.

Q2: Why are trunnion mounted ball valves better for high-pressure sour service?

Because their load path is more stable, their sealing design is better suited for high differential pressure, and their overall reliability improves when sour-service materials and hardness controls are applied.

Q3: Is material grade alone enough?

No. Heat treatment, hardness, welding quality, surface condition, and inspection records are equally important.
