A swing check valve has to swing a disc through an arc before it seats, and reverse flow builds while the disc is still travelling. A lift check valve moves a piston or disc a few millimetres along its own axis, guided by the body, and seats over that short distance. That is the argument for the design. On a steam header or a compressor discharge the flow reverses quickly, and a closure that needs a few millimetres of travel arrives before the reverse velocity has anything to push against. The price is pressure drop, because the flow has to turn through the body and lift the disc against gravity or a spring.
The disc does not snap open. It rises with flow until the lift force balances the closing force, and between those points it hovers at part lift, throttling through a narrow gap. At steady flow that is stable; otherwise a small drop in flow lets the disc fall, the restriction rises, the flow pushes it back up, and the disc hammers the seat at whatever frequency the system supplies. Chatter is a sizing fault, not an installation fault. It wears the guide, batters the seat and produces a noise that maintenance reports as a failing valve rather than an oversized one.
Without a spring the disc closes by its own weight, so the valve must sit in a vertical line with flow upward; laid on its side, the disc has nothing to pull it home. A spring-loaded lift check closes in any orientation the maker lists, because the spring supplies the closing force, and it closes faster. The spring is not free: it adds a cracking pressure the pump or compressor pays for continuously, and it must be light enough not to waste power yet stiff enough to close against pulsation.
Cracking pressure is the differential needed to open the disc, and it is the one check valve number that shows up on the energy bill. On a compressor discharge it sits against the machine every hour of running; on a boiler feed line it adds to the pump head. Specify the lightest spring available and the valve never reaches full lift at low load, so it chatters instead. The correct starting point is the minimum continuous flow, not the maximum: the spring has to be heavy enough that the disc sits fully open at the lowest flow the machine will run at.
Steam lines are wet at start-up, and wet wherever they are not drained. A lift check valve will see condensate slugs travelling at line velocity, and a slug arriving at a partly open disc is the classic water hammer event in a steam system. Three details reduce the exposure. Drain upstream of the valve, so slugs are removed before they arrive. Slope the pipe toward the drain, not toward the valve. And size the valve for the volume it will actually pass, because one selected on the condensate figure is oversized for the vapour and spends its life in the chatter zone. Scale is the second problem: carryover deposits on the guide, and a piston that cannot travel freely either stays shut or stays open.
A reciprocating compressor delivers pulses, not steady flow, so a discharge check valve sees the flow fall toward zero once per revolution. That is the condition that makes a spring necessary, because neither gravity nor a light spring closes the disc inside the interval between pulses, and the valve ends up floating at part lift. Two details belong on the drawing. The valve should not be mounted hard against the discharge nozzle, where pulsation amplitude is highest; a length of pipe or a pulsation dampener extends its life. And the disc-to-guide clearance has to suit the discharge temperature, because a piston that grows into its guide will seize and one machined loose will rattle out of alignment.
| Type | Closing travel | Mounting | Best duty | Weak point |
|---|---|---|---|---|
| Lift check, unspringed | Short, axial | Vertical, flow up only | Steam and water lines with steady flow | Cannot close without gravity |
| Spring lift check | Short, axial | Any listed orientation | Compressor discharge, pulsating flow | Permanent cracking pressure |
| Swing check | Long, arcing | Horizontal or vertical up | Large low pressure lines, low loss | Slow closure, water hammer |
| Swash plate check | Short, axial disc ring | Horizontal, most sizes | High flow, low loss, fast closure | Small size range |
On large diameter low pressure water lines the pressure drop of a lift design is not worth paying, and a swing check or a swash plate valve is cheaper to run. On vertical downflow a lift check cannot be used at all. And where the line carries solids or fibre, the guide is a trap, because the piston needs clearance to move and that clearance fills. Those three exclusions matter more than the table above.
Five lines cover it. State the design: lift check, spring or unspringed. State the orientation it will be installed in, because that decides whether a spring is mandatory. State the cracking pressure, and check it against the minimum continuous flow rather than the maximum. State body, disc and seat material with the end connection. And state the seat test at 1.1 times and the shell test at 1.5 times rated pressure, with the record shipped against the serial number.

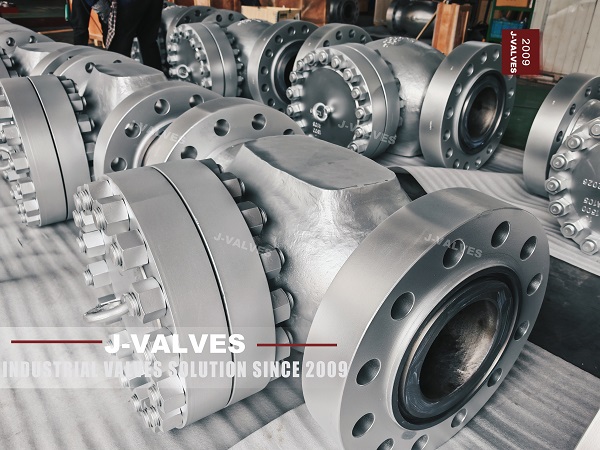

J-VALVES builds lift check valves from 1/2 to 56 inch (DN15 to DN1400) in ASME Class 150 to 2500, in flanged, wafer and threaded patterns, spring loaded or unspringed, in WCB, CF8, CF8M and forged grades. Swing check and swash plate valves are built on the same lines. Shell tests run at 1.5 times and seat tests at 1.1 times rated pressure, and EN 10204 3.1 certificates are issued on request.
Can a lift check valve be installed horizontally? Only if it is spring loaded and the maker lists that orientation, because the spring provides the closing force. An unspringed lift check depends on gravity, so it has to sit in a vertical line with flow upward. Fitted sideways it has nothing to return the disc to its seat.
Why does a lift check valve chatter? Because the disc is running at part lift, where lift force and closing force are close enough that small flow changes move it. The usual cause is a valve sized on line size rather than on flow, so it never reaches full lift at normal load. It wears the guide and batters the seat, and does not stop on its own.
Lift check or swing check for a compressor discharge? Lift check with a spring, in almost every case. A reciprocating compressor drops its flow toward zero once per revolution, and only a short axial stroke closes inside that interval. A swing check needs an arc of travel and closes after reverse flow has started.
