Lift Check Valve: Engineering Design And Industrial Application in High-Pressure Pipeline Systems

Introduction

In industrial pipeline systems, preventing reverse flow is essential for protecting pumps, compressors, and critical process equipment. The lift check valve is one of the most reliable non-return valve types used in high-pressure and high-integrity systems such as oil & gas transmission, petrochemical plants, and power generation facilities.

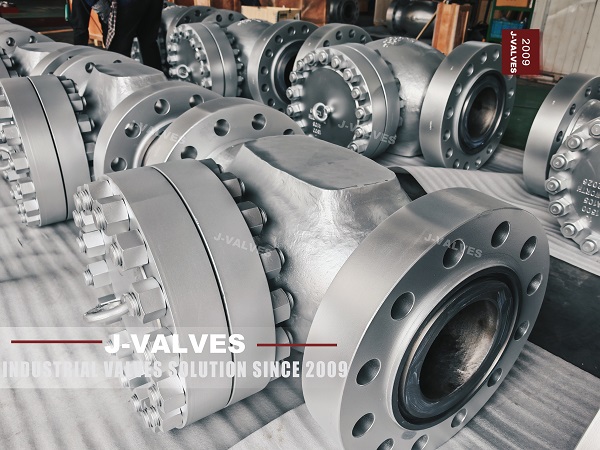

The lift check valve shown in the image represents a heavy-duty forged steel design, typically used in high-pressure Class 1500LB pipeline systems, where strength, sealing reliability, and long service life are critical requirements.

Manufacturers such as J-VALVES provide engineered lift check valves that meet API 6D and ASME standards for demanding industrial applications.

What Is a Lift Check Valve?

A lift check valve is a type of non-return valve that uses a disc or piston element which lifts vertically to allow forward flow and returns to the seat when flow reverses.

Basic Operating Principle:

• Forward flow pressure lifts the disc

• Fluid passes through the valve body

• When flow stops or reverses, gravity and backpressure close the disc

• Prevents backflow in the pipeline

This simple but effective mechanism ensures automatic flow control without external actuation.

Structural Features of Lift Check Valves

1. Pressure-Responsive Disc Design

The disc moves vertically inside a guided chamber:

• Opens under forward flow pressure

• Closes under reverse pressure or gravity

2. Heavy-Duty Forged or Cast Body

High-pressure lift check valves are typically manufactured from:

• Forged carbon steel (A105)

• Alloy steel for high temperature service

• Stainless steel for corrosive environments

This ensures structural integrity under extreme conditions.

3. Flanged or Welded Connection

Depending on application requirements:

• Flanged ends for easy maintenance

• Welded ends for permanent pipeline installation

4. High-Integrity Sealing System

Sealing surfaces are precision machined to ensure:

• Tight shutoff performance

• Minimal leakage risk

• Long service life under cyclic operation

How Lift Check Valves Improve Pipeline Safety

1. Prevention of Reverse Flow Damage

Backflow can cause:

• Pump impeller damage

• Compressor reversal

• Pressure surge (water hammer)

Lift check valves prevent these risks by automatically closing under reverse flow conditions.

2. Protection of Critical Equipment

Installed downstream of:

• Pumps

• Compressors

• Heat exchangers

They ensure stable system operation and reduce mechanical stress on equipment.

3. Stable Operation in High-Pressure Systems

In Class 900LB–2500LB pipelines:

• Disc stability is critical

• Seat impact must be controlled

• Structural vibration must be minimized

Lift check valve design ensures controlled closure behavior.

Engineering Advantages of Lift Check Valve Design

1. Simple and Reliable Structure

No external actuator is required, reducing:

• Maintenance cost

• System complexity

• Failure points

2. Fast Response to Flow Reversal

The valve reacts instantly to pressure changes, ensuring:

• Immediate backflow prevention

• Reduced system shock

3. Suitable for High-Pressure Service

Lift check valves are ideal for:

• High-pressure steam systems

• Oil and gas transmission lines

• Refinery process pipelines

Manufacturing and Quality Control – J-VALVES Engineering Strength

J-VALVES implements strict engineering and production standards for lift check valves:

Key Manufacturing Features:

• Precision CNC machining for seat and disc alignment

• Forged body construction for high-pressure resistance

• Full material traceability (A105, LF2, F316, etc.)

• NDT inspection (UT, RT, PT)

• Hydrostatic and seat leakage testing

Compliance Standards:

• API 6D pipeline valve standard

• ASME B16.34 pressure requirements

• ISO quality management systems

These ensure consistent performance in critical industrial environments.

Typical Applications of Lift Check Valves

Lift check valves are widely used in:

• Oil and gas transmission pipelines

• Refinery process systems

• High-pressure steam systems

• Petrochemical plants

• Power generation facilities

• Pump discharge lines

Advantages Compared to Other Check Valve Types

Lift check valves are preferred in high-pressure and high-integrity systems due to their stability and sealing performance.

Conclusion

The lift check valve is a critical component in preventing reverse flow and protecting pipeline systems from hydraulic damage. Its robust structure, reliable sealing mechanism, and suitability for high-pressure environments make it essential in modern industrial applications.

With advanced manufacturing technology and strict quality control systems, J-VALVES delivers high-performance lift check valves that ensure long-term operational safety and reliability in global energy and process industries.
