In industrial piping systems, J-VALVES large-diameter gate valves are critical components used to control fluid flow in high-pressure and high-volume pipelines. A key factor that influences the performance, safety, and maintainability of these valves is the bonnet type. The two most common bonnet designs for large-diameter gate valves are bolted bonnets and welded bonnets. Selecting the right type is essential for ensuring reliability, ease of maintenance, and long-term system integrity.
The bonnet is the component that covers the valve body and provides access to internal components such as the gate, stem, and packing. It also serves as a pressure boundary, ensuring system safety and leak-proof operation. The choice of bonnet type affects installation, maintenance, pressure rating, and overall valve performance.

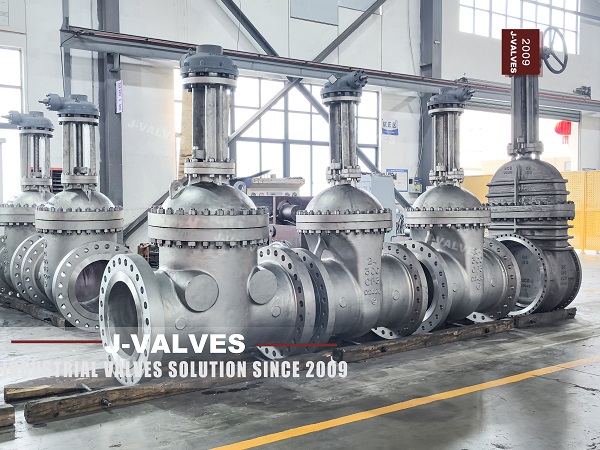

Bolted bonnets are the most traditional and widely used type in large-diameter gate valves. In this design, the bonnet is secured to the valve body with high-strength bolts, often in combination with a gasket to ensure a tight seal.
Ease of Maintenance: The bolted connection allows the bonnet to be removed for inspection, cleaning, or replacement of internal components, making it suitable for systems that require periodic maintenance.
Versatility: Bolted bonnets can accommodate different material combinations between the body and bonnet, such as carbon steel body with stainless steel bonnet, depending on the application.
Pressure Rating: Bolted bonnets can support moderate to high pressures, depending on bolt material and torque specifications.
Sealing: A gasket, often made of PTFE, graphite, or spiral wound metal, provides a tight seal between the bonnet and the body.
Water and wastewater pipelines
Power generation plants
Chemical and petrochemical facilities
Oil and gas distribution networks
Pros | Cons |
Easy access for maintenance | Potential for gasket leaks over time |
Flexibility in material selection | Bolt loosening can occur in high-vibration environments |
Widely available and cost-effective | Requires periodic inspection and torque verification |
Welded bonnets eliminate the use of bolts by permanently welding the bonnet to the valve body. This design creates a robust, leak-proof joint capable of handling extreme pressures and temperatures.
High Integrity Seal: The welded connection provides a permanent, tight seal, ideal for critical applications where leakage cannot be tolerated.
Durability: Welded bonnets are highly resistant to vibration, thermal expansion, and corrosion, making them suitable for harsh environments.
Pressure and Temperature Ratings: Welded bonnets can handle very high pressures and temperatures, making them suitable for steam, high-pressure oil, and chemical services.
Minimal Maintenance: Since the bonnet is permanently attached, maintenance requirements are reduced, and the risk of bolt failure or gasket deterioration is eliminated.
Offshore oil and gas pipelines
High-pressure steam systems
Petrochemical and chemical processing units
Subsea and extreme environment pipelines
Pros | Cons |
Permanent, leak-proof seal | Difficult to access internal components |
Excellent resistance to vibration and thermal stress | Higher initial manufacturing cost |
Suitable for extreme pressures and temperatures | Repair requires cutting and rewelding |
Feature | Bolted Bonnet | Welded Bonnet |
Maintenance Access | Easy | Limited, requires cutting |
Sealing Method | Gasket | Welded joint |
Pressure Rating | Moderate to high | Very high |
Temperature Rating | Moderate | Very high |
Vibration Resistance | Moderate | Excellent |
Cost | Lower upfront | Higher upfront |
When selecting a J-VALVES large-diameter gate valve, consider the following factors:
Application Pressure and Temperature: For extreme conditions, welded bonnets are preferred. Bolted bonnets are suitable for moderate pressures.
Maintenance Requirements: If frequent inspection or replacement of valve internals is necessary, bolted bonnets offer ease of access.
Environmental Conditions: Welded bonnets perform better in corrosive, high-vibration, or offshore environments.
Budget Constraints: Bolted bonnets are generally more cost-effective initially, while welded bonnets offer long-term reliability.
Regulatory Requirements: Some critical applications may mandate welded joints to meet safety and leakage standards.
The choice between bolted and welded bonnets in large-diameter gate valves is a balance between maintenance accessibility, cost, and operational requirements. Bolted bonnets provide flexibility and ease of maintenance, making them ideal for moderate pressure and temperature systems. In contrast, welded bonnets offer superior leak-proof performance, durability, and suitability for extreme environments, making them the preferred choice for high-pressure, high-temperature, and critical industrial applications.
By understanding the differences, benefits, and limitations of each bonnet type, engineers and designers can select the most appropriate valve for their system, ensuring optimal performance, safety, and longevity.
