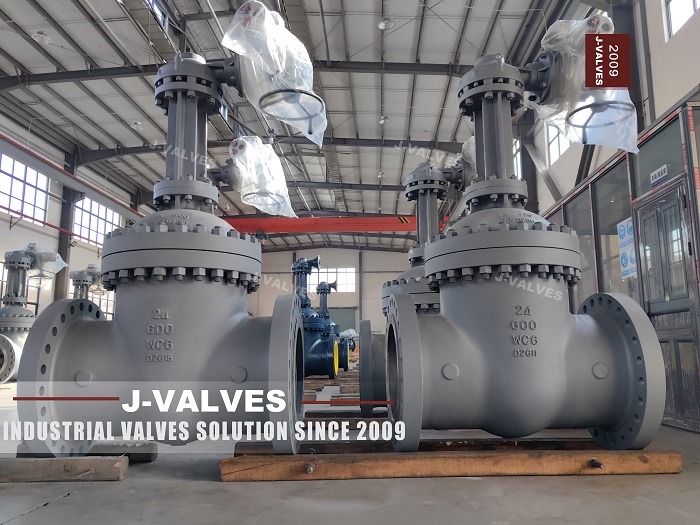

Understanding Large Diameter Gate Valves
Large diameter gate valves are essential components in industries such as power generation, oil and gas, petrochemicals, and water treatment. They are designed to control the flow of fluids in large pipelines, often under high pressure and temperature conditions. The primary function of these valves is to provide reliable shutoff and flow control, ensuring system integrity and safety.
Key Components of Large Diameter Gate Valves
• Valve Body: The main structure that houses all internal components.
• Gate: The closure element that controls the flow of fluid.
• Stem: The component that connects the gate to the external actuator or handle.
• Bonnet: The cover that protects the internal components and provides access for maintenance.
• Seats: The sealing elements that provide a tight seal against the gate.
• Gaskets: The components that ensure a leak-tight seal between the valve body and bonnet.
• Flanges: The connection points that allow the valve to be bolted to the piping system.
Pressure sealing technology is a critical aspect of large diameter gate valve design. Unlike traditional gate valves that rely solely on mechanical force to maintain a seal, pressure seal valves utilize system pressure to enhance sealing effectiveness. This technology ensures that the valve's sealing performance improves with increasing pressure, making it ideal for high-pressure applications.
Types of Pressure Sealing Mechanisms
1. Thrust Ring Mechanism: This mechanism uses a thrust ring that is forced against the valve body by the system pressure. The thrust ring, along with a gasket and spacer ring, creates a tight seal that becomes more effective as pressure increases.
2. Flexible Wedge Mechanism: The flexible wedge design allows the gate to conform to the valve seats under pressure, providing a reliable seal. This design is particularly useful in applications where thermal expansion and contraction are significant.
3. Parallel Slide Mechanism: In parallel slide gate valves, the gate slides over the seats, maintaining a consistent seal. This design is effective in applications where bidirectional sealing is required.
Design Considerations for Large Diameter Gate Valves
The choice of material for large diameter gate valves is crucial for ensuring durability, strength, and corrosion resistance. Common materials include:
• Carbon Steel (WCB): Suitable for applications up to 650°F (343°C) and pressures up to 2,000 psi (138 bar). Carbon steel is known for its strength and cost-effectiveness.
• Alloy Steel (ASTM A350 LF2): Provides better low-temperature toughness and is suitable for applications up to 800°F (427°C) and pressures up to 2,500 psi (172 bar).
• Stainless Steel (ASTM A351 CF8 and CF8M): Offers excellent corrosion resistance and is suitable for applications up to 1,200°F (649°C) and pressures up to 2,500 psi (172 bar).
• Graphite: Known for its excellent high-temperature performance and ability to maintain a seal even under extreme conditions. Graphite seats are often used in high-temperature steam valves.
• PTFE (Polytetrafluoroethylene): Provides excellent chemical resistance and low friction, making it suitable for applications up to 500°F (260°C). However, PTFE may not be ideal for the highest temperature ranges.
• Metal Seals: Metal-to-metal seals, often made from stainless steel or other high-temperature alloys, provide robust performance in high-temperature and high-pressure applications.
• Pressure Relief Mechanisms: To prevent over-pressurization and ensure safety, some valves are equipped with pressure relief mechanisms.
• Thermal Expansion Compensation: The valve design must account for thermal expansion to prevent stress-induced failures. This can be achieved through the use of expansion joints or flexible connections.
• Easy Maintenance: Large diameter gate valves are often designed with easy access to internal components for inspection and maintenance.
Comparison of Pressure Sealing Technologies
| Feature/Valve Type | Thrust Ring | Flexible Wedge | Parallel Slide |
| Sealing Effectiveness | Increases with pressure | Excellent under high pressure | Consistent bidirectional sealing |
| Material Compatibility | Suitable for high-pressure applications | Ideal for thermal expansion environments | Effective in bidirectional flow applications |
| Maintenance Requirements | Low maintenance | Requires periodic inspection | Moderate maintenance |
| Applications | Power generation, oil and gas | Chemical processing, water treatment | Oil and gas, petrochemicals |
