In industrial fluid control systems, the reliability and performance of check valves are critical for ensuring efficient operations and preventing backflow. J-Valves, a leading manufacturer of industrial valves, offers a range of check valves designed to meet the stringent requirements of ASME B16.34.
ASME B16.34 is a widely recognized standard that specifies the requirements for flanged, threaded, and welding end valves, including check valves. It covers a range of sizes and pressure ratings, ensuring compatibility and reliability across different systems.
1. Pressure-Temperature Ratings: Specifies the maximum allowable working pressure (MAWP) and temperature ratings for different materials.
2. Design and Manufacture: Outlines detailed requirements for the design and manufacturing of valves, including body ends, body tappings, and connections.
3. Materials: Defines allowable materials and their properties for different components of the valve.
4. Testing and Inspection: Provides protocols for testing and inspection to ensure valve performance and reliability.
5. Marking: Specifies marking requirements for valves, including general markings, body markings, and identification plate markings.

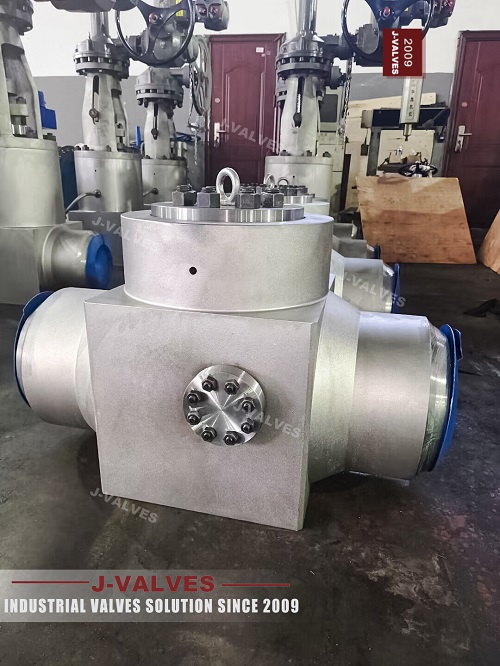

J-Valves Check Valves: Design and Materials
• Structure: J-Valves check valves feature a robust design with a sliding gate or disc that moves vertically to control fluid flow. This design ensures minimal pressure drop and reliable shutoff.
• Operation: The valves are designed for on-off control, providing a tight seal when closed. They are not typically used for throttling or regulating flow.
• Full Bore Flow: When fully open, check valves offer minimal pressure drop, making them suitable for systems where flow rate is critical.
• Tight Sealing: J-Valves check valves provide excellent sealing capabilities, ensuring minimal leakage when closed.
• Durability: The design of check valves allows for long-term use with minimal wear and tear.
• Valve Body and Bonnet: Common materials include carbon steel, stainless steel, and alloy steels, chosen for their strength and corrosion resistance.
• Disc and Seat: The disc and seat are often made from stainless steel or other corrosion-resistant materials to ensure durability and reliable sealing.
• Stem: The stem is typically made from stainless steel to provide mechanical strength and corrosion resistance.
• Shell Testing: Each valve undergoes a shell test at 1.5 times the MAWP to ensure structural integrity.
• Seat Testing: Seat tests are conducted at 1.1 times the MAWP to verify sealing performance. For check valves, the test is performed in the direction of flow.
• Leakage Rate: The maximum allowable leakage rate is specified to ensure reliable shutoff. For liquid tests, no visible leakage is allowed. For gas tests, the leakage rate must be less than one bubble per minute.
• Material Selection: J-Valves check valves are designed with high-quality materials to meet the stringent requirements of ASME B16.34, ensuring reliability in harsh environments.
• Testing Rigor: Comprehensive testing ensures that each valve meets the required performance standards, reducing the risk of failure in critical applications.
• Environmental Conditions: The valves are designed to withstand a wide range of temperatures and pressures, making them suitable for various industrial applications.
