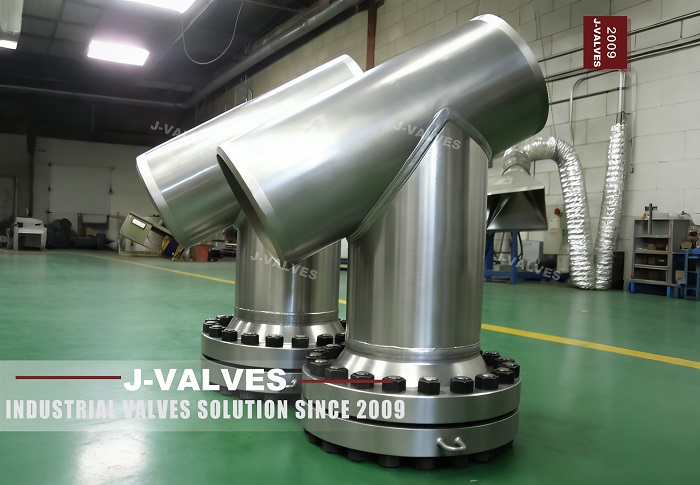

An Industrial Butt Weld Filter is a pipeline filtration device connected by butt welding, designed to remove debris, welding residue, metal particles, and other solid contaminants from process lines. It is widely used in industrial systems where sealing performance, pressure resistance, and long-term reliability are essential.
Compared with threaded or flanged connections, butt weld construction offers a stronger and more compact solution, making it suitable for critical service applications in oil & gas, petrochemical, power plants, and manufacturing facilities.
Industrial Butt Weld Filter products are commonly offered in two main configurations: T-Type and Straight Type.
T-Type filters are ideal for systems that require flexible piping layouts and effective contaminant collection. They are often selected for applications where filtration performance and maintenance access are important.
Straight type filters are better suited for inline installation. They provide smooth flow passage, lower pressure loss, and a clean layout for pipelines that demand stable flow performance.
Both designs help protect downstream equipment and improve the overall reliability of the pipeline system.
The ANSI Class 150/300 rating indicates that the filter can be integrated into different pressure classes of industrial piping systems. Class 150 is commonly used in standard service conditions, while Class 300 is more suitable for medium to high-pressure applications.
Choosing the correct pressure class is important for safety, compatibility, and long-term operational performance. For projects with pressure fluctuations, thermal stress, or corrosive media, proper class selection becomes even more critical.
Butt weld connection is widely preferred in industrial pipeline design for several reasons:
Strong and reliable sealing performance
Reduced leakage risk
Better structural integrity under pressure
Smooth internal flow path
Lower maintenance demand
Suitable for high-temperature and high-pressure environments
For industries that require dependable operation, a butt weld filter is often a better engineering choice than conventional connection types.
Industrial Butt Weld Filters are commonly used in:
Oil and gas pipelines
Petrochemical process systems
Refinery units
Power generation plants
Marine and offshore piping
Industrial water circulation systems
Chemical processing lines
In these environments, filtration is not only about removing particles. It is also about protecting pumps, valves, meters, heat exchangers, and other downstream components.
Depending on the service media and working conditions, Industrial Butt Weld Filters can be manufactured in carbon steel, stainless steel, low-temperature steel, or alloy steel. Filter mesh size, end connection, pressure class, and body design can all be customized according to project requirements.
Common customization options include:
Material selection
Filtration rating
Body design
End connection type
Pressure class
Corrosion protection
Non-standard dimensions
Customers choose this product for practical performance and engineering reliability. Key benefits include:
Strong body structure for demanding applications
T-Type and Straight options for different pipeline layouts
ANSI Class 150/300 compatibility
Butt weld ends for safer and tighter sealing
Customizable for project-specific needs
Designed for long service life in industrial systems
If your project requires a durable, efficient, and dependable filtration solution, this product is an excellent fit.
An Industrial Butt Weld Filter is more than a simple filtration component. It is a key part of a safe and efficient pipeline system. With T-Type or Straight configurations and ANSI Class 150/300 options, it helps maintain clean flow, protect equipment, and reduce maintenance costs in demanding industrial environments.
