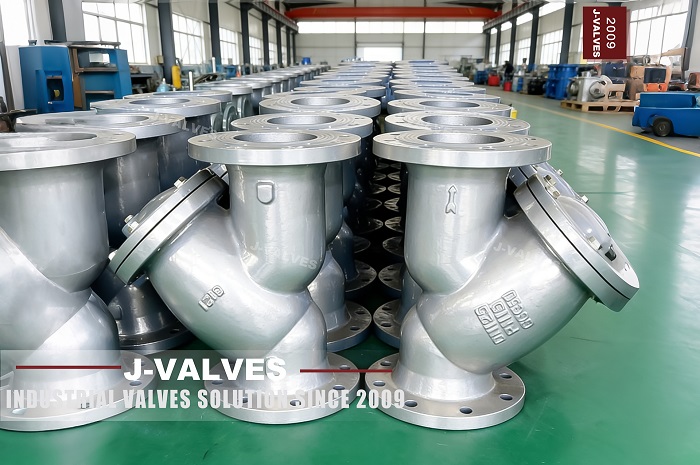

A stainless steel Y type filter is a pipeline filtration device designed to remove solid particles, debris, and welding slag from fluid lines. It helps protect pumps, valves, flow meters, and other sensitive equipment. Because of its compact structure, strong filtration performance, and excellent corrosion resistance, it is widely used in water treatment, chemical processing, oil and gas, food production, pharmaceuticals, and HVAC systems.
Although a Y type filter is simple in structure, incorrect installation can reduce filtration efficiency, increase pressure drop, and affect overall system stability. Proper installation helps ensure reliable operation, easier maintenance, and a longer service life.
Before installing a stainless steel Y type filter, make sure the following steps are completed:
Check that the filter size, pressure rating, and connection type match the pipeline.
Inspect the filter screen for any shipping damage.
Clean the pipeline to remove welding slag, metal chips, and other debris.
Prepare the necessary tools, gaskets, and sealing materials.
Make sure the system is shut down and fully depressurized before installation.
Always check the arrow mark on the filter body. The arrow must match the direction of fluid flow.
Incorrect flow direction will reduce filtration efficiency and may cause abnormal pressure issues.
A Y type filter is usually installed upstream of pumps, control valves, pressure reducers, or other equipment that needs protection.
It should be placed in a location that allows easy access for cleaning and maintenance.
The filter pocket or dirt collection chamber should face downward. This allows particles to settle naturally inside the chamber and makes draining and cleaning easier.
This is one of the most important installation requirements.
For large or heavy stainless steel Y type filters, additional pipe support is recommended to avoid excessive stress on the filter body.
Too much mechanical stress may lead to leakage or damage to the housing.
For flange connections, make sure the gasket is positioned correctly and the bolts are tightened evenly.
For threaded connections, use suitable sealing materials to prevent leakage.
Avoid overtightening, which may damage the threads or sealing surface.
After installation, carry out a pressure test and check for leaks.
Make sure there is no leakage, abnormal vibration, or significant pressure drop before putting the system into full operation.
Avoid these common mistakes:
Installing the filter in the wrong flow direction
Failing to keep the dirt collection chamber facing downward
Ignoring pipe support requirements
Uneven gasket installation causing leakage
Leaving welding debris inside the pipeline
Skipping the pressure test after installation
To keep the filter working efficiently, inspect the screen regularly and clean it when needed.
In systems with high contamination levels, maintenance intervals should be shorter.
If the fluid is highly corrosive, choose the right stainless steel grade such as 304, 316, or 316L.
Installing a stainless steel Y type filter is straightforward, but every detail matters.
By confirming the flow direction, choosing the right location, keeping the dirt chamber downward, and ensuring proper sealing and testing, you can improve filtration performance and maintain stable pipeline operation.
Yes, but the installation must follow the system design and the manufacturer’s instructions. The flow direction and dirt chamber position are still critical.
It depends on the contamination level of the fluid. Systems with more debris require more frequent cleaning and inspection.
It is usually installed before the pump to protect the pump and downstream equipment.
