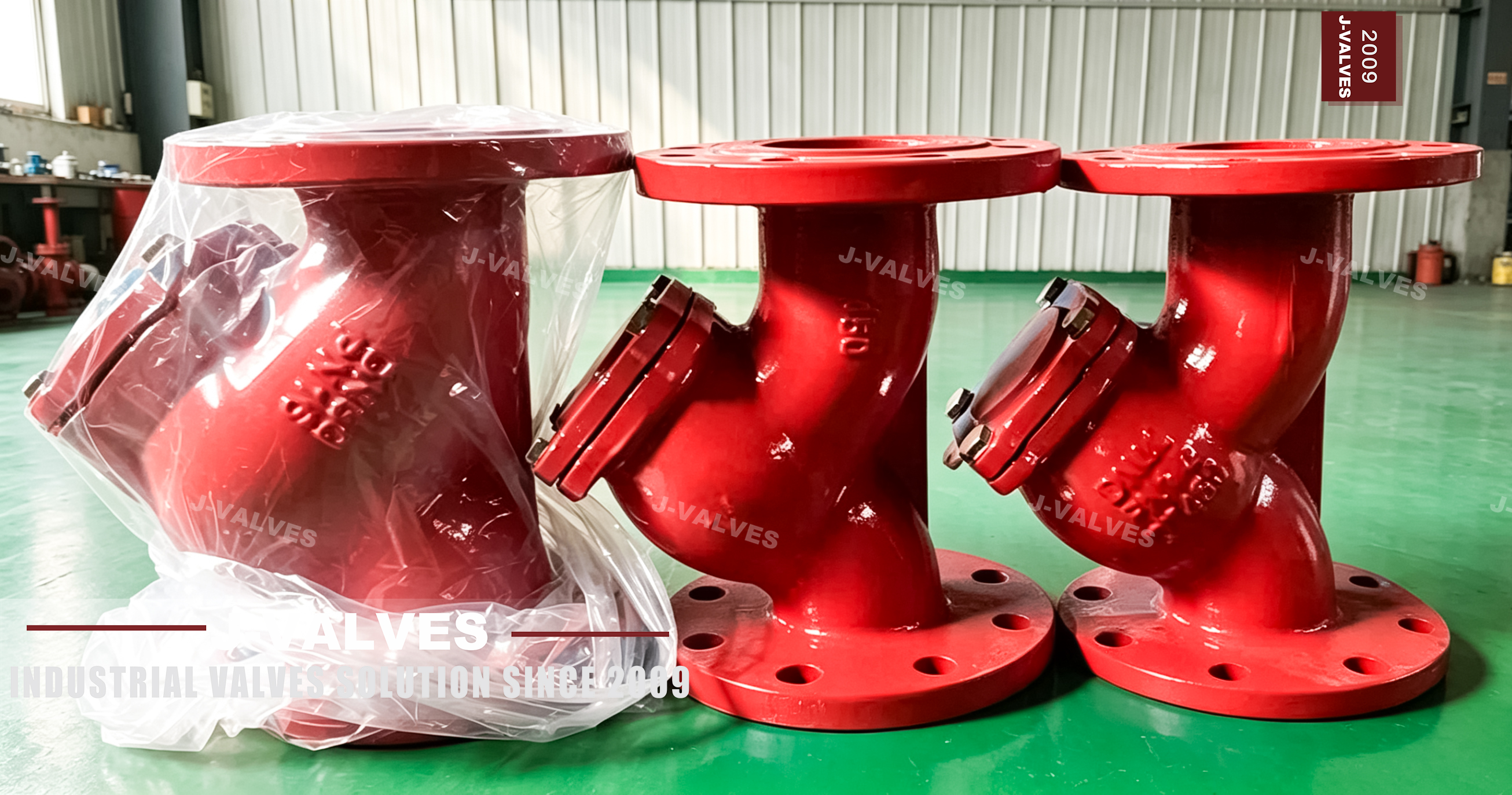

In industrial piping systems, the Y-type strainer is one of the most common and essential line protection devices. Its job is simple but critical: remove debris and protect pumps, valves, instruments, and downstream equipment. But once the system enters high-pressure service, many standard strainers begin to show their limits.
The most common issue is not filtration efficiency. It is pressure resistance.
Under sustained high pressure, temperature swings, pressure spikes, and frequent start-stop cycles, a standard Y-type strainer may suffer from body deformation, sealing instability, flange leakage, or even housing failure. That is why thickened-body Y-type strainers are often chosen for severe operating conditions.
Standard models are usually designed for general-purpose applications with moderate pressure and stable operating conditions. In a high-pressure pipeline, however, the body experiences much more complex stress.
To keep costs and weight down, standard bodies often have limited wall thickness. Under continuous internal pressure, this can reduce structural safety margin and increase the risk of long-term damage.
The Y-shaped geometry naturally creates transition areas where stress tends to concentrate. If the wall thickness is not sufficient, these zones become weaker points under pressure.
High pressure affects not only the body but also the flange faces, bolts, and gaskets. If the body stiffness is not strong enough, sealing reliability can drop, leading to leakage.
Pump discharge lines, compressor lines, steam systems, and other dynamic applications often create pressure pulsation. Standard strainers may not handle these repeated shocks well over time.
A thickened-body strainer is more than a “heavier” version of the same product. It is an upgraded design aimed at improving pressure safety, rigidity, fatigue resistance, and long-term stability.
The most direct benefit is a larger structural margin. The body can better withstand internal pressure, transient spikes, and thermal stress without premature failure.
High pressure does not always cause sudden failure. More often, it slowly changes the body shape over time. A thicker body helps maintain geometry and flow path stability.
Many industrial failures come from repeated pressure cycles rather than a single overload. A thickened body reduces stress accumulation and improves fatigue life.
When the body stiffness is higher, flange compression and gasket performance remain more stable, which reduces the chance of micro-leakage.
Thickened-body strainers are more suitable for steam, oil and gas, chemical service, heat-transfer systems, pump protection lines, and other demanding applications.
It is a mistake to think that “thicker is always better.” A reliable high-pressure Y-type strainer depends on several design factors working together.
If the material does not have enough strength, toughness, or corrosion resistance, extra wall thickness alone will not guarantee performance.
Even with a thicker body, poor transitions, weak drain-port design, or bad flange geometry can still create stress concentration.
Casting quality, machining accuracy, welding quality, and heat treatment all affect the final performance of the product.
Some products look heavy-duty but are not truly validated for high-pressure operation. Always verify the actual pressure class and test data.
A thickened-body model is usually the better choice when your system has one or more of these conditions:
High operating pressure with frequent fluctuation
Noticeable temperature changes
Frequent start-stop cycles
Dirty media with particles or abrasive solids
Installation at pump discharge, compressor discharge, or critical main lines
Strict requirements for uptime and leakage control
In these cases, a standard model may appear cheaper at first, but a thickened body often lowers total lifecycle cost by reducing maintenance and downtime.
Before buying, do not only ask for the price. Ask whether the strainer can run safely and consistently in your system.
Make sure the rated pressure and operating temperature match your actual service conditions.
A credible supplier should provide body thickness, material grade, and structural information, not only a product photo.
Hydrostatic test reports, material certificates, and inspection records help confirm manufacturing reliability.
A high-pressure strainer should still be easy to clean, inspect, and service in the field.
Choosing a Y-type strainer for high-pressure systems is not just about connection size or installation fit. It is about pressure rating, material strength, body rigidity, sealing stability, and long-term reliability.
Standard models are suitable for general service. Thickened-body strainers are the better option when the process becomes truly demanding.
For industrial users who value uptime, safety, and lower maintenance risk, a thickened body is not just an upgrade. It is often the right engineering choice.
Because their body thickness, rigidity, and fatigue resistance are often limited, which increases the risk of deformation and leakage.
Usually yes, but only when the material, structure, and manufacturing quality are also well designed.
Pressure class, temperature range, material grade, body thickness, and end connection type all matter.
High-pressure lines, steam systems, pulsating systems, corrosive media, and pump discharge lines are typical examples.
