DBB stands for Double Block and Bleed. In pipeline valve practice, it describes an isolation function rather than simply the number of balls inside the body. A DBB valve has two seats that block pressure from the two respective sides when the valve is closed. The valve cavity also has a provision for bleeding, draining, venting, or monitoring so that operators can obtain additional evidence of the closed-valve condition.
The term “dual-ball” refers to the physical configuration. If a valve contains two ball elements, the two isolation units may create a longer or more segmented isolation path. However, the product name alone cannot prove the seat-loading direction, cavity behavior, bleed capacity, or test performance. Those points should be confirmed with the general arrangement drawing, sectional drawing, seat design description, and type-test documentation.
DBB should not be marketed as an unqualified statement that the valve provides “simultaneous double sealing in every direction.” DBB and DIB describe different seat-loading concepts. The applicable definitions and test requirements should be checked against the current API 6D edition or another standard specified by the project.
A reduced-bore ball valve may have end connections that are larger than the passage through the ball or body. The end connection determines how the valve joins the pipeline; the actual bore directly affects flow area, velocity, pressure drop, and pigging conditions. Two valves with the same end size can have different flow behavior when their actual bores are different.
Selection factor | What should be verified? |
Actual bore | The body passage, ball port, and inside diameter of the adjacent pipe. Do not estimate flow from the flange or connection size alone. |
Flow and pressure drop | Medium density, viscosity, operating flow, temperature, pressure, and the pressure-drop limit in the project. Request a manufacturer calculation or selection sheet when needed. |
Pigging and solids | Whether the line requires pig passage and whether the medium contains solids, wax, crystals, or deposits. A reduced bore may affect the cleaning and flushing plan. |
End connection | Connection type, pressure class, flange drilling or weld bevel, face-to-face dimension, and available installation space. |
Reduced bore is not automatically a quality disadvantage. It can be an engineering choice that helps match a particular line configuration or reduce valve size and weight. The choice should be based on pressure drop, pigging, draining, flushing, and maintenance requirements. If full bore is required, it must be stated in the specification rather than assumed from the word “ball valve.”
The product name supplied for this project includes “10,000 PSI.” That value may be used as a model or search term after it has been confirmed by the nameplate and datasheet. It should not, by itself, be presented as the maximum allowable working pressure for every temperature, material, medium, or operating condition.
A pressure-temperature rating is normally limited by a combination of material group, design pressure class, operating temperature, end connection, seats and seals, bolting, and the weakest pressure-containing or pressure-controlling component. ASME B16.34 can be used as a reference point for applicable valve design, material, pressure-temperature rating, and inspection requirements, but citing a standard does not prove that a specific valve is certified to it.
Class, PN, and a product pressure label are not interchangeable terms. They may be based on different reference temperatures, dimensional systems, and flange rules. A technical article should identify the actual rating system and direct readers to the complete pressure-temperature table instead of treating one pressure number as a universal working-pressure limit.
Material selection for a high-pressure valve should not stop at general terms such as “carbon steel,” “stainless steel,” or “corrosion-resistant alloy.” The body, bonnet, ball, stem, seats, seals, gaskets, and bolting may use different grades. Their mechanical properties, corrosion resistance, low-temperature performance, and pressure-temperature ratings may not be the same.
If the project involves sour service or hydrogen sulfide, verify the project material restrictions and any applicable NACE/ISO 15156 requirements. A similar material name is not enough to claim suitability for sour service.
Low-temperature service requires a review of the body, bonnet, bolting, seats, seals, extended bonnet design, and the specified low-temperature tests. One component’s low-temperature capability does not qualify the complete valve.
Low-temperature service is not the same as cryogenic service. LNG or liquid nitrogen applications require dedicated materials, geometry, testing, and insulation arrangements. A low-temperature steel grade or a seal name alone is not evidence of cryogenic suitability.
PTFE, reinforced PTFE, PEEK, elastomers, and metal seats have different temperature and media-compatibility limits. The final limits must come from the seal supplier’s data and the project specification.
If the project requires antistatic continuity, fire-safe design, fugitive-emission control, a buried-service extension, or a special coating system, those requirements should be written into the procurement specification and verified through traceable records. A product photograph cannot replace that evidence.
When the technical conditions are suitable, a high-pressure DBB reduced-bore ball valve may be considered for the following isolation duties:
Oil and gas gathering and station piping: isolation of process sections, transfer branches, filters, or metering units.
High-pressure process piping: isolation of both sides of a line when the project requires cavity bleeding or pressure monitoring before maintenance.
Manifolds and wellhead-related piping: only after checking medium, pressure, temperature, hydrogen sulfide exposure, erosion, solids, and operating frequency.
Systems requiring verifiable isolation: the cavity bleed connection, discharge direction, vent or drain piping, pressure indicator, and monitoring arrangement should be coordinated with the site safety procedure.
Ball valves are generally valued for quick shutoff and a short operating path. A standard ball valve is not automatically a continuous control valve. High differential pressure throttling may cause noise, erosion, flashing, or cavitation. If continuous flow control is required, a dedicated control valve or a solution explicitly recommended by the manufacturer should be evaluated.
Comparison | DBB | DIB |
Main concept | Two seats block pressure from the two respective ends, with a cavity bleed or monitoring provision. | Two seats provide independent isolation against pressure from the same pressure source. |
Engineering question | Can the upstream and downstream sides be isolated, and can the cavity condition be checked after closure? | How do the seat directions and cavity-pressure behavior work when pressure is applied from either side? |
Procurement evidence | Confirm seat direction, bleed connection, pressure tests, and functional tests against the project standard. | Confirm the specific DIB type, seat direction, limitations, and type-test evidence against the current applicable standard. |
Product pages should not use DBB and DIB as interchangeable marketing labels. They should also avoid the unqualified claim that DBB automatically provides two-way simultaneous sealing under every pressure condition.
To receive a verifiable technical proposal, the inquiry package should include at least the following information:
Nominal size, end connection type, end pressure class, and required face-to-face or end-to-end dimension;
Design pressure, operating pressure, design temperature, operating temperature, and the required pressure-temperature basis;
Medium, phase, density, viscosity, corrosiveness, solids, and sour-service status;
Full-bore or reduced-bore requirement, allowable pressure drop, flow range, and pigging requirements;
DBB or DIB function, seat direction, cavity bleed or drain arrangement, and site discharge boundary;
Grades or project material requirements for the body, ball, stem, seats, seals, gaskets, and bolting;
Manual handwheel, gearbox, pneumatic, hydraulic, or electric actuation; failure position and torque data;
Inspection, pressure testing, leakage acceptance, NDE, material certificates, and traceability requirements;
Fire-safe, fugitive-emission, antistatic, low-temperature extension, coating, or other special-service requirements;
Applicable standard editions and the complete project documentation schedule.
Delivery quality is not established by appearance alone. Depending on the contract scope, the supplier should provide traceable material certificates, dimensional inspection records, pressure-test records, leakage-test records, and required NDE reports. Test methods and allowable leakage levels should follow the project-specified API 598, ISO 5208, API 6D, or other applicable document. A technical article should not invent a test pressure or test multiplier that has not been confirmed.

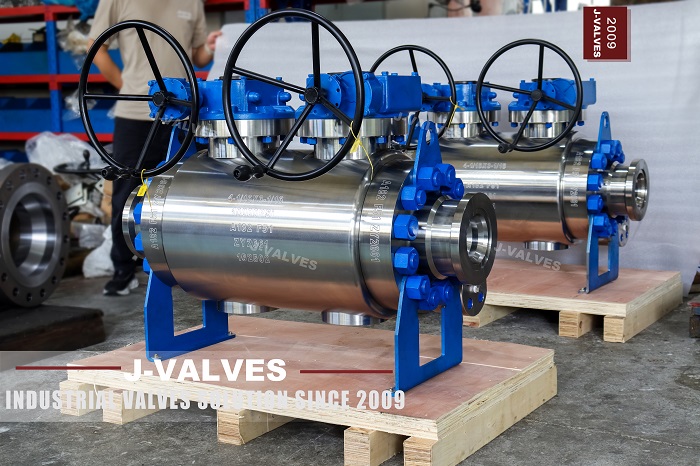

Before installation, verify the valve orientation, end connections, piping stress, support arrangement, operator clearance, and vent or drain routing. If the support and handwheel arrangement visible in the supplied photograph is used in an actual installation, it should be checked against valve weight, pipe loads, and the maintenance path. For a valve with cavity bleeding, the collection, depressurization, and safe disposal of the discharged medium should be part of the operating procedure.
During operation and maintenance, follow the project procedure for checking position indication, operating torque, seat sealing, cavity pressure changes, bleed-port condition, and external leakage. Before any pressurized intervention, complete isolation, depressurization, and a documented risk assessment.
DBB means Double Block and Bleed. It describes two seats that block pressure from the two respective sides, together with a cavity bleed or monitoring function. It describes a function, not simply the number of balls.
No. Dual-ball describes a physical arrangement. DBB capability must be confirmed through the seat directions, cavity connections, bleed arrangement, and test documentation.
It depends on the pig dimensions, ball port, body passage, adjacent pipe ID, and the project pigging procedure. The end connection size alone is not enough to answer the question.
Not automatically. Verify the complete pressure-temperature rating against the actual materials, temperature, pressure class, end connections, seals, and weakest component.
It should normally be treated as an isolation device. Continuous throttling at high differential pressure can cause noise, erosion, flashing, or cavitation. Use it for throttling only when the manufacturer and project design explicitly permit it.
Depending on the contract, request the datasheet, general arrangement and sectional drawings, material certificates, dimensional inspection, pressure and leakage test records, and required NDE, certification, and traceability documents.
