Reliable Choice for High‑Temperature & High‑Pressure Service: Design Advantages of 24" 600LB WC6 Swing Check Valve

In process industries such as petrochemical plants, thermal power stations and oil‑gas transmission systems, piping working under high‑temperature and high‑pressure conditions places strict requirements on check valves. The core function of a check valve is to prevent medium backflow and protect critical equipment like pumps and compressors from reverse flow damage. Valve failure may result in unexpected shutdown, medium leakage and even safety hazards.

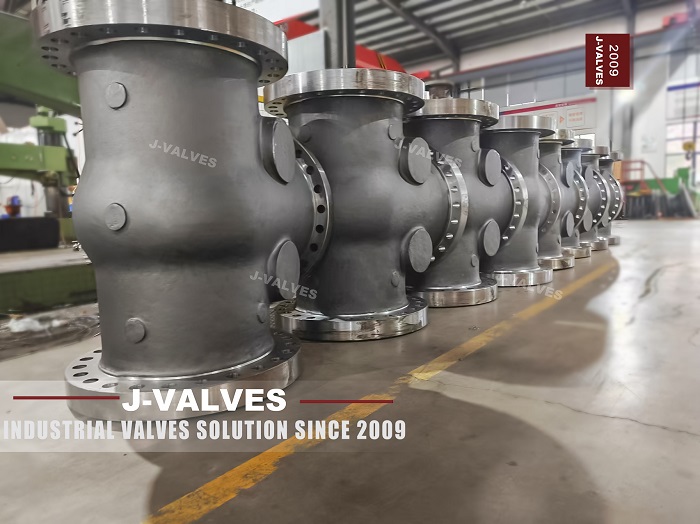

The 24" 600LB WC6 swing check valve is a mainstream selection for large‑bore high‑temperature high‑pressure pipelines. Founded in 2009, J‑VALVES specializes in industrial valve manufacturing. We optimize material formula, body casting structure and sealing performance for swing check valves working under harsh service conditions, delivering long‑term anti‑backflow solutions. The attached photo shows batch‑completed large‑bore WC6 swing check valves ready for further tests inside our workshop.

I. What is WC6 Material and Why It Suits High‑Temp High‑Pressure Working Conditions

 Core Properties of WC6 Chromium‑Molybdenum Cast Steel

WC6 is a Cr‑Mo alloy cast steel under ASTM A217 specification, widely adopted for high‑temperature valve applications. Chromium‑molybdenum alloy improves high‑temperature strength and creep resistance, enabling the valve body to withstand thermal cycling from hot process media.

• Service range: High‑temperature steam, hot oil and thermal process fluid, resistant to creep deformation under sustained heat;

• Pressure rating match: Class 600 for heavy‑duty piping, suitable for 24‑inch large‑bore pipeline load;

• Compare with WCB carbon steel: WCB carbon steel is mainly used for ambient‑to‑moderate temperature service. WC6 Cr‑Mo steel delivers far better mechanical performance and thermal‑fatigue resistance above 425℃, ideal for power plants, hydro‑processing units and hot oil‑gas pipelines.

Note: WC6 Cr‑Mo steel valves require precise casting and heat‑treatment procedures. Improper heat treatment may cause brittleness and pressure‑bearing risks. Qualified manufacturers must strictly follow ASTM A217 heat‑treatment standards.

II. Key Structural Advantages of 24" 600LB Large‑Bore Swing Check Valve

1. Swing‑type disc for high‑flow pipeline

The swing‑type disc swings open under positive medium flow, offering full bore passage and low flow resistance. For 24‑inch large‑bore pipelines with huge flow volume, swing check valves create much less pressure drop compared with lift‑type check valves and will not obstruct fluid transportation.

Once flow velocity drops and reverse backflow occurs, the disc closes against seat by its own weight plus reverse medium pressure, blocking backflow and protecting upstream pumps and machinery.

2. Heavy‑duty integrated casting body for Class 600 pressure rating

As shown in workshop photo, the valve body features sufficient wall thickness with ASME B16.5 standard flanges. Body design complies with ASME B16.34 pressure‑temperature rating. Class 600 requires robust construction to handle high pressure, together with pressure derating under high temperature.

Integral casting minimizes potential leakage risks caused by welding joints. Process plugs are reserved during casting while maintaining overall body strength, suitable for continuously operated industrial pipelines.

3. Optimized sealing and anti‑shock performance

In high‑temperature high‑pressure piping, thermal cycles may cause erosion on seating surfaces. Hardfacing overlay is applied on sealing surfaces to resist fluid erosion and cavitation. Reinforced hinge structure for large‑size disc mitigates impact during opening‑closing cycles, avoiding seat damage caused by disc slamming and extending service life.

III. Typical Application Scenarios for 24" 600LB WC6 Swing Check Valve

1. High‑temperature steam pipelines in thermal power plants: boiler outlet and auxiliary steam piping for anti‑backflow protection

2. Petrochemical refineries: hydro‑processing and thermal cracking process lines with hot oil and steam

3. Oil‑gas process stations: large‑bore high‑temp high‑pressure pipelines to prevent backflow damaging pumps

4. Coal‑chemical industry high‑temperature high‑pressure process piping

Selection Reminder: Swing check valves are not recommended for extremely low flow rate conditions. For pipelines with dramatic flow fluctuation, damping accessories can be equipped to mitigate water hammer effect.

IV. Manufacturing & Quality Control at J‑VALVES

As an industrial valve manufacturer since 2009, J‑VALVES implements strict quality control for WC6 high‑alloy valves:

1. Spectral analysis for raw casting material to verify WC6 chemical composition

2. Standard heat‑treatment to guarantee mechanical properties of Cr‑Mo steel

3. NDT non‑destructive inspection to eliminate casting defects

4. Hydro‑shell test and seat tightness test complying with API 6D requirements

5. Full inspection for finished large‑bore valves, as shown in workshop batch production, before delivery to project sites.

V. Conclusion

Thanks to WC6 Cr‑Mo steel’s outstanding high‑temperature creep‑resistance, plus full‑bore swing‑type structure and heavy‑duty pressure‑rated casting body, 24" 600LB WC6 swing check valve becomes a reliable anti‑backflow device for large‑bore high‑temperature high‑pressure pipelines.

When performing valve selection, not only size and pressure class, but also medium temperature, flow velocity and water‑hammer risk shall be fully considered. If you are searching for high‑temperature high‑pressure check valve solutions, contact J‑VALVES for technical support and custom quotation.
