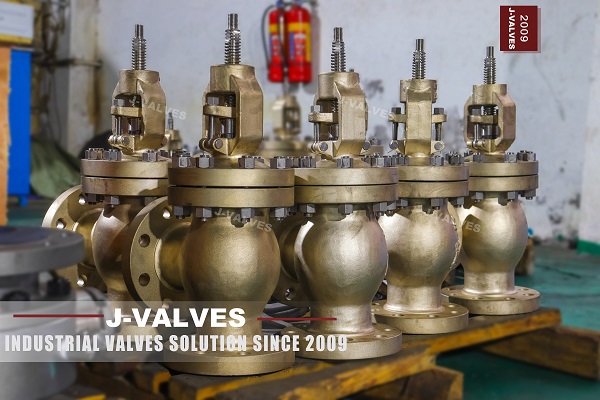

In industrial piping systems where precise flow regulation and reliable shut-off are required, Angle Globe Valves play a critical role. Unlike conventional straight-pattern valves, angle globe valves are designed to change flow direction by 90 degrees while maintaining excellent throttling performance and pressure control.
J-VALVES Angle Globe Valves, engineered in compliance with API 623, API 598, and ASME B16.34 standards, are widely used in oil & gas, petrochemical, power generation, and marine applications. Their optimized flow path, robust construction, and superior sealing design make them a preferred solution for demanding industrial environments.
The angular body structure reduces turbulence and pressure drop compared to traditional globe valves with additional fittings. This results in:
Higher flow efficiency
Reduced energy loss
Improved system stability
Angle globe valves are ideal for applications requiring precise flow adjustment. J-VALVES designs ensure stable performance even under fluctuating pressure conditions.
Manufactured according to ASME B16.34, J-VALVES angle globe valves are suitable for:
High-pressure steam systems
Thermal power plants
Refinery process lines
Offshore utility systems
Depending on service conditions, J-VALVES provides:
Metal-to-metal seating for high-temperature service
Soft-seated options (PTFE, graphite) for tight shut-off
Low leakage performance compliant with API 598 testing standards
The 90-degree flow design eliminates the need for additional pipe elbows, reducing:
Installation cost
Space requirements
Welding points and potential leakage risks
J-VALVES Angle Globe Valves are designed and tested according to international standards:
API 623 – Steel Globe Valves for General and High Temperature Service
API 598 – Valve Inspection and Pressure Testing
ASME B16.34 – Valve Design, Materials, and Pressure-Temperature Ratings
ASME B16.5 / B16.47 – Flange compatibility
These standards ensure consistent quality, safety, and global applicability.
| Feature | Angle Globe Valve | Straight Globe Valve |
Flow Resistance | Lower | Higher |
Installation Space | Compact | Larger footprint |
Pressure Drop | Reduced | Higher |
Pipeline Complexity | Simplified | Requires extra elbows |
Efficiency | High | Moderate |
J-VALVES Angle Globe Valves are widely used in:
Steam control systems
Boiler feedwater regulation
High-temperature pressure lines
Refinery process control
Gas throttling systems
Pipeline pressure regulation
Chemical flow control
Reactor feed systems
Corrosive media handling
Utility systems
Cooling water flow control
High-corrosion environments
Since 2009, J-VALVES has specialized in manufacturing high-performance industrial valves with a focus on reliability and customization.
Precision CNC machining ensures accurate body geometry and sealing surface quality for consistent performance.
Every valve undergoes:
Hydrostatic testing
Shell strength testing
Seat leakage testing
Dimensional inspection
Available materials include:
Carbon steel (WCB, WCC)
Stainless steel (304, 316)
Alloy steel (F11, F22)
Corrosion-resistant alloys for severe service
J-VALVES provides tailored solutions based on:
Pressure class (Class 150–2500)
Temperature requirements
Flow conditions
Special trim materials
J-VALVES Angle Globe Valves were installed in high-pressure steam lines, providing stable throttling performance and long-term durability under continuous thermal cycling.
In a large refinery project, angle globe valves were used for hydrocarbon flow regulation, improving process stability and reducing pressure losses.
Corrosion-resistant angle globe valves were deployed in seawater cooling systems, ensuring reliable operation under harsh marine conditions.
J-VALVES Angle Globe Valves deliver superior flow performance through optimized angular design, strong throttling capability, and compliance with API and ASME standards. Their compact structure, reduced pressure loss, and reliable sealing performance make them an excellent choice for power generation, oil & gas, petrochemical, and offshore applications.
With over a decade of engineering experience, advanced manufacturing capabilities, and proven global project references, J-VALVES continues to provide high-quality angle globe valve solutions that enhance efficiency, safety, and long-term operational reliability.
