Globe valves are widely used in industrial piping systems for precise flow control and reliable shut-off in various applications, including oil and gas, chemical processing, power generation, and water treatment. While valve body materials, seats, and stems are critical for performance, the bonnet design also plays a crucial role in ensuring safety, ease of maintenance, and long-term operational reliability.
The bonnet is the upper portion of a globe valve that covers the valve stem and internal components. It serves several key functions:
Encasing and protecting the valve stem and packing
Providing a pressure-containing closure for the valve body
Supporting the actuator or handwheel for valve operation
Allowing access for maintenance, repair, or stem replacement
The choice of bonnet design affects sealing performance, maintenance convenience, and pressure handling capability.

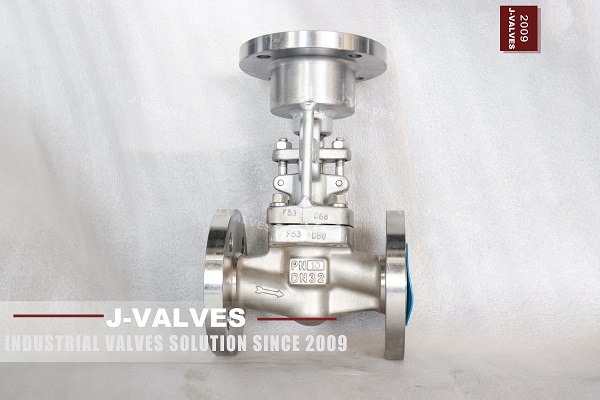

The bolted bonnet is the most commonly used design in industrial globe valves. It is secured to the valve body with bolts, creating a removable assembly.
Advantages:
Easy access for maintenance and inspection
Compatible with a wide range of pressures and temperatures
Allows for packing or seat replacement without removing the valve from the pipeline
Applications:
Bolted bonnets are suitable for general industrial service, including water, steam, and oil pipelines where routine maintenance is anticipated.
In a welded bonnet design, the bonnet is permanently welded to the valve body. This configuration is often used in high-pressure or high-temperature applications.
Advantages:
Maximum mechanical strength and leak-proof performance
Eliminates the risk of bolt loosening under vibration or thermal cycling
Ideal for critical process lines and long-term installations
Applications:
Welded bonnets are typically found in chemical plants, high-pressure steam systems, and offshore or subsea installations.
Threaded bonnets use mechanical threads to secure the bonnet to the valve body. This design is often used in smaller globe valves or low-pressure systems.
Advantages:
Compact and lightweight
Economical for small-diameter valves
Easy installation without welding or bolting equipment
Applications:
Threaded bonnets are commonly applied in instrumentation lines, HVAC systems, and small utility pipelines.
The pressure-seal bonnet is designed to improve sealing performance as the internal pressure increases. The higher the internal pressure, the tighter the seal between the bonnet and the valve body.
Advantages:
Excellent performance under high-pressure conditions
Reduced risk of leakage at elevated pressures
Commonly used in high-temperature steam service
Applications:
Pressure-seal bonnets are widely used in power plants, high-pressure steam lines, and industrial process pipelines requiring reliable sealing under extreme conditions.
When selecting a bonnet design for a globe valve, engineers should evaluate:
Operating Pressure: Higher pressures may require welded or pressure-seal bonnets.
Temperature Range: High temperatures can affect gasket performance and thermal expansion; pressure-seal or welded bonnets are preferred.
Maintenance Requirements: Bolted bonnets allow easier access for routine maintenance.
Fluid Type: Corrosive or abrasive fluids may require specialized materials and sealing methods.
Valve Size: Smaller valves often use threaded bonnets, while larger valves use bolted or welded designs.
The bonnet design is a critical consideration when specifying industrial globe valves. Bolted bonnets offer ease of maintenance, welded bonnets provide maximum strength, threaded bonnets are compact and economical, and pressure-seal bonnets excel in high-pressure, high-temperature applications. By carefully evaluating operating conditions, maintenance requirements, and process media, engineers can select the most suitable bonnet design to ensure reliable, long-term performance in industrial piping systems.
