Gate Valves Vs. Globe Valves: Application Scenarios in Water Supply And Cooling Systems

Gate Valves: Water Supply Systems

Design and Operation

• Structure: Gate valves feature a sliding gate that moves vertically to control fluid flow. When fully open, the gate is completely out of the flow path, allowing for unrestricted flow.

• Operation: Gate valves are designed for on-off control, providing a tight seal when closed. They are not typically used for throttling or regulating flow.

Advantages

• Full Bore Flow: When fully open, gate valves offer minimal pressure drop, making them suitable for systems where flow rate is critical.

• Tight Sealing: Gate valves provide excellent sealing capabilities, ensuring minimal leakage when closed.

• Durability: The design of gate valves allows for long-term use with minimal wear and tear.

Application in Water Supply Systems

• Main Line Control: Gate valves are often used in the main lines of water supply systems due to their ability to handle high flow rates and provide reliable shutoff.

• Fire Protection Systems: In fire protection systems, gate valves are used to control the flow of water to sprinklers and hydrants, ensuring that water can be quickly shut off in case of maintenance or emergencies.

• Pump Stations: Gate valves are used in pump stations to control the flow of water from wells, reservoirs, or other sources to the distribution network.

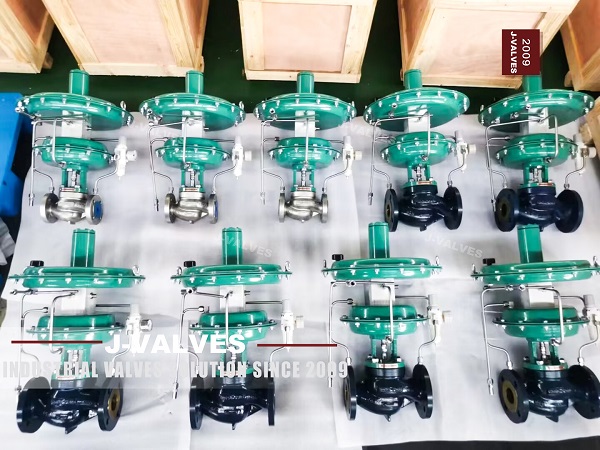

Globe Valves: Cooling Systems

Design and Operation

• Structure: Globe valves feature a spherical body with a movable disc that can be positioned to control fluid flow. The disc moves perpendicular to the flow path, allowing for precise control of flow.

• Operation: Globe valves are designed for throttling and regulating flow. They provide precise control over fluid flow, making them suitable for applications where flow regulation is necessary.

Advantages

• Flow Regulation: Globe valves offer excellent control over fluid flow, allowing for precise adjustments.

• Pressure Control: They can handle a wide range of pressures and provide reliable pressure control.

• Maintenance: Globe valves are relatively easy to maintain and repair, with accessible components.

Application in Cooling Systems

• Chilled Water Systems: In chilled water systems, globe valves are used to regulate the flow of water to and from chillers, ensuring that the system operates efficiently and maintains the desired temperature.

• Cooling Towers: Globe valves are used in cooling towers to control the flow of water, preventing overflow and ensuring proper water distribution.

• Heat Exchangers: In heat exchangers, globe valves regulate the flow of cooling water, ensuring efficient heat transfer and maintaining system performance.

Comparative Analysis

Key Differences
