Globe valves are widely used in industrial piping systems for regulating flow, controlling pressure, and providing precise shut-off capabilities. Correct pressure rating selection is critical to ensure system safety, longevity, and regulatory compliance. Engineers and procurement specialists must consider applicable standards, particularly ANSI (American National Standards Institute) and API (American Petroleum Institute) specifications, when selecting globe valves for industrial applications.
A valve's pressure rating represents the maximum allowable pressure the valve can safely handle at a specified temperature. Globe valves, often used in high-pressure and high-temperature systems, must be selected according to their rating to prevent mechanical failure or leakage. Key considerations include:
Design Pressure: Maximum pressure the valve body can withstand.
Operating Pressure: Actual pressure in the system during normal operation.
Temperature Impact: Pressure rating often decreases as operating temperature rises due to material strength limits.
Fluid Type: Corrosive, erosive, or high-viscosity fluids may affect material selection and rating.
ANSI pressure classes define valve pressure-temperature limits, allowing engineers to match valve ratings with system conditions. Common ANSI classes include 150, 300, 600, 900, 1500, and 2500.
Class 150: Suitable for low-pressure applications (up to ~285 psi at 100°F), commonly used in water, HVAC, and light chemical processes.
Class 300: Medium-pressure applications (~740 psi at 100°F), often used in steam and gas lines.

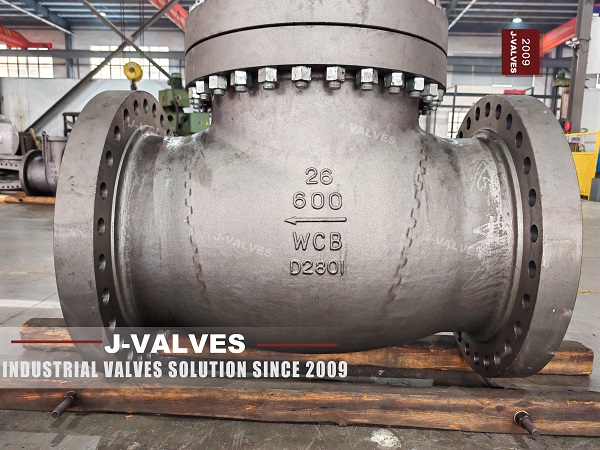

Class 600-1500: High-pressure industrial systems, including chemical plants, refineries, and power generation.
Class 2500: Extreme high-pressure applications, usually in specialty or offshore pipelines.
Temperature Consideration: Each class has a derating curve for elevated temperatures, as per ANSI B16.34. For instance, a Class 150 valve may only handle 150 psi at 400°F instead of 285 psi at 100°F.
API standards, particularly API 600 and API 602, provide guidelines for valve design, materials, testing, and pressure ratings in oil, gas, and petrochemical industries.
API 600: Covers steel gate, globe, and check valves suitable for high-pressure oil and gas applications.
API 602: Focuses on compact, small-diameter globe valves with defined pressure-temperature limits.
Pressure-Temperature Tables: API provides tables for allowable working pressures for specific materials and temperature ranges.
Testing Requirements: Includes hydrostatic and seat leakage tests to verify compliance with rated pressure.
Valve material selection significantly impacts pressure rating. Common globe valve body materials include:
Carbon Steel (WCB, A105): Widely used; suitable for moderate to high-pressure applications.
Stainless Steel (304, 316, CF8M): Offers corrosion resistance; pressure rating may differ due to lower high-temperature strength.
Alloy Steels (Inconel, Monel): High-temperature and corrosive environments; often required for API-compliant valves in oil and gas.
Metal Seats: Required for high-temperature and high-pressure applications to maintain sealing integrity.
Soft Seats (PTFE, RTFE): Suitable for lower temperatures and pressures; not recommended for steam or high-temperature fluids.
Identify System Conditions: Determine maximum operating pressure, temperature, and fluid characteristics.
Consult ANSI/API Tables: Match system requirements with pressure classes and material limitations.
Consider Safety Margins: Select a valve with a pressure rating 10–25% higher than the system operating pressure.
Check Thermal Derating: Ensure selected valve can handle elevated temperatures without compromising strength.
Verify Material Compatibility: Ensure body, bonnet, and seat materials can withstand both pressure and chemical exposure.
Proper selection of globe valve pressure ratings is essential to maintain safe and efficient industrial operations. ANSI and API standards provide clear guidelines for pressure-temperature limits, testing, and material selection, helping engineers design reliable piping systems. By understanding these standards and carefully evaluating system conditions, engineers can select globe valves that ensure long-term safety, performance, and compliance in demanding industrial environments.
