Large-Diameter Valve Selection: Casting Process of Gate Valves Vs. Lightweight Design of Butterfly Valves

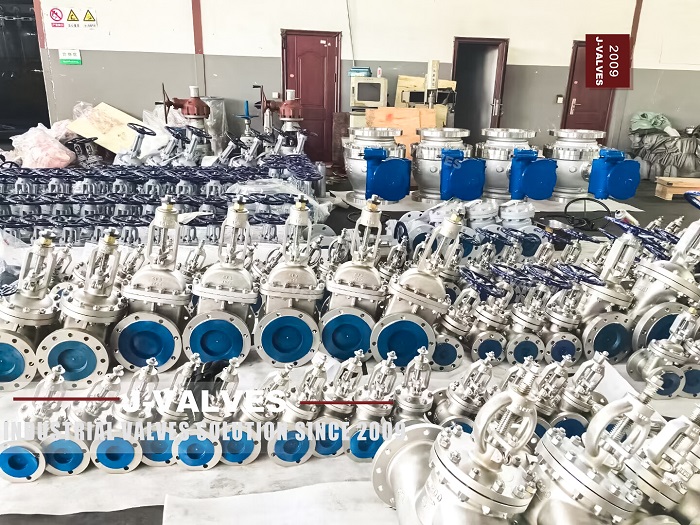

Gate Valves: Casting Process and Advantages

Structure and Function

Gate valves are linear motion valves that use a gate or wedge to control the flow of fluids. They are designed to provide a tight seal and are commonly used in applications requiring full flow and minimal pressure drop. The structure of a gate valve includes a valve body, gate, stem, and seats.

Casting Process

The casting process for gate valves involves several steps to ensure the valve's structural integrity and performance:

1. Mold Preparation: High-quality molds are prepared to ensure precise dimensions and smooth surfaces.

2. Material Selection: Typically, materials such as carbon steel, stainless steel, or alloy steel are used for their strength and durability.

3. Pouring and Solidification: The molten metal is poured into the mold and allowed to solidify. This process requires careful control of temperature and cooling rates to prevent defects.

4. Post-Casting Treatment: The cast valve undergoes heat treatment to relieve internal stresses and improve mechanical properties.

5. Machining and Finishing: The valve is machined to precise tolerances, and surfaces are finished to ensure a tight seal.

Advantages of Casting

• Strength and Durability: The casting process ensures that gate valves have high mechanical strength and can withstand high pressures and temperatures.

• Customization: Casting allows for the production of valves with complex shapes and sizes, making them suitable for a wide range of applications.

• Reliability: The robust design of gate valves ensures reliable performance over long periods, with minimal maintenance required.

Butterfly Valves: Lightweight Design and Advantages

Structure and Function

Butterfly valves are rotary motion valves that use a flat disc mounted on a rotating stem to control the flow of fluids. They are designed to provide quick and efficient flow control and are commonly used in applications requiring frequent operation and space efficiency. The structure of a butterfly valve includes a valve body, disc, stem, and seat.

Lightweight Design

The lightweight design of butterfly valves offers several advantages:

1. Compact Size: Butterfly valves are generally more compact and require less installation space compared to gate valves.

2. Reduced Weight: The lightweight design makes butterfly valves easier to handle and install, reducing labor costs and installation time.

3. Energy Efficiency: The reduced weight and compact size of butterfly valves contribute to lower energy consumption during operation.

Advantages of Lightweight Design

• Ease of Installation: The lightweight and compact design of butterfly valves makes them easier to install, especially in tight spaces.

• Cost-Effectiveness: The reduced material usage and simpler manufacturing process make butterfly valves more cost-effective compared to gate valves.

• Quick Operation: Butterfly valves can be quickly opened and closed, making them suitable for applications requiring frequent operation.

Comparative Analysis

Size and Weight
