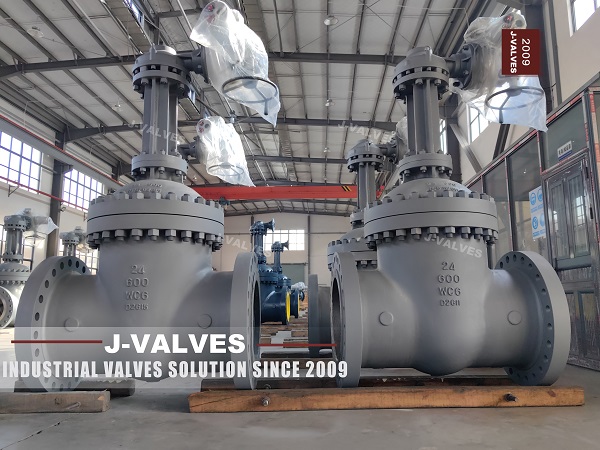

Gate Valves: Design Standards and Industry Norms
Gate valves are linear motion valves that use a gate or wedge to control the flow of fluids. The gate moves perpendicular to the flow direction, allowing for precise control and reliable sealing. When fully open, the gate is retracted into the valve body, providing an unobstructed flow path. This design makes gate valves suitable for applications requiring full flow and minimal pressure drop.
1. API 600: This standard, published by the American Petroleum Institute, specifies the requirements for steel gate valves. It covers design, materials, testing, and marking, ensuring that gate valves meet the necessary safety and performance criteria.
2. ANSI/ASME B16.34: This standard provides comprehensive guidelines for the design, materials, and testing of valves used in various industrial applications. It includes detailed pressure-temperature ratings and dimensional requirements.
3. ISO 5208: This international standard specifies the requirements for industrial valves, including gate valves. It covers design, materials, testing, and marking, ensuring global consistency and compatibility.
• Sealing Performance: Gate valves are known for their excellent sealing capabilities, providing zero leakage when fully closed. This makes them ideal for applications requiring tight shutoff, such as in oil and gas pipelines.
• Pressure and Temperature Ratings: Gate valves are designed to handle high pressures and temperatures, making them suitable for demanding industrial environments.
• Material Selection: Common materials include carbon steel, stainless steel, and alloy steel, chosen for their strength, durability, and resistance to corrosion.
Butterfly Valves: Design Standards and Industry Norms
Butterfly valves are rotary motion valves that use a flat disc mounted on a rotating stem to control the flow of fluids. The disc rotates to open or close the valve, and it remains in the flow path even when fully open. This design allows for quick and efficient flow control, making butterfly valves ideal for applications requiring frequent operation.
1. API 609: This standard specifies the requirements for butterfly valves, covering design, materials, testing, and marking. It ensures that butterfly valves meet the necessary safety and performance criteria.
2. ANSI/ASME B16.34: This standard also applies to butterfly valves, providing detailed guidelines for design, materials, and testing. It includes pressure-temperature ratings and dimensional requirements.
3. ISO 5752: This international standard specifies the requirements for butterfly valves, including design, materials, testing, and marking. It ensures global consistency and compatibility.
• Sealing Performance: Butterfly valves provide good sealing capabilities, but they may not achieve zero leakage like gate valves. They are suitable for applications where some minimal leakage is acceptable.
• Pressure and Temperature Ratings: Butterfly valves are generally designed for lower pressures and temperatures compared to gate valves. However, high-performance butterfly valves can handle higher pressures and temperatures.
• Material Selection: Common materials include cast iron, ductile iron, stainless steel, and various plastics. The choice of material depends on the specific application and operating conditions.
