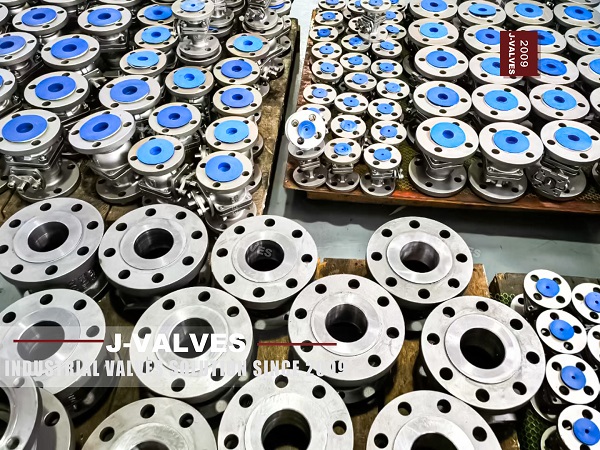

• Design: ASME B16.5 ball valves feature a floating ball with a resilient seat, providing bidirectional sealing.
• Sealing Mechanism: The resilient seat compresses against the ball, ensuring minimal leakage and reliable sealing.
• Materials: Typically made from carbon steel, stainless steel, or alloy steels.
• Testing: Undergo rigorous hydrostatic and pneumatic tests to ensure compliance with sealing standards.
• High-Pressure Applications: Suitable for high-pressure, high-flow environments.
• Quick Shutoff: Ideal for applications requiring rapid flow isolation.
• Corrosion Resistance: Stainless steel options make them suitable for corrosive fluids.
• Design: GB/T 9113 gate valves use a wedge-shaped gate for unidirectional sealing.
• Sealing Mechanism: The gate compresses against the seat, providing excellent tight shutoff.
• Materials: Available in cast iron, carbon steel, stainless steel, or alloy steels.
• Testing: Tested according to GB/T standards to ensure minimal leakage.
• Tight Shutoff: Ideal for applications requiring minimal leakage.
• On-Off Control: Suitable for applications where flow needs to be fully stopped or started.
• Versatility: Available in various sizes and materials for different industrial needs.
Comparative Analysis of Sealing Performance
| Feature | ASME B16.5 Ball Valves | GB/T 9113 Gate Valves |
| Sealing Type | Bidirectional sealing with a resilient seat | Unidirectional sealing with a wedge gate |
| Sealing Material | Resilient seat (e.g., PTFE) | Metal-to-metal or soft-seated |
| Sealing Effectiveness | Excellent sealing with minimal leakage | Excellent tight shutoff with minimal leakage |
| Feature | ASME B16.5 Ball Valves | GB/T 9113 Gate Valves |
| Application | High-pressure, high-flow applications requiring quick shutoff | On-off control applications requiring tight shutoff |
| Industries | Oil and gas, chemical processing, water treatment | Water treatment, chemical processing, oil and gas |
| Maintenance | Low maintenance with fewer moving parts | Higher maintenance due to complex mechanism |
