In critical fluid systems, such as those used in water treatment, oil and gas, chemical processing, and power generation, maintaining fluid integrity is paramount to ensuring system safety, efficiency, and longevity. One of the key challenges in fluid systems is preventing backflow—where fluid flows in the wrong direction, potentially contaminating the system or causing equipment damage. Gate valves play a crucial role in preventing backflow and maintaining the integrity of fluid transport systems.

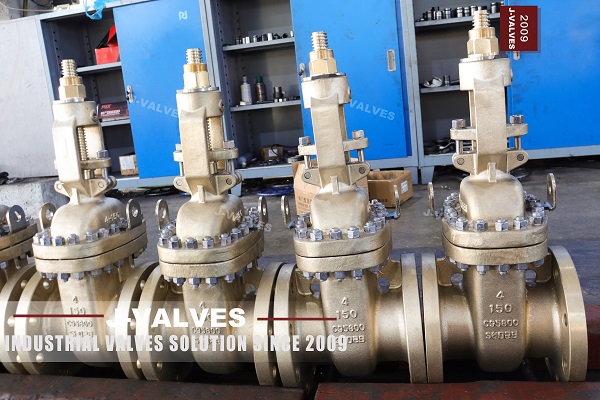

A gate valve is a type of linear motion valve that uses a flat, wedge-shaped gate to control the flow of fluid through a pipeline. The gate is typically made of metal or alloy and is raised or lowered to allow or restrict the passage of fluid. Gate valves are commonly used for on/off control of the flow, meaning they are ideal for applications where the fluid needs to be either fully open or fully closed.
Unlike other valve types such as ball valves or globe valves, gate valves are typically not designed for throttling or flow control but are instead used to provide reliable isolation and shut-off. When the valve is fully open, the gate is completely removed from the flow path, allowing for minimal flow resistance.
Backflow occurs when fluid flows in the opposite direction from the intended flow, which can have serious consequences in critical systems. Backflow can lead to contamination, pressure surges, and even system failure, especially in systems handling hazardous materials or fluids under high pressure. Gate valves are designed to help prevent backflow in the following ways:
Gate valves are typically installed in systems to ensure unidirectional flow, meaning fluid is intended to flow in one direction. When the valve is open, the gate allows fluid to pass through, but if the flow direction is reversed (e.g., due to a pressure surge or a malfunctioning system), the gate’s design helps to block the fluid from flowing backward.
Although gate valves are not inherently designed as check valves (which are specifically made to prevent backflow), their tight shut-off feature provides an additional layer of protection. When the valve is fully closed, it effectively isolates the section of the pipeline and prevents the reverse flow of fluid.
Gate valves are known for their ability to provide a positive shut-off, meaning that when the valve is fully closed, there is a minimal chance for leakage or reverse flow. The flat gate creates a tight seal against the valve seat, ensuring that no fluid can pass through when the valve is in the closed position. This feature is particularly useful in applications where backflow could introduce contaminants or pose safety risks.
For example, in water treatment systems, backflow could contaminate the clean water supply with wastewater or chemicals. By closing a gate valve in the right section of the pipeline, the system can prevent this reverse flow, ensuring that the integrity of the fluid is maintained.
Gate valves often feature resilient sealing materials, such as elastomers or metal-to-metal seating, that provide a strong seal when the valve is closed. This ensures that even under high-pressure conditions, the gate valve can maintain its integrity and prevent fluid from flowing in the wrong direction. The sealing capability of gate valves helps minimize the risks associated with reverse flow and ensures the system operates safely.
The quality of the seat and gate material, along with the design of the valve, plays a crucial role in providing a leak-tight seal that is critical for preventing backflow in sensitive systems.
Gate valves are used across a wide range of industries and applications to prevent backflow and ensure the integrity of fluid systems. Some common areas where gate valves play a crucial role in fluid integrity include:
Water Treatment Plants: In municipal and industrial water treatment facilities, gate valves help isolate sections of the system, preventing contamination in the event of backflow or system failure.
Oil and Gas Pipelines: In oil and gas transportation, gate valves are used to isolate portions of the pipeline and protect against the risk of reverse flow, especially in high-pressure systems where backflow can damage equipment or cause environmental hazards.
Chemical Processing: Chemical plants rely on gate valves to isolate chemicals and ensure that reverse flow does not mix incompatible substances, potentially causing hazardous reactions.
Power Generation: In power plants, gate valves are used to control water, steam, and chemical flow, preventing backflow that could disrupt the system or cause equipment failure.
Food and Beverage Processing: In sanitary fluid systems, such as those used in food and beverage processing, gate valves are used to ensure that backflow does not introduce contaminants into the product flow, ensuring product safety.
Gate valves are essential for maintaining fluid integrity in critical systems by providing the following benefits:
Gate valves are ideal for applications where full isolation is required. When the valve is fully closed, it acts as a reliable barrier to prevent fluid flow, ensuring that the system can be shut down without the risk of backflow. This is crucial for maintaining fluid integrity in processes that handle hazardous or sensitive fluids.
In systems where backflow could lead to contamination, such as water treatment or chemical processing systems, gate valves provide an essential function in preventing reverse flow. By ensuring that fluid flows in the correct direction, gate valves help protect the system from contamination, ensuring that the integrity of the fluid is maintained and the system operates safely.
Backflow can not only contaminate fluids but also damage sensitive equipment, such as pumps, filters, and heat exchangers. Gate valves help isolate and protect these critical components from the damaging effects of reverse flow, ensuring the longevity and efficiency of the entire system.
In systems where pressure fluctuations are common, gate valves can help maintain stability by preventing the unintended flow of fluid. By closing the valve when necessary, operators can isolate sections of the system and control the pressure, preventing backflow from causing sudden pressure surges or system failure.
It’s important to note that while gate valves can prevent backflow by providing a reliable shut-off, they are not the same as check valves, which are specifically designed to allow flow in one direction while automatically preventing reverse flow. Gate valves are typically used for manual control of flow, whereas check valves provide automatic backflow prevention.
In many critical systems, gate valves and check valves work together to ensure fluid integrity. The gate valve can be used to isolate sections of the pipeline and provide positive shut-off, while check valves ensure that backflow is prevented during normal system operation.
Gate valves play an indispensable role in preventing backflow and ensuring fluid integrity in critical systems. Their ability to provide a reliable shut-off, prevent reverse flow, and protect against contamination makes them an essential component in industries such as water treatment, oil and gas, chemical processing, and power generation. By ensuring proper isolation and protecting equipment from damage, gate valves help maintain the safety, efficiency, and longevity of fluid transport systems.
In combination with other valves, such as check valves, gate valves contribute to the overall reliability of fluid systems, ensuring that fluids flow in the intended direction and maintaining the integrity of the system. With their robust performance and simple design, gate valves are an essential tool for any industry that relies on fluid transport and management.
