Gate valves are common fluid control equipment widely used in petroleum, natural gas, chemical, power, municipal and many other industries. As on-off valves, gate valves are mainly used for shutting off and connecting fluids in piping systems, providing efficient and reliable sealing.

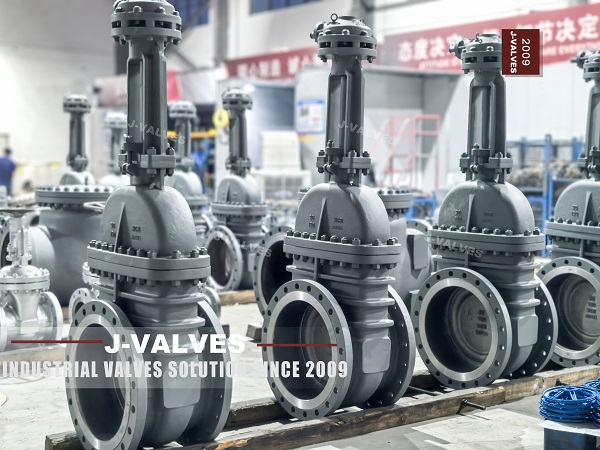

A
gate valve is a valve that opens and closes by means of a vertically moving valve plate, commonly referred to as a “gate”. It is designed to fully stop or start fluid flow in a pipeline, making it suitable for applications requiring fully open or fully closed operation. A key characteristic of gate valves is low flow resistance when fluid passes through, making them ideal for large-flow, low-pressure-drop applications.
The working principle of a
gate valve is based on the vertical movement of the gate.
When the valve is open, the gate is fully retracted, allowing fluid to flow freely. When closed, the gate is moved up or down by the valve stem to fully or partially block the flow path, shutting off the fluid.
Gate valves are typically operated manually or by electric actuators, and often require considerable operating torque, especially in large-size or high-pressure systems. They are mainly used in piping systems where fluid must be completely shut off or fully opened.
Gate Design
The gate of a gate valve is generally made of metal or rubber-covered material, with a sealing structure ensuring reliable tightness in the closed position. When open, the gate does not interfere with fluid flow, reducing wear and extending service life.
Sealing Performance
Sealing surfaces of gate valves usually use metal, rubber or composite materials to ensure effective sealing under high pressure, high temperature and corrosive media. Different environments require different sealing materials: metal sealing for high-temperature or high-pressure conditions, and rubber sealing for low-temperature or low-pressure applications.
Flow Characteristics
Gate valves provide an almost unobstructed opening with minimal flow resistance, making them suitable for large-flow, low-pressure-drop systems. Their flow profile helps reduce pressure loss and ensures efficient pipeline operation.
Body Structure
Gate valvebodies are generally simple and robust, with high mechanical strength to withstand high pressures in piping systems. Common body materials include cast steel, carbon steel, stainless steel and alloy steel.
Valve Stem and Actuation System
Gate valves are typically equipped with a valve stem actuated by a handwheel, gearbox or electric actuator to control the vertical movement of the gate. The stem is designed to withstand high loads, ensuring stability under extreme conditions.
Efficient Fluid Control
When fully open, gate valves offer minimal flow resistance. Compared with other valve types, they have low flow loss and are suitable for high-flow applications.
Excellent Sealing
The sealing system maintains reliable performance in harsh conditions including high pressure, low temperature and corrosive media. Metal and elastic sealing designs ensure reliability across various operating conditions.
Long Service Life
Since the gate has limited contact with the flow path, wear is minimal, making gate valves especially suitable for long-running systems. Metal and composite sealing surfaces further extend service life.
Simple Structure and Easy Operation
Gate valves feature a relatively simple structure and straightforward operation. For standard on-off service, they act quickly and are easy to maintain.
Strong Adaptability
Gate valves can be used in various piping systems, including high-pressure, low-temperature and corrosive fluid systems. They have a wide range of applications, performing particularly well where full on-off control is required.
Applications of Gate Valves
Oil and Gas
In the oil and gas industry,
gate valves are commonly used for fluid isolation in pipelines, especially in frequent on-off applications. They ensure system stability and safety under high-pressure, high-flow conditions.
Chemical Industry
In chemical processing, gate valves control the flow of chemicals. Their excellent sealing and corrosion resistance enable stable performance in aggressive chemical environments.
Power Industry
Steam piping systems in the power industry frequently use gate valves. Capable of withstanding high temperatures and pressures, they are widely applied in power plant cooling systems and steam control.
Water Treatment and Municipal Pipelines
In water treatment and municipal pipelines, gate valves regulate water flow and provide full shut-off. Their simple structure and high reliability make them the preferred valve type for many public infrastructure projects.
Building and HVAC Systems
Gate valves are also widely used in building HVAC systems, especially where large-flow air or water control is needed, ensuring efficient operation of building internal systems.
How to Select the Right Gate Valve?
When selecting a gate valve, the following key factors should be considered:
-
Working Pressure and Temperature Ensure the valve can withstand the pressure and temperature conditions of the piping system. Different body materials suit different pressure and temperature ranges.
-
Fluid Type Based on fluid characteristics such as corrosiveness, viscosity and temperature, select appropriate sealing and body materials to guarantee durability and sealing performance.
-
Pipeline Size and Flow Rate Choose the correct gate valve size according to pipeline dimensions and flow requirements. Valve size must match the pipeline to ensure efficient flow.
-
Operation Mode Determine manual or automatic actuation. Electric or pneumatically actuated gate valves are typically required for high-pressure, large-bore systems.
-
Maintenance Requirements Select valves that are easy to clean, maintain and replace based on usage frequency and system maintenance needs.
Conclusion
With excellent sealing performance, high temperature and pressure resistance, and low flow resistance, gate valves are widely used in fluid control systems across many industries. Choosing the appropriate gate valve ensures efficient and safe operation of piping systems. Gate valves are indispensable critical equipment in petroleum, natural gas, chemical, power, water treatment and many other sectors.
