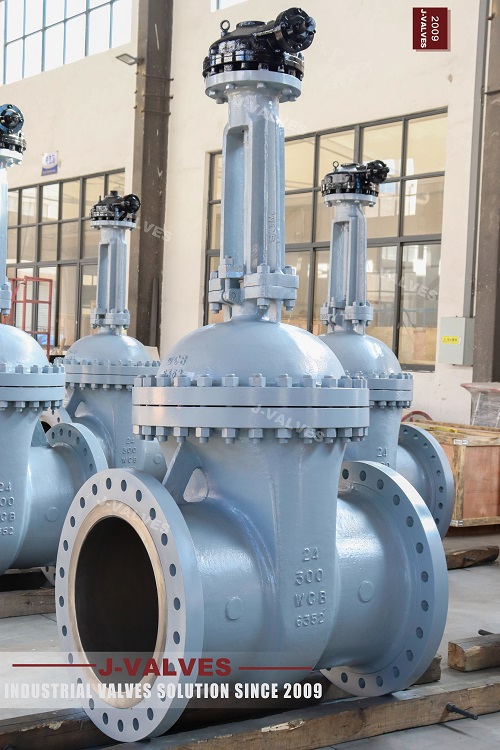

The size of a gate valve is crucial for ensuring proper flow control and system efficiency. The valve size is typically specified in terms of the nominal pipe size (NPS) or diameter (DN). Selecting the correct size involves matching the valve to the pipeline diameter and considering the required flow capacity.
Key Considerations for Valve Size
• Pipeline Diameter: The valve size should match the diameter of the connecting pipeline to ensure proper integration and flow characteristics.
• Flow Requirements: Consider the required flow rate and velocity to determine if a full-bore or reduced-bore valve is more suitable. Full-bore valves offer minimal pressure drop and are ideal for high-flow applications.
• Space Constraints: In applications with limited space, compact valve designs or smaller sizes may be necessary.
Understanding Pressure Ratings
Importance of Pressure Ratings
The pressure rating of a gate valve indicates the maximum allowable working pressure (MAWP) the valve can safely withstand at a specified temperature. Selecting a valve with an appropriate pressure rating is essential for ensuring system safety and preventing failures.
• PN (Pressure Nominal): This is a European standard that specifies the pressure rating in bars. Common ratings include PN16, PN25, PN40, PN63, and PN100.
• Class: This is an American standard that specifies the pressure rating in pounds per square inch (psi). Common ratings include Class 150, Class 300, Class 600, and higher.
Key Considerations for Pressure Ratings
• Operating Conditions: Determine the maximum operating pressure of the system and select a valve with a pressure rating that exceeds this value to ensure safety.
• Temperature Effects: Consider the impact of temperature on the valve's pressure rating. Higher temperatures can reduce the allowable pressure rating, so it's important to select a valve that can handle the combined effects of pressure and temperature.
• System Design: Ensure the valve's pressure rating is compatible with other components in the system, such as pipes, fittings, and pumps.
Selection Process for Gate Valves
1. Identify System Requirements: Determine the pipeline diameter, required flow rate, and operating pressure and temperature conditions.
2. Match Valve Size: Select a valve size that matches the pipeline diameter and meets the flow requirements. Consider full-bore or reduced-bore options based on the application.
3. Evaluate Pressure Rating: Choose a valve with a pressure rating that exceeds the maximum operating pressure. Ensure the valve can handle the combined effects of pressure and temperature.
4. Consider Additional Factors: Evaluate other factors such as material compatibility, corrosion resistance, and actuation requirements.
5. Consult Standards and Documentation: Ensure the valve complies with relevant industry standards and is certified for the intended application.
