Ask three valve suppliers for "an API 600 gate valve, 8 inch, Class 300, WCB" and you will get three quotations that look identical — and three different closure elements. The wedge is the least discussed and most consequential part of a gate valve: it decides whether the valve still opens after a thousand thermal cycles, whether it holds a metal-to-metal seat at 40 bar, and whether the actuator you sized last month is still adequate in year five. This guide explains what the wedge actually does mechanically, why the seat angle matters more than the catalogue suggests, how solid, flexible and split wedges fail in different ways, and the data to put on a request for quotation so the design you intended is the design you receive.

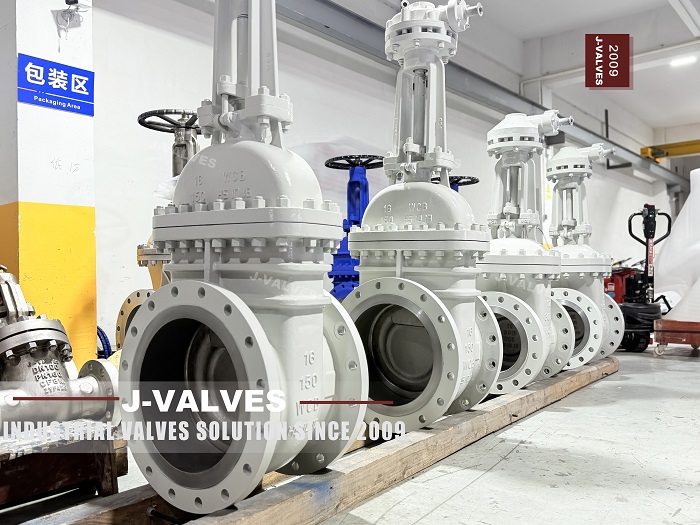

A gate valve is a linear-motion isolation valve: the closure element travels perpendicular to the flow and, when fully retracted, leaves a straight-through bore with almost no pressure loss. That is the easy part. The difficult part is the last few millimetres of travel, where the disc has to generate enough contact stress on two inclined seat faces to stop leakage — from a standing start, at whatever differential pressure the line happens to be at, with a handwheel turned by a human being.
A flat parallel plate cannot do this reliably. At low differential pressure there is little line pressure to push the plate against the downstream seat, and the upstream seat never sees a positive sealing load at all. The wedge solves both problems at once:
It multiplies stem thrust into seating stress. Two inclined faces convert a vertical push into a horizontal normal force on each seat ring, several times larger than the thrust applied.
It stores elastic energy. A properly seated wedge is slightly sprung between the seats. As pressure, temperature and body dimensions move, that stored deflection keeps the seal loaded instead of letting it open on the first pressure fluctuation.
It is self-locking. Within the normal range of friction coefficients the wedge will not back out on its own, so the disc stays seated without continuous actuation force — important for a valve that may sit closed for months.
Those three behaviours are also the source of nearly every gate valve field problem: too much locking force and the valve will not reopen; not enough flexibility and a small distortion of the body breaks the seal. The three standard wedge designs are three different answers to that trade-off. For the wider family of gate valve constructions, see the gate valve product range.
The first thing to settle is what "wedge angle" means in a quotation, because the industry is not consistent. Some documents quote the angle of one sealing face to the valve centreline (a half angle); others quote the included angle between the two faces. The classic API 600 steel gate valve seat angle of 2°52′ per face is therefore the same geometry as an included angle of 5°44′, which is routinely rounded to "a 5° wedge". If a buyer specifies 5° per face while the supplier assumes 5° included, the valve that arrives has seats twice as steep as intended and a different unseating characteristic. State the basis explicitly.
In practice most steel gate valves between Class 150 and Class 2500 sit between 2°30′ and 5° per face. Higher angles are used where unseating is the dominant problem — very high temperature steam, heavy thermal cycling, or large sizes where the actuator has limited breakaway capability.
The mechanics are simple enough to check with a calculator. For a wedge with half angle θ driven in by stem thrust F, with friction coefficient μ on both faces, the normal force on each seat face is:
N = F / [2 (sin θ + μ cos θ)]
Take θ = 2°52′ (sin θ = 0.050, cos θ = 0.999) and μ = 0.15 for hardfaced steel faces:
N = F / [2 (0.050 + 0.150)] = 2.5 F
So a 40 kN stem thrust delivers about 100 kN to each seat face. Spread over a DN 100 seat ring of roughly 118 mm mean diameter and 8 mm face width (about 2,965 mm²), that is a mean seating stress near 34 MPa — the right order for a metal-seated gate valve, which typically needs tens of MPa to close off a lapped face. Two conclusions follow, and both are useful:
The angle is not a large lever on sealing force. Repeating the calculation at 5° per face gives 2.1 F instead of 2.5 F. Anyone claiming that changing the angle by two degrees transforms sealing performance is overselling it.
The angle is a very large lever on unseating and on distortion sensitivity. Because the wedge is self-locking (tan θ = 0.050 is well below μ = 0.15), the force needed to pull it out is governed by friction: Funseat ≈ 2N (μ cos θ − sin θ), which for the numbers above is about 20 kN — half the seating thrust, before adding differential pressure load on the disc. And because radial closure of the seat pockets is converted into vertical interference by 1/tan θ, a 0.1 mm reduction in seat-to-seat distance demands about 2 mm of extra wedge lift. At 5° per face the same closure demands about 1.1 mm. The shallower the wedge, the more a distorted body turns into a stuck valve.
Two more geometry rules are non-negotiable. The seat ring angle must match the wedge angle to within a few minutes of arc; a mismatch produces line contact instead of face contact, which concentrates load, scores the overlay and leaks. And repeated lapping changes the angle — removing material from a seat face tilts it — so lap only within the manufacturer's stated allowance and gauge the angle afterwards.
The solid wedge is a single piece of cast or forged metal with two angled, hardfaced faces. It has no internal features to weaken it, no cavity to trap process fluid, and the highest resistance to mechanical damage from turbulence, water hammer or debris. It is the default in small forged gate valves to API 602, in general water, oil and gas service, and anywhere the temperature is stable and the piping is well supported.
Its weakness is that it cannot adapt. If the body seats move relative to each other — because the pipe is pulling on the flanges, because a welded joint cooled unevenly, or because the body and the wedge are at different temperatures — the solid wedge has no compliance to absorb the change. The seal either leaks or locks. Thermal binding is the classic failure: the valve is closed hot, the body cools and the seat pockets close onto the wedge, and by the time the line is cold the breakaway thrust needed to open it can exceed what the handwheel, gearbox or actuator can produce. Operators then extend cheater bars, which is how bent stems and stripped yoke bushings happen.
Solid wedges remain the correct choice more often than the flexible-wedge fashion suggests — but only when the specification is honest about thermal cycling and line loads.
The flexible wedge is a single disc with a relief machined or cast around its periphery — typically a few millimetres wide and up to about two-thirds of the disc thickness deep — which leaves a thinner web between the hub and the seat faces. That web lets each seat face rotate very slightly relative to the other, on the order of hundredths to a few tenths of a millimetre at the face. It is a small movement, but it is enough to absorb the seat pocket closure that would otherwise lock a solid wedge.
This is why the flexible wedge became the standard closure for steel gate valves in steam, hot oil and other thermally cycled service in API 600 and BS 1414 designs. It keeps most of the strength of a solid disc, needs no extra parts, and tolerates body distortion and minor seat misalignment.
The design has three real penalties, and a good specification manages them:
Flexibility is bought with strength. A shallow narrow relief gives stiffness; a deep wide relief gives compliance and a thinner section at the highest-stress location. Very deep reliefs invite fatigue cracking at the groove root under thermal shock — a failure mode that appears as a crack running around the relief rather than across a seat face.
The relief is a trap. Process fluid sits in the groove. In clean steam that is harmless; in scaling, polymerising, crystallising or solids-bearing service it becomes a corrosion cell and a packing point that gradually stiffens the disc and can prevent full seating. Flexible wedges are a poor choice for slurries, ash, and many chemical duties.
It is not a substitute for correct piping. Flexibility absorbs millimetres of distortion, not the centimetres that a badly aligned flange pair imposes.
The split wedge carries two separate discs in a carrier, held apart by a ball-and-socket spreader or springs. Each disc is free to align to its own seat ring, so a body whose seats are not perfectly parallel — casting tolerance, weld distortion, pipe strain — still gets two face-to-face contacts instead of two line contacts. The discs also avoid thermal binding, because neither is forced into a rigid taper: when the seat pockets close, the carrier simply rides slightly higher.
That self-aligning behaviour is the reason split wedges appear in low-temperature service, where differential contraction between body and trim is unavoidable, and in non-condensing gas and liquid duty where tight shut-off matters more than cost. It is not a universal upgrade. There are more parts to make and assemble; the spreader and spring pockets collect debris and corrode; the disc-to-carrier connection is a wear point that must be inspected; and the assembly must be built to the correct stack height or the valve will not fully seat. For clean, thermally cycled service a good flexible wedge is usually the more economical and equally reliable answer.
Split wedges are also frequently confused with parallel slide gates, which are a different mechanism: two flat parallel discs pressed against flat seats by springs and by line pressure, with no wedging action at all. Parallel slide gates are excellent in high-pressure steam and in dirty service because the discs wipe the seats as they move, but they rely on pressure energisation, so they seal better in one direction than the other and need a minimum differential to perform.
Criterion | Solid wedge | Flexible wedge | Split wedge |
Sealing mechanism | Rigid mechanical wedging, both faces | Mechanical wedging plus limited face rotation | Self-aligning discs, each loaded on its own seat |
Seat angle (typical, per face) | 2°30′–5° | 2°30′–5° | 2°30′–5°, discs free to align |
Thermal binding risk | High in cycled or high-temperature service | Low — the reason the design exists | Low |
Tolerance of seat misalignment / body distortion | Very low | Moderate | High |
Behaviour with solids, scale, slurry | Best of the wedges | Poor — relief groove packs and corrodes | Poor — carrier and spring pockets clog |
Mechanical strength / impact resistance | Highest | Good, reduced by relief depth | Lower — multi-part assembly |
Relative cost | Lowest | Moderate | Highest |
Typical standards and service | API 602, API 600 general service, water/oil/gas | API 600 / BS 1414 steam, hot oil, thermal cycling | Low temperature, non-condensing gas, distorted piping |
The broader family around them follows the same logic: resilient (rubber-coated) wedges dominate buried water distribution because the elastomer gives zero visible leakage at low cost; slab or through-conduit gates dominate pipelines because the disc has a full-bore hole that lets pigs pass; knife gates exist because a wedge cannot cut through pulp or sludge.
Wedge selection is decided by three questions, in this order: does the valve see significant temperature change while closed, is the medium clean, and how parallel can the two seats be trusted to stay.
Service | Recommended closur | Reason and watch-out |
Saturated or superheated steam, boiler and turbine isolation | Flexible wedge, 13Cr or Stellite 6 faced | Cycled from cold to 400–540 °C; the relief absorbs seat pocket closure. Specify hardfacing hardness and a stem thrust calculation at maximum differential. |
Hot oil, heat transfer fluid, 200–350 °C | Flexible wedge | Same thermal logic; confirm packing and gasket temperature class as well as the wedge. |
Cooling water, fire main, utility air at stable temperature | Solid wedge | Cheapest robust answer; no thermal cycling to justify flexibility. |
Seawater and chlorinated cooling | Solid wedge in duplex or super duplex, or flexible wedge with 316L trim | Corrosion, not thermal distortion, governs. No carbon steel, no gaps that hold stagnant water. |
LNG and cryogenic, to −196 °C | Split wedge or cryogenic flexible wedge, extended bonnet | Differential contraction is large and unavoidable; the self-aligning disc avoids binding. Test per BS 6364. |
Wet sour gas, NACE MR0175 / ISO 15156 | Solid or flexible wedge with hardness-controlled trim | Hardness limits (typically 22 HRC) override sealing preference; verify wedge, seat overlay and stem separately. |
Slurry, ash, catalyst, polymerising media | Solid wedge, or a different valve type entirely | Relief grooves and carrier cavities are liabilities. Consider knife gate, pinch or full-bore ball. |
Pipeline with pigging | Slab / through-conduit gate to API 6D | A wedge leaves a cavity at the bottom of the body that traps and damages pigs. |
Gate valve failures are unusually diagnosable, because the damaged surfaces record how the valve was operated. Before replacing anything, look at the seat faces, the disc faces and the stem-to-disc connection under magnification.
Symptom | Likely mechanism | Corrective action |
Valve will not reopen after cooling; stem or yoke damaged | Thermal binding — seat pockets closed onto a rigid wedge | Change to flexible or split wedge; review line support and warm-up procedure; never use extension bars |
Circumferential scoring and bright bands across both faces | Throttling or partial-stroke operation — the disc is being wire-drawn across the seats | Use a globe or control valve for regulation; gate valves are open/closed only |
Deep local groove or notch in one seat, elsewhere clean | Wire drawing: a persistent leak jet eroded the overlay and then the base metal | Replace seat ring, not just re-lap; find the cause of incomplete seating (thrust, obstruction, distortion) |
Brinell marks or flattened overlay on both faces | Excessive seating thrust — over-torqued handwheel, oversized actuator, gearbox ratio | Set actuator thrust limit to the calculated requirement; check stem thrust data |
Crack running around the relief groove of a flexible wedge | Thermal shock fatigue at the thinnest section | Slower warm-up and drain procedure; shallower relief or a different closure design |
Backlash, rattle, or disc dropping when the stem is turned | Wear at the stem-to-disc T-slot or carrier connection | Replace the connection parts; check that the disc is not load-bearing on the T-slot in normal operation |
Leakage that appears only at low differential pressure | Seating stress too low for the lapped faces — seal depended on line pressure | Re-check stem thrust versus seat specific pressure; verify the wedge angle was not changed by repeated lapping |
The recurring theme is that most "gate valve leakage" is really a mismatch between the closure design and the duty, made worse by using an isolation valve as a throttle. Seat tightness itself is verified to a defined acceptance level — metal-seated gate valves are not bubble-tight by definition — and the test basis is worth reading before rejecting a valve: API 598 pressure testing explained covers the shell, seat and backseat acceptance criteria in detail.
Most wedge problems are procurement problems. A quotation that does not state the closure design lets the supplier choose the cheapest option that meets the written text. Put these eight points in the enquiry:
Closure type, named. "Flexible wedge, one-piece, machined relief" — not "wedge gate" and not "as per API 600", which permits all three.
Wedge angle and its basis. Per-face or included, with the seat ring angle stated to match, and the maximum lapping allowance.
Seat and disc facing material with hardness. 13Cr (AISI 410) for standard service, cobalt-based overlay such as Stellite 6 for high-temperature steam, with the specified hardness range and overlay thickness; state whether the body seats are integral or renewable rings.
Stem thrust and torque data. Required seating and unseating thrust at maximum differential pressure, cold and hot, so actuators and gearboxes can be sized against a number rather than a guess.
Stem-to-disc connection detail. T-slot geometry, whether the disc is suspended on the T-head, and the material and hardness of both parts.
Backseat and packing arrangement. Whether a renewable backseat is required, and the fugitive-emission class if the plant has one — the packing is a separate specification from the wedge, covered in gate valve packing and ISO 15848 Class B.
Test standard and acceptance level. API 598 or ISO 5208, the leakage rate class for metal-seated seats, and whether a witnessed test is required.
Installation constraints. Orientation, bypass requirements for large sizes, insulation, and whether the valve will be actuated — all of which influence the thrust margin.
At J-VALVES, wedge gate valves are quoted with the closure design, angle basis, facing material and hardness, and calculated seating thrust stated explicitly, and flexible-wedge steam valves are supplied with the relief geometry and hardfacing records that a thermal-cycling audit will ask for. Enquiries that arrive with the eight points above are quoted faster, because the engineering conversation is about the duty rather than about what was left unspecified.
Which wedge type is best for saturated steam?
A flexible wedge is the default for saturated and superheated steam in steel gate valves, because the machined relief lets the two seat faces move slightly as the body and seat pockets close in during cooling. It keeps the strength of a one-piece disc while removing most of the thermal binding risk of a solid wedge. For very high pressure steam where even a flexible wedge binds, or where the body seats cannot be relied on to stay parallel, a parallel slide or split wedge design is the next step.
Why does my gate valve seize after it cools down, and how do I prevent it?
This is thermal binding. The valve was closed hot, so the wedge was seated into a thermally expanded body; as the body cools, the distance between the two seat rings shrinks and the wedge is trapped between them. Because the wedge is self-locking and a shallow angle converts a small radial closure into a large vertical interference, the breakaway thrust can rise far beyond the original closing thrust. Prevention is design-led: specify a flexible or split wedge for cycled service, close the valve at a lower temperature where the procedure allows, and never use extension bars to force it open.
Can I replace a solid wedge with a flexible wedge in the same valve body?
Only with the manufacturer's written confirmation. The wedge has to match the seat ring angle, the seat pocket geometry and the stroke, and the stem-to-disc connection and disc guidance must suit the new component. Two further points usually decide the answer: whether the body was designed for the same closure height, and whether the repair is being made to a pressure-retaining valve under a code that requires the original manufacturer's parts. A mismatched wedge produces line contact, scoring and leakage rather than a fix.
What is the difference between a split wedge and a parallel slide gate?
A split wedge has two angled discs that are spread apart to wedge into inclined seats, so it seals by mechanical force and is self-locking. A parallel slide gate has two flat parallel discs pressed against flat seats by springs and by line pressure, with no wedging action. The parallel slide design wipes the seats as it moves and handles high-pressure steam well, but it depends on differential pressure to seal, so its performance is direction-dependent and it needs a minimum pressure to be tight.
How much stem thrust does a wedge gate valve need to seat and to unseat?
Seating normal force per face is approximately F / [2 (sin theta + mu cos theta)], where F is stem thrust, theta the wedge half angle and mu the friction coefficient on the seat faces. At 2 degrees 52 minutes per face with mu 0.15 that is about 2.5 times the applied thrust, so roughly 40 kN of thrust gives about 100 kN of seating force per face. Unseating is governed by friction and is lower than seating in the clean case — around half the seating thrust in the same example — but differential pressure load and thermal interference are added on top, which is why breakaway thrust must be calculated, not assumed.
