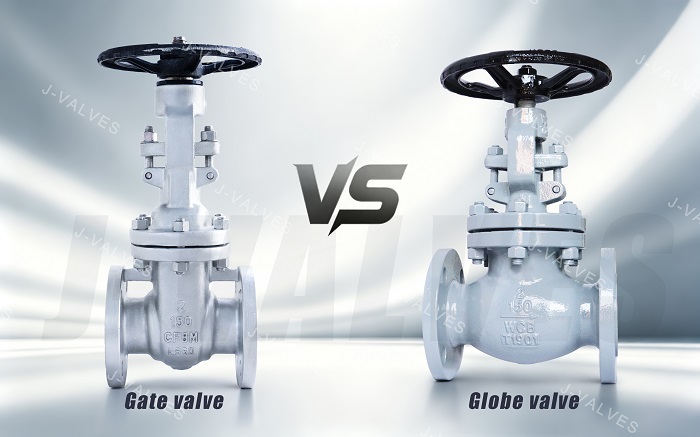

Gate Valve Vs Globe Valve: Low Pressure Drop for Large Diameters Vs Precise Control for Small Diameters

In industrial piping systems, gate valves and globe valves are two of the most common valve types. However, they are not interchangeable. Many project delays and procurement mistakes happen because the wrong valve is chosen for the wrong service. In simple terms, gate valves are better for low pressure drop, large diameters, and on-off service, while globe valves are better for precise flow control and smaller lines.

If you are working on oil and gas, water treatment, HVAC, power generation, or general industrial piping, this guide will help you choose the right valve faster and with more confidence.

I. What Is the Main Difference Between Gate Valves and Globe Valves?

Gate Valve: Built for Full Open or Full Closed Service

A gate valve uses a gate that moves up and down across the flow path. When fully open, the flow channel is nearly straight, which means very low resistance and minimal pressure drop. This makes gate valves ideal for isolation service.

Globe Valve: Built for Flow Regulation

A globe valve directs flow through a more curved path inside the body. That creates more resistance, but it also gives the valve much better throttling and control performance. This is why globe valves are often used where flow needs to be adjusted rather than simply turned on or off.

II. Why Their Internal Design Leads to Different Applications

Gate Valve Design

Because the flow path is straight when the valve is open, gate valves are a strong choice for systems where energy efficiency and low pressure loss matter.

Globe Valve Design

Because the flow changes direction inside the valve, globe valves are less efficient in terms of pressure drop, but much more suitable for accurate control of process flow.

III. Performance Comparison: Low Resistance vs Precise Regulation

Pressure Drop

Gate valves offer very low pressure drop in the fully open position, especially in large-diameter pipelines.
Globe valves create more pressure drop, but that trade-off is acceptable when precise control is needed.

Flow Control

Gate valves should not be used for long-term throttling. Partial opening can cause seat wear, vibration, and erosion.
Globe valves are designed for regulation and perform better in partially open conditions.

Durability

Gate valves usually last longer in isolation service because they are either fully open or fully closed.
Globe valves handle frequent adjustments better, but they may experience higher wear if exposed to large pressure differentials for long periods.

IV. Which Valve Should You Choose?

Choose a Gate Valve for:

• Large-diameter main lines

• Low pressure drop systems

• On-off isolation service

• Long-distance transmission pipelines

• Applications where energy loss must be minimized

Choose a Globe Valve for:

• Small-diameter branch lines

• Accurate flow regulation

• Frequent opening and closing

• HVAC systems

• Process lines requiring throttling control

V. Common Valve Selection Mistakes

1. Using a Gate Valve for Throttling

This is one of the most common mistakes. Gate valves are not designed for continuous flow control.

2. Installing a Globe Valve on a Large Main Line

This can increase pressure loss and operating cost, especially in high-flow systems.

3. Choosing Based on Price Alone

A low-cost valve may create higher maintenance and energy costs if it is not matched to the application.

4. Ignoring Media Conditions

Temperature, pressure, corrosion, and solids content all affect valve performance and service life.

VI. Practical Buying Advice

If your system requires low resistance, large diameter, and reliable isolation, a gate valve is usually the better choice.
If your system requires accurate flow adjustment, smaller diameter, and repeated control, a globe valve is typically the smarter option.

Before purchase, confirm:

• Nominal size

• Pressure class

• Medium type

• Temperature range

• Whether throttling is required

• Installation space and operating method

These details help prevent costly rework and performance problems after installation.

VII. Conclusion: The Right Valve Saves More Than the Cheaper One

A gate valve is best when you need low pressure drop, large-diameter service, and simple on-off operation.
A globe valve is best when you need precise regulation, better throttling performance, and small-line control.

The easiest way to remember it is:

Choose gate valves for flow efficiency. Choose globe valves for flow control.

Choosing the right valve at the design stage improves system stability, reduces maintenance, and lowers lifecycle cost.

FAQ

1. Can a gate valve replace a globe valve?

Not usually. Gate valves are better for isolation, not long-term throttling.

2. Can a globe valve be used in large-diameter pipelines?

Yes, but it is usually less efficient because of higher pressure drop.

3. Which valve is better for throttling?

A globe valve is generally better for throttling service.

4. Which valve is more energy efficient?

A gate valve is typically more energy efficient when fully open.
