A gate valve has three places where the pressure boundary can open along the stem: the packing rings around the stem, the backseat shoulder inside the bonnet, and the bonnet-to-body joint underneath them. Operators talk about the first. Maintenance finds the second. Inspection discovers the third. In a bolted bonnet OS&Y gate valve all three sit in series, and the one that fails first is rarely the one that has been maintained.
The backseat is a conical or flat shoulder machined on the stem that lands on a matching seat in the bonnet when the valve reaches full open. It does two jobs. It gives the packing a second barrier, so the gland can be serviced with the line still under pressure, and it takes stem thrust off the packing when the valve is left open, which is where an isolation valve spends most of its life. It only works at full open. Part way open, the shoulder is somewhere in the middle of the bonnet and seals nothing at all.
Three things stop the backseat from being a primary seal. It is exposed to the process every time the valve moves, so scale, sand and corrosion product collect on the shoulder and hold it off its face. It is metal to metal with no resilience, so a few thermal cycles and a little wear open a path that no gland bolt can close. And in most designs it cannot be inspected, so you learn it has failed on the day you try to repack the valve live. Treat it as a maintenance convenience and a secondary barrier, never as the reason to skip a proper isolation.
In an OS&Y valve the stem thread sits outside the pressure boundary, above the packing, and a handwheel nut travels on it. The advantages are practical: the threads never see the process fluid, they stay greased, and the exposed stem shows disc position. The cost is height, because a 24 inch gate valve needs the stem to travel its full stroke above the yoke. A non-rising stem keeps the overall height fixed and puts the thread inside the bonnet, in the fluid. That is a different trade, not a better one, and it removes the visual position indication that operators rely on.
The stem is the only component with a straight path out of the pressure boundary. If it fractures at the gland, through galling, over-torque or fatigue, line pressure has an open route through the packing box. A blowout-proof design closes that route with a collar or T-head formed on the stem above the packing, larger than the bore it passes through, so a broken end is trapped inside the bonnet. API 600 requires a blowout-proof stem on the gate valves it covers. It is also worth confirming on the general arrangement drawing rather than the datasheet, because it is a shape, not a material.
| Packing type | Working ceiling | Best for | How it fails |
|---|---|---|---|
| PTFE V-ring | About 200 °C | Water, air, most non-aggressive liquids | Cold flow and extrusion above the ceiling |
| Braided PTFE | About 200 °C | Higher pressure water, mild slurries | Wicking along the braid, gland load loss |
| Flexible graphite | About 450 °C in air, higher in steam | Steam, hot oil, high temperature duty | Oxidation and volume loss, needs live load |
| Graphite with stainless wire | About 450 °C in air | Steam with cycling, high pressure | Wire jacket wear on a rough stem |
Packing leaks for two reasons that look identical at the gland and are not. The first is a load problem: the rings relax as they heat and cool, the gland follower stops following, and the joint weeps at the next cycle. Belleville washers or a live-loaded gland take up that movement. The second is a surface problem: a stem with a rough finish cuts the rings from the inside, and no amount of gland load will stop the leak because the damage keeps being remade. Telling them apart means looking at the stem when the packing is out.
A gland tightened until the drip stops is the most common cause of a gate valve that will not turn. Every extra turn of the gland nuts adds friction at the stem and raises the torque the handwheel or actuator has to supply, and on soft packing it extrudes the rings into the clearance gap, which is exactly where the next leak begins. The correct response is to bring the packing to the compression its maker specifies, not to keep turning until the leak disappears, and to check the stem finish first.
Five lines settle the stem. Backseat provided and lapped rather than merely machined. Blowout-proof stem to API 600. Packing stated by type and temperature range, not by colour. Stem material and finish stated, so the packing and the stem are chosen together rather than separately. And a stem seal check at 1.1 times rated pressure with the valve both closed and fully open. Then add the operational question: if the valve will be repacked live, the backseat has to be tested, not just machined.

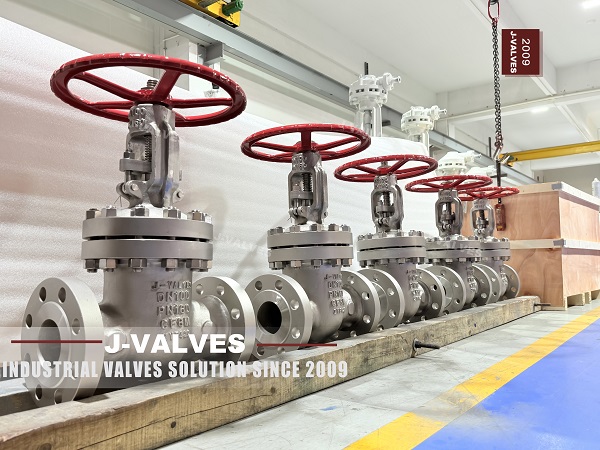

J-VALVES builds bolted bonnet OS&Y gate valves from 1/2 to 56 inch (DN15 to DN1400) in ASME Class 150 to 2500, with solid, flexible and split wedge discs, lapped backseat and blowout-proof stem available on the API range, and gland packing in PTFE or flexible graphite matched to the service temperature. Shell tests run at 1.5 times and seat tests at 1.1 times rated pressure, with EN 10204 3.1 certificates for body, stem and wedge issued on request.
Can a gate valve be repacked while the line is under pressure? Only with the valve fully open and the backseat in good condition, and even then it is a planned job with the line pressure known, the correct packing on hand and a trained fitter at the gland. The backseat is a second barrier, not a guarantee. Most plants isolate and drain instead, which is the safer default above low pressure.
What does blowout-proof stem mean? A collar or T-head on the stem above the packing that is larger than the opening it passes through. If the stem breaks at the gland, the collar catches on the bonnet and line pressure cannot push the stem out. API 600 requires it, and it can be confirmed on the drawing by looking for that shoulder above the packing space.
Why does a gate valve gland keep leaking after it is tightened? Usually because the packing has already extruded into the clearance gap, or because the stem surface is scoring the rings faster than the gland can compensate. Extra load then raises friction without closing the leak, and the valve becomes hard to operate. New rings and a checked stem finish solve it. More torque does not.
