Introduction

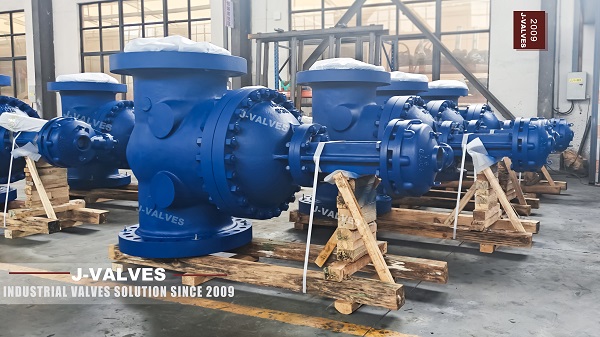

WC6 Gate Valves are commonly used in high-temperature and high-pressure industrial piping systems, particularly in power generation, petrochemical plants, refineries, and steam service. The valves shown in the image feature a robust cast-steel construction with flanged ends, designed for demanding industrial pipeline applications.
WC6 is a chromium-molybdenum alloy steel grade that offers improved high-temperature strength compared with conventional carbon steel. This makes it a suitable material choice for elevated-temperature service when properly engineered.
1. WC6 Gate Valve Construction
A typical WC6 Gate Valve consists of:
WC6 cast steel body
Bonnet
Gate
Stem
Seats
Packing system
Flanged ends
Handwheel or actuator
The gate moves vertically to control the pipeline. When fully open, the gate is lifted away from the flow passage, while closing the valve moves the gate between the seats to isolate the medium.
The robust body and bonnet provide the required pressure boundary for high-temperature applications.
2. Advantages of WC6 Material
WC6 alloy steel contains chromium and molybdenum, providing useful properties for elevated-temperature service.
Key advantages include:
Good high-temperature strength
Improved resistance to thermal effects
Good pressure-containing capability
Suitable performance in steam and process systems
Good durability under demanding operating conditions
Material selection should be based on actual temperature, pressure, medium, and applicable design standards.
3. Sealing and Stem Design
Reliable shut-off performance depends on accurate alignment between the gate and valve seats. Proper seat material selection and precision machining help maintain sealing performance during repeated operation.
The stem and packing system are also important for controlling external leakage. For high-temperature service, packing materials should be selected according to the operating temperature and medium.
For demanding applications, configurations such as flexible wedge gates and suitable hard-facing materials can be considered according to project requirements.
4. Why Choose a WC6 Gate Valve?
A WC6 Gate Valve is particularly suitable when the pipeline operates under elevated temperature and pressure conditions.
Typical applications include:
Power plant steam systems
Boiler pipelines
Petrochemical plants
Refineries
High-temperature process systems
Thermal power systems
Industrial steam pipelines
Its primary function is full-flow isolation, rather than throttling. Keeping the gate valve fully open or fully closed is generally preferred for long-term service.
5. J-VALVES Manufacturing Advantages
J-VALVES provides customized WC6 Gate Valve solutions for high-temperature industrial applications.
Material Control: WC6 alloy steel can be selected according to temperature, pressure, and service conditions.
Precision Machining: Accurate machining of the gate, seats, stem, and sealing surfaces helps maintain proper alignment and reliable operation.
Customized Configuration: Valve size, pressure class, connection type, seat design, bonnet configuration, and operating method can be customized.
Quality Inspection: Material verification, dimensional inspection, shell pressure testing, seat testing, and functional checks help support consistent product quality.
Conclusion
The WC6 Gate Valve combines a robust gate valve structure with the high-temperature capabilities of chromium-molybdenum alloy steel. It is well suited to demanding steam, power generation, petrochemical, and high-temperature process applications.
With professional engineering, WC6 material expertise, precision machining, customized configurations, and strict quality control, J-VALVES provides reliable gate valve solutions for high-pressure and high-temperature industrial piping systems.
