C95800 Nickel Aluminum Bronze Gate Valve: Technical Design, Performance, And Industrial Applications

Introduction

In marine engineering, offshore platforms, and corrosive industrial environments, material selection is the key factor determining valve service life. The C95800 Nickel Aluminum Bronze (NAB) gate valve is widely recognized as a high-performance solution for seawater, desalination, and chemical media systems.

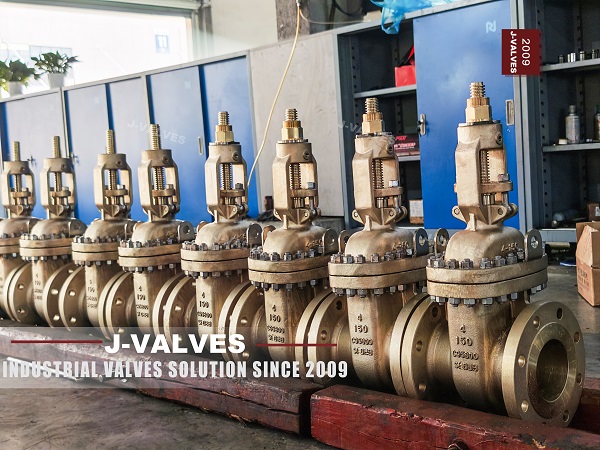

The valve shown represents a flanged 150LB C95800 gate valve, designed with robust structural integrity and precision machining to ensure long-term sealing performance under demanding conditions. Its bronze-based alloy construction provides exceptional resistance to corrosion, erosion, and biofouling, making it a preferred choice for critical flow isolation applications.

What Is a C95800 Gate Valve?

A C95800 gate valve is a linear-motion isolation valve manufactured from ASTM B148 C95800 nickel aluminum bronze alloy. It operates by raising or lowering a gate (wedge) inside the valve body to start or stop fluid flow.

Unlike throttling valves, gate valves are designed for:

• Full open or full closed operation

• Minimal pressure drop in fully open position

• Reliable shut-off performance in high-pressure pipelines

Material Advantage: Why C95800 Matters

1. Excellent Corrosion Resistance

C95800 alloy provides strong resistance against:

• Seawater corrosion

• Chloride-induced pitting

• Marine atmospheric corrosion

• Mild chemical media

This makes it ideal for offshore and marine applications.

2. High Mechanical Strength

Compared with traditional bronze materials, C95800 offers:

• Higher tensile strength

• Improved wear resistance

• Better impact resistance under pressure fluctuation

3. Anti-Biofouling Properties

Nickel aluminum bronze naturally reduces marine organism attachment, improving long-term flow efficiency in seawater systems.

Structural Design of 150LB C95800 Gate Valve

1. Pressure Class: ASME 150LB

The valve is designed according to ASME B16.34 standards, offering:

• Stable performance in low to medium pressure systems

• Compatibility with standard flange piping systems

• Safe operation in industrial fluid control networks

2. Rising Stem Design

The rising stem structure provides:

• Clear visual indication of valve position

• Reduced internal friction during operation

• Improved sealing consistency

The stem threads are isolated from the fluid, reducing corrosion risk and extending service life.

3. Wedge Gate Mechanism

The wedge-type gate ensures:

• Tight sealing between seat surfaces

• Reliable shut-off under differential pressure

• Reduced leakage risk over long-term use

Precision machining of sealing surfaces is critical to maintaining Class-level shut-off performance.

4. Flanged Connection Ends

Flanged ends ensure:

• Secure installation in pipeline systems

• Easy maintenance and replacement

• Compatibility with international flange standards (ASME B16.5)

Working Principle

The operation of a gate valve is simple yet highly effective:

1. Handwheel or actuator rotates the stem

2. Stem moves the gate vertically

3. Gate lifts to allow full flow or descends to block flow

4. Sealing surfaces engage tightly in the closed position

Because flow passes straight through when open, pressure loss is extremely low.

Key Advantages of C95800 Gate Valves

1. Superior Marine Service Life

Ideal for seawater cooling systems, ballast systems, and offshore pipelines.

2. High Sealing Reliability

Precision-lapped sealing surfaces reduce leakage risk even after long operation cycles.

3. Low Flow Resistance

Full-bore design ensures smooth flow with minimal turbulence.

4. Strong Wear Resistance

C95800 material resists erosion caused by sand, particles, and high-velocity fluids.

5. Reduced Maintenance Cost

Long service intervals significantly reduce operational downtime.

Typical Applications

The C95800 gate valve is widely used in:

• Offshore oil and gas platforms

• Shipbuilding and marine engineering

• Seawater desalination plants

• Cooling water systems in power plants

• Chemical and petrochemical pipelines

• Coastal industrial infrastructure

Manufacturing Excellence – J-VALVES Engineering Capability

As a professional industrial valve manufacturer, J-VALVES specializes in high-performance alloy valve production, including C95800 nickel aluminum bronze series valves.

Key engineering strengths include:

• Precision casting of NAB alloy for uniform microstructure

• CNC machining for accurate sealing and dimensional control

• Strict pressure and leakage testing before shipment

• Compliance with API, ASME, and ISO standards

• Custom design options for marine and offshore projects

These capabilities ensure stable performance even in aggressive seawater environments.

Quality Testing and Inspection

Each valve undergoes rigorous quality control procedures:

• Hydrostatic shell test

• Seat leakage test

• Material chemical composition verification

• Dimensional inspection and NDT testing

This ensures reliability in critical applications where failure is not acceptable.

Conclusion

The C95800 nickel aluminum bronze gate valve is a high-performance solution engineered for harsh marine and industrial environments. With its excellent corrosion resistance, high mechanical strength, and long service life, it plays a vital role in offshore systems, seawater applications, and chemical processing industries.

Supported by advanced manufacturing technology and strict quality standards, J-VALVES provides reliable C95800 valve solutions that meet global engineering requirements and ensure long-term operational stability.
