Understanding Your Application Requirements
Before selecting a gate valve, it is essential to understand the specific requirements of your industrial application. This includes:
• Fluid Type: Determine the type of fluid that will flow through the valve. Common fluids include water, oil, steam, gases, and corrosive chemicals. The chemical composition and properties of the fluid will influence the choice of valve material and design.
• Operating Conditions: Consider the operating conditions, such as temperature, pressure, and flow rate. Extreme temperatures or high pressures may require specialized valve designs and materials.
• Frequency of Operation: Assess how frequently the valve will be used. Valves that need to be opened and closed frequently may require different designs compared to those used for isolation purposes.
• Space Constraints: Evaluate the available space for installation. Some valve types may have larger dimensions or require specific mounting configurations.
Gate valves come in various types, each designed for specific applications. Understanding the differences will help you make an informed decision.

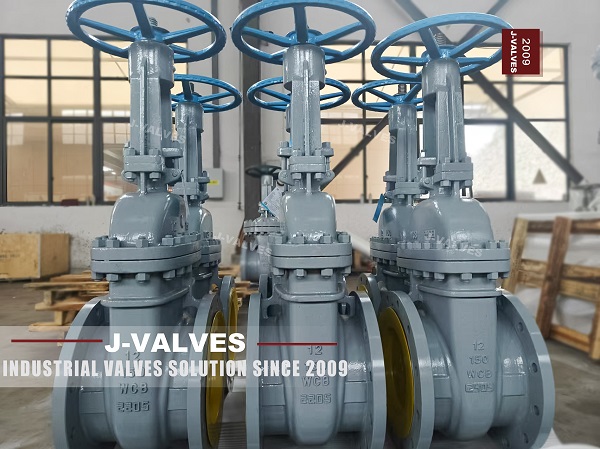

• Rising Stem Gate Valves: These valves have a stem that rises above the handwheel when the valve is opened. They provide a visual indication of the valve's position and are suitable for applications where frequent operation is required.
• Non-Rising Stem Gate Valves: In these valves, the stem does not rise above the handwheel. They are more compact and suitable for applications with limited vertical space.
• Wedge Gate Valves: These valves use a wedge-shaped gate to control the flow. They are available in single-disc and double-disc designs and are suitable for a wide range of applications.
• Parallel Slide Gate Valves: These valves use a flat gate that slides parallel to the flow direction. They provide excellent sealing capabilities and are often used in high-pressure applications.
• Knife Gate Valves: Designed for handling slurries and viscous fluids, knife gate valves have a sharp-edged gate that can cut through thick materials.
The material of the valve is critical for its performance and longevity, especially in harsh operating conditions. Common materials include:
• Cast Iron: Suitable for low-pressure applications with non-corrosive fluids. Cast iron valves are cost-effective but may not be suitable for high-pressure or corrosive environments.
• Ductile Iron: Stronger and more durable than cast iron, ductile iron valves offer better resistance to impact and are suitable for a wider range of applications.
• Carbon Steel: Carbon steel valves are robust and can handle high pressures and temperatures. They are suitable for applications involving water, oil, and steam but may be susceptible to corrosion in highly acidic environments.
• Stainless Steel: Stainless steel valves provide excellent corrosion resistance and are suitable for applications involving corrosive fluids, high temperatures, and high pressures. They are more expensive than carbon steel valves but offer longer service life.
• Bronze: Bronze valves are corrosion-resistant and suitable for low-pressure applications involving water, oil, and other non-corrosive fluids. They are often used in plumbing and irrigation systems.
• Special Alloys: For highly corrosive or high-temperature applications, special alloys such as Hastelloy, Inconel, or Monel may be required.
Several design features and options can enhance the performance and functionality of gate valves:
• Body and Bonnet Design: The body and bonnet are the main structural components of the valve. They must be designed to withstand the operating pressure and temperature. Common designs include bolted bonnet, welded bonnet, and pressure-seal bonnet.
• Seating Arrangement: The seating arrangement determines the valve's sealing performance. Soft-seated valves use elastomeric materials for tight sealing, while metal-seated valves offer better durability and resistance to high temperatures and pressures.
• Stem Design: The stem connects the gate to the actuator and must be designed to withstand the operating forces. It can be either rising or non-rising, depending on the application requirements.
• Actuation Options: Gate valves can be manually operated using a handwheel or lever, or they can be automated using electric, pneumatic, or hydraulic actuators. The choice of actuation depends on the frequency of operation and the need for remote control.
• End Connections: The end connections determine how the valve is attached to the pipeline. Common options include flanged, threaded, and welded connections. The choice depends on the pipeline configuration and the need for easy maintenance.
Ensuring the quality and reliability of the gate valve is crucial for safe and efficient operation. Look for valves that meet recognized industry standards and certifications, such as:
• API Standards: The American Petroleum Institute (API) provides standards for the design, testing, and certification of gate valves used in the oil and gas industry.
• ANSI Standards: The American National Standards Institute (ANSI) sets standards for the pressure and temperature ratings of valves.
• ISO Standards: The International Organization for Standardization (ISO) provides global standards for valve design and performance.
• Third-Party Certifications: Look for valves that have been tested and certified by independent third-party organizations, such as Underwriters Laboratories (UL) or the American Society of Mechanical Engineers (ASME).
