How To Select The Appropriate Gate Valve Based on The Design Standards

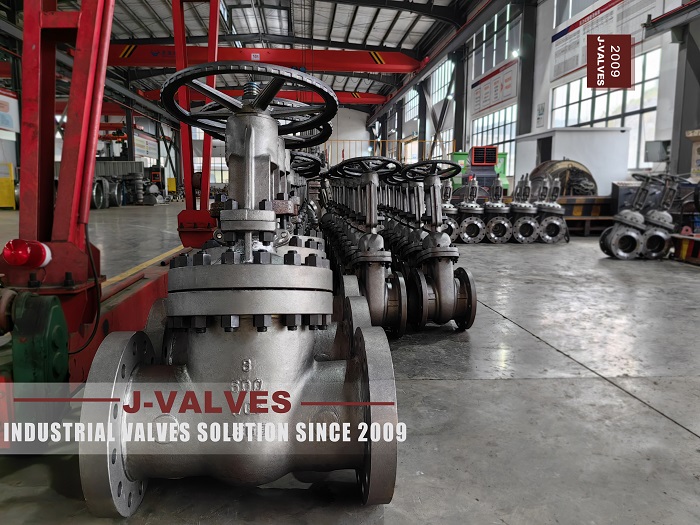

Understanding Gate Valve Design Standards

Key Standards and Specifications

Gate valves are governed by several international and national standards that define their design, manufacturing, testing, and performance characteristics. Some of the most commonly referenced standards include:

• ANSI/ASME B16.34: This American standard covers the design, materials, and testing of gate valves, including flanged, threaded, and welded end connections.

• API 600: This standard from the American Petroleum Institute focuses on steel gate valves for pipeline service, covering design, materials, and testing requirements.

• DIN EN 1092-1: This European standard specifies the requirements for flanged gate valves, including design, materials, and testing.

• ISO 5208: This international standard provides guidelines for the pressure testing of industrial valves, including gate valves.

• JIS B2074: This Japanese standard covers the design and testing of gate valves, ensuring compatibility and performance in Japanese and Asian markets.

Key Considerations in Design Standards

1. Pressure and Temperature Ratings: Ensure the valve's pressure and temperature ratings meet or exceed the operating conditions of your system.

2. Material Specifications: Choose materials that are compatible with the fluid and operating conditions, considering factors such as corrosion resistance, strength, and thermal stability.

3. End Connections: Select the appropriate end connections (e.g., flanged, threaded, welded) based on your piping system requirements.

4. Actuation Method: Determine the type of actuation required (e.g., manual, electric, pneumatic) based on the application's needs for control and automation.

5. Testing and Certification: Ensure the valve meets the required testing and certification standards to guarantee its performance and reliability.

Steps to Select the Right Gate Valve

1. Define Application Requirements

• Fluid Type: Identify the type of fluid (e.g., water, oil, chemicals) and its properties (e.g., corrosiveness, viscosity).

• Operating Conditions: Determine the maximum and minimum operating pressures and temperatures.

• Flow Requirements: Specify the required flow rate and direction.

• Environmental Conditions: Consider any environmental factors (e.g., outdoor exposure, hazardous locations).

2. Choose the Appropriate Standard

• Industry-Specific Standards: Select the standard that is most relevant to your industry (e.g., ANSI/ASME for general industrial applications, API for oil and gas).

• Regional Standards: Ensure compliance with regional standards (e.g., DIN for European applications, JIS for Japanese applications).

3. Select the Valve Body and Trim Materials

• Body Materials: Common materials include carbon steel, stainless steel, and alloy steel. Choose based on corrosion resistance, strength, and cost.

• Trim Materials: The trim (stem, seat, and disc) should be compatible with the fluid and operating conditions. Stainless steel, Hastelloy, and other high-performance alloys are often used for corrosive applications.

4. Determine the End Connections

• Flanged: Suitable for high-pressure and high-temperature applications, providing easy installation and maintenance.

• Threaded: Used for smaller diameter and lower-pressure applications.

• Welded: Provides a permanent connection, suitable for high-pressure and hazardous environments.

5. Choose the Actuation Method

• Manual: Suitable for applications where frequent operation is not required.

• Electric: Provides precise control and automation, suitable for remote or automated systems.

• Pneumatic: Offers quick operation and is suitable for applications requiring rapid cycling.

• Hydraulic: Provides high torque and is suitable for heavy-duty applications.

6. Ensure Proper Testing and Certification

• Pressure Testing: Ensure the valve has been tested according to the relevant standard (e.g., ANSI/ASME B16.34, API 600).

• Leakage Testing: Verify that the valve meets the required leakage rates.

• Certification: Ensure the valve is certified by a recognized third-party organization (e.g., API, ISO).
