In modern industrial applications, the demand for efficient and reliable flow control solutions has grown significantly. Among the various valve types used for fluid control, floating ball valves stand out as a reliable and versatile choice for managing the flow of liquids and gases in piping systems. Known for their simple yet effective design, floating ball valves play a crucial role in ensuring system safety, performance, and operational efficiency.

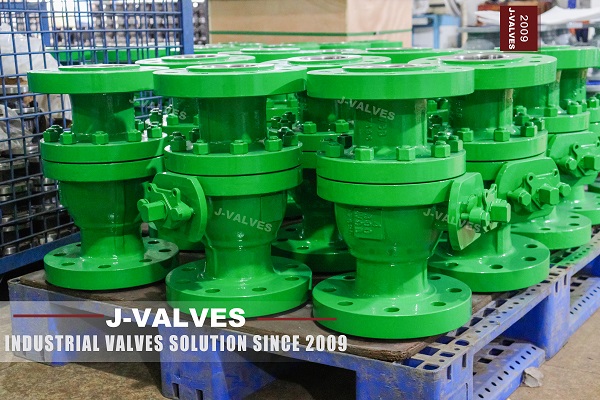

A floating ball valve is a type of valve that utilizes a ball with a hole (or bore) through the center to control the flow of fluids. The ball is not fixed in place, but instead “floats” between two valve seats. When the valve is open, the bore aligns with the pipe, allowing fluid to flow through. When the valve is closed, the ball rotates, and the bore is no longer aligned with the flow path, cutting off the flow of fluid.
Floating ball valves are commonly used for on/off flow control and are ideal for applications requiring simple and reliable sealing mechanisms.
The operation of a floating ball valve is relatively simple yet highly effective. Here’s a breakdown of how it works:
Ball and Seats: The ball inside the valve is positioned between two seats—one upstream and one downstream. The ball’s bore (hole) aligns with the flow path when the valve is open, allowing fluid to pass through. When the valve is closed, the ball rotates 90 degrees to block the flow.
Pressure Sealing: As the flow pressure increases, the ball is pushed against the downstream seat, ensuring a tight seal. The sealing mechanism is enhanced by the pressure differential across the ball, which helps maintain leak-tight operation under high-pressure conditions.
Flow Control: Floating ball valves can be manually operated with a handle or automated with actuators, making them highly versatile. Actuators are used in applications requiring remote control or automation, ensuring precise flow regulation in complex systems.
Simple Design: Floating ball valves have a straightforward design, consisting mainly of a ball, two seats, and a stem for operation. This simplicity makes them cost-effective to produce, easy to maintain, and reliable over long periods of use.
Compact Size: The design of floating ball valves is compact, making them suitable for use in tight spaces where larger valves might not fit. This compact nature also allows for lighter-weight installations, reducing overall system costs.
Self-Adjusting Sealing: One of the primary benefits of floating ball valves is their self-adjusting sealing mechanism. As the flow pressure increases, the ball is pushed more firmly against the downstream seat, ensuring a more secure seal. This feature allows floating ball valves to maintain tight shut-off capabilities under varying pressures.
Variety of Materials: Floating ball valves can be constructed from a wide range of materials, such as stainless steel, carbon steel, and various alloys, making them highly adaptable for different fluid types, including corrosive chemicals, high-temperature fluids, and gases.
Durability: The ball, which is generally made from hardened stainless steel or other durable materials, is resistant to wear and corrosion, ensuring long service life and minimal maintenance.
Reliable Sealing: Floating ball valves provide excellent sealing performance, even in high-pressure systems. The floating ball design, which self-adjusts based on the pressure differential, ensures that the valve remains leak-tight throughout its operation.
Reduced Maintenance Costs: Due to their simple construction and minimal moving parts, floating ball valves require less maintenance compared to other types of valves. This reduces downtime and the cost of replacement parts, making them a cost-effective choice in the long run.
Efficient Flow Control: Floating ball valves allow for precise control over fluid flow. Their ability to offer tight shut-off and regulate flow makes them suitable for a wide range of applications, from basic on/off control to more complex flow regulation.
Versatility in Applications: Floating ball valves are used in a variety of industries, including oil and gas, chemical processing, power generation, water treatment, and HVAC systems. Their ability to handle different types of fluids, pressures, and temperatures makes them an adaptable choice for diverse piping systems.
Compact and Lightweight: The compact design of floating ball valves makes them ideal for installations in confined spaces, such as within compact piping networks or systems with limited space.
Oil and Gas Industry: Floating ball valves are widely used in the oil and gas sector, where they control the flow of crude oil, natural gas, and other substances in pipelines, refineries, and offshore platforms. Their ability to maintain tight seals under high-pressure conditions makes them ideal for these critical applications.
Water Treatment: In water treatment plants, floating ball valves regulate the flow of water through filtration systems, pumps, and pipelines. These valves provide reliable control to ensure that water is treated effectively and distributed to communities safely.
Chemical Processing: Floating ball valves are used to control the flow of chemicals in various manufacturing processes. Their resistance to corrosion and ability to withstand high temperatures make them suitable for handling aggressive chemicals in the pharmaceutical, petrochemical, and industrial sectors.
HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, floating ball valves are used for controlling the flow of water and other fluids in cooling and heating circuits. These valves ensure that HVAC systems operate efficiently and maintain consistent temperatures.
Power Generation: Floating ball valves play a key role in controlling fluid flow in power plants. From cooling systems to high-pressure steam systems, floating ball valves provide reliable flow control and contribute to the overall safety and efficiency of power generation facilities.
When selecting a floating ball valve for your piping system, there are several key factors to consider:
Pressure and Temperature: Ensure that the valve is rated for the specific pressure and temperature conditions of your system. Floating ball valves are available in various pressure ratings, so it is essential to select the correct valve for your application.
Material Compatibility: Depending on the type of fluid being transported, choose a valve made from materials compatible with the fluid's chemical properties. Materials like stainless steel, bronze, and special alloys offer superior corrosion resistance.
Size and Flow Requirements: Consider the size of the piping and the required flow capacity to select the appropriate valve size. Floating ball valves come in various sizes to suit different pipeline dimensions and flow rates.
Automation Needs: If your application requires automated control, opt for floating ball valves that are compatible with pneumatic, electric, or hydraulic actuators. Automation provides greater precision and flexibility in controlling the fluid flow.
Floating ball valves are integral components in modern piping systems due to their reliable sealing capabilities, simple design, and ability to regulate flow in a wide range of applications. From controlling the flow of fluids in oil and gas pipelines to ensuring the efficiency of water treatment plants and chemical processing systems, floating ball valves are indispensable in ensuring system performance and safety. With their durable construction, low maintenance requirements, and versatility, floating ball valves continue to play a vital role in industries worldwide.
