Understanding Floating Ball Valves

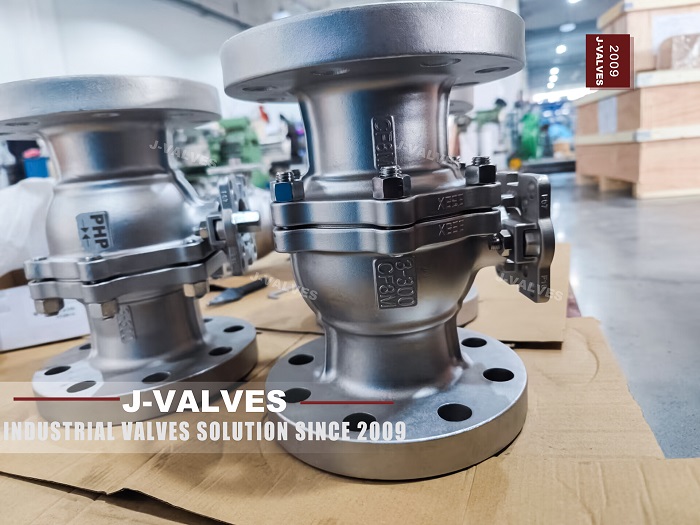

What are Floating Ball Valves?
Floating ball valves are a type of ball valve where the ball is not rigidly fixed but is allowed to float within the valve body. This design allows the ball to move slightly under the pressure of the fluid, ensuring a tight seal against the downstream seat. The floating nature of the ball provides a self-aligning feature that enhances the valve's sealing performance.
• Valve Body: The main structure that houses the ball and other components.
• Ball: The spherical element that controls the flow by rotating around its axis.
• Seats: The sealing elements that provide a tight seal when the ball is in the closed position.
• Stem: The component that connects the ball to the actuator, allowing for rotation.
• Actuator: The mechanism used to rotate the ball, which can be manual, electric, pneumatic, or hydraulic.
orking Principle of Floating Ball Valves
The sealing mechanism of a floating ball valve relies on the pressure of the fluid to push the ball against the downstream seat. When the valve is closed, the fluid pressure on the upstream side exerts a force on the ball, causing it to move slightly and press against the downstream seat. This pressure-induced movement ensures a tight seal, preventing fluid leakage.
Floating ball valves are designed to provide bidirectional sealing, meaning they can effectively seal in both directions of fluid flow. This is achieved through the following mechanisms:
1. Upstream Sealing: When fluid pressure is applied to the upstream side, the ball is pushed against the downstream seat, creating a tight seal.
2. Downstream Sealing: When fluid pressure is applied to the downstream side, the ball is pushed against the upstream seat, ensuring a tight seal in the reverse direction.
API 608 is a widely recognized standard that specifies the requirements for the design, construction, testing, and marking of ball valves, including floating ball valves. Compliance with API 608 ensures that these valves meet stringent quality and safety standards, making them suitable for a wide range of industrial applications.
• Design and Construction: The standard outlines the materials, dimensions, and construction methods to ensure valves can withstand specified pressures and temperatures.
• Pressure and Temperature Ratings: Valves must meet specified pressure and temperature ratings to ensure safe operation under different conditions.
• Testing and Inspection: Rigorous testing procedures, including hydrostatic and pneumatic tests, are required to verify the valve's integrity and performance.
• Marking and Documentation: Valves must be clearly marked with essential information, such as size, pressure rating, and material, and must be accompanied by detailed documentation.
Advantages of Floating Ball Valves
Floating ball valves provide reliable sealing in both directions, ensuring minimal leakage and maintaining system integrity. The bidirectional sealing capability is particularly useful in applications where fluid flow can reverse.
The design of floating ball valves allows for low torque operation, making them easier to actuate. This is especially beneficial in applications where manual operation is required or where energy efficiency is a priority.
Floating ball valves have a compact design, making them suitable for space-constrained applications. Their lightweight construction also reduces installation and maintenance costs.
The robust construction of floating ball valves ensures long-term durability and minimal maintenance. The use of high-quality materials and precision manufacturing processes enhances their reliability and service life.
