Introduction
Butterfly valves are widely used in industrial piping because of their compact structure and quarter-turn operation. Among different designs, Triple Offset Butterfly Valve and double offset butterfly valves have different sealing principles and application characteristics.

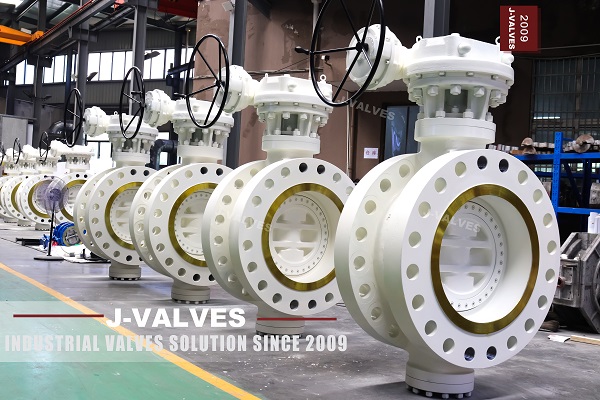

The Flanged Triple Offset Butterfly Valve is especially suitable for high-temperature and demanding industrial services because its three-offset geometry reduces friction between the disc and sealing surface.
J-VALVES provides customized triple offset butterfly valve solutions for oil and gas, petrochemical, marine, power, and industrial applications.
1. Triple Offset vs Double Offset Butterfly Valve
A double offset butterfly valve uses two shaft offsets to reduce friction between the disc and seat. However, some contact remains during the closing and opening process.
A Triple Offset Butterfly Valve adds a third offset and uses a conical sealing geometry. This allows the disc to move away from the seat during rotation, significantly reducing rubbing.
Main advantages include:
2. Flanged Triple Offset Butterfly Valve Structure
The main components include:
Valve body
Disc
Stem
Metal sealing system
Bearings
Packing
Flanged connections
The flanged design provides a secure connection with the pipeline and is suitable for large-diameter and higher-pressure applications.
Precision machining of the disc, stem, and sealing surfaces is important for maintaining reliable operation.
3. Working Principle
The Triple Offset Butterfly Valve operates through approximately 90° rotation.
In the open position, the disc is aligned with the flow direction. During closing, the three-offset geometry guides the disc toward the conical seat. Sealing occurs mainly at the final stage of rotation.
Because the disc does not continuously rub against the seat, friction and wear can be significantly reduced compared with conventional butterfly valve designs.
4. Engineering Advantages
A properly designed Flanged Triple Offset Butterfly Valve provides:
Metal Sealing: Suitable for high-temperature and thermal-cycling applications.
Reduced Friction: Minimizes unnecessary contact between disc and seat.
Reliable Shut-Off: Precision-machined sealing surfaces support consistent sealing performance.
Long Service Life: Reduced wear can contribute to longer service intervals.
5. J-VALVES Advantages
J-VALVES focuses on precision manufacturing and customized engineering.
Precision machining: Accurate control of disc, stem, and sealing surfaces.
Flexible materials: Carbon steel, stainless steel, alloy steel, and other materials can be selected according to service conditions.
Customized configurations: Valve size, pressure class, flange standard, sealing materials, and actuators can be customized.
Quality inspection: Dimensional inspection, material verification, pressure testing, and sealing checks help ensure product consistency.
6. Typical Applications
Triple offset flanged butterfly valves are commonly used in:
Conclusion
The key difference in Triple Offset vs Double Offset Butterfly Valve design lies in the sealing geometry. The triple offset configuration minimizes disc-to-seat friction and provides a durable metal-sealing solution for demanding applications.
With precision manufacturing, customized engineering, flexible material selection, and strict quality control, J-VALVES provides reliable Flanged Triple Offset Butterfly Valve solutions for high-temperature, high-pressure, and industrial pipeline applications.
