Understanding High-Temperature and High-Pressure Steam Systems
High-temperature and high-pressure steam systems are commonly found in industries such as power generation, oil and gas, and chemical processing. These systems operate at temperatures exceeding 500°F (260°C) and pressures up to 2,500 psi (172 bar) or higher. The valves used in these systems must be capable of withstanding these extreme conditions while providing reliable shutoff and minimal leakage.

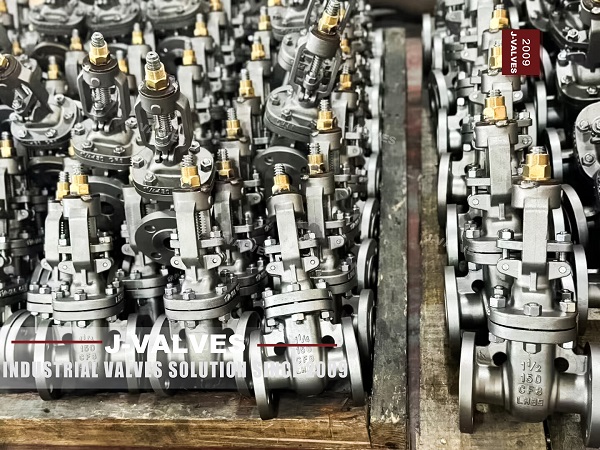

Material Selection for High-Temperature and High-Pressure Steam Valves
The choice of material for the valve body is critical, as it must withstand high temperatures and pressures without deformation or failure. Common materials used for high-temperature and high-pressure steam valves include:
• Carbon Steel (ASTM A105): Suitable for applications up to 650°F (343°C) and pressures up to 2,000 psi (138 bar). Carbon steel is known for its strength and cost-effectiveness.
• Alloy Steel (ASTM A350 LF2): Provides better low-temperature toughness and is suitable for applications up to 800°F (427°C) and pressures up to 2,500 psi (172 bar).
• Stainless Steel (ASTM A351 CF8 and CF8M): Offers excellent corrosion resistance and is suitable for applications up to 1,200°F (649°C) and pressures up to 2,500 psi (172 bar). Stainless steel is particularly useful in environments where corrosion resistance is essential.
The seat and seal materials must provide a tight seal under high temperatures and pressures. Common materials include:
• Graphite: Known for its excellent high-temperature performance and ability to maintain a seal even under extreme conditions. Graphite seats are often used in high-temperature steam valves.
• PTFE (Polytetrafluoroethylene): Provides excellent chemical resistance and low friction, making it suitable for applications up to 500°F (260°C). However, PTFE may not be ideal for the highest temperature ranges.
• Metal Seals: Metal-to-metal seals, often made from stainless steel or other high-temperature alloys, provide robust performance in high-temperature and high-pressure applications.
High-pressure steam valves must be designed to contain pressure effectively. Key design features include:
• Thickened Valve Body: Enhanced wall thickness to withstand high pressures without deformation.
• Reinforced Bonnet: A robust bonnet design to secure the valve internals and prevent leakage.
• Pressure Relief Mechanism: Some valves are equipped with pressure relief mechanisms to prevent over-pressurization and ensure safety.
Managing temperature is crucial in high-temperature applications. Design considerations include:
• Thermal Expansion Compensation: The valve design must account for thermal expansion to prevent stress-induced failures. This can be achieved through the use of expansion joints or flexible connections.
• Insulation: Proper insulation of the valve and associated piping can help maintain temperature stability and reduce heat loss.
Ensuring a leak-tight seal is essential for safety and efficiency. Design features include:
• Multiple Sealing Points: Using multiple sealing points, such as dual-disc gates or metal-to-metal seats, to enhance sealing performance.
• Advanced Gasket Technology: High-temperature gaskets made from materials like graphite or PTFE to ensure a reliable seal between flanges.
High-temperature and high-pressure valves often require specialized actuators. Considerations include:
• High-Torque Actuators: Electric or pneumatic actuators capable of providing the necessary torque to operate the valve under high-pressure conditions.
• Fail-Safe Mechanisms: Actuators equipped with fail-safe mechanisms to ensure the valve can be safely shut off in case of power failure or other emergencies.
