In industrial systems, filtersare essential components used to remove contaminants from liquids, gases, and other materials to ensure smooth operation, protect equipment, and maintain product quality. The right filter can improve system performance, extend the lifespan of machinery, reduce maintenance costs, and enhance overall operational efficiency. However, with the variety of filter types, materials, and configurations available, choosing the right filter for your specific industrial system can be a challenging task.
Identify the Type of Contaminants
The first step in selecting the right filter is to identify the type of contaminants your system needs to filter out. Contaminants can vary significantly depending on the nature of the industrial process. Common contaminants include:
By understanding the nature of the contaminants—whether solid, liquid, or gaseous—you can select the appropriate filter material, media, and configuration to effectively remove these impurities and maintain system cleanliness.
Particulate matter (dust, dirt, rust, and debris)
Chemical impurities (solvents, oils, acids, and gases)
Microorganisms (bacteria, fungi, algae)
Corrosive substances (salts, metals)
Understand Flow Requirements and System Design
The flow rate of your industrial system is crucial in determining the right filter. Filters need to be capable of handling the flow rate without causing excessive pressure drop, which can affect system efficiency and performance.
Flow rate: Determine the amount of fluid or gas passing through the filter at a given time. Filters should be sized to match your system’s flow requirements to prevent clogging or unnecessary resistance.
System pressure: Consider the pressure at which your system operates. Some filters are designed to work at high-pressure systems, while others are suitable for low-pressure or vacuum applications.
Filter capacity: Ensure that the filter can accommodate the volume of contaminants your system generates. Overloading a filter can result in failure and operational disruptions.
Select the Appropriate Filter Media
Filter media is the material through which the fluid or gas passes to trap contaminants. The selection of filter media depends on the nature of the contaminants and the required filtration efficiency. Common filter media include:
Each filter media type has specific characteristics that make it suitable for different filtration tasks, so it is important to match the media with the contaminants present in your system.
Mesh filters: Made from woven metal, mesh filters are ideal for removing large particles or debris from liquids and gases. They are often used in water filtration, oil filtration, and air filtration.
Cartridge filters: Cartridge filters use materials like pleated paper, fiberglass, or polypropylene to capture contaminants. They provide high filtration efficiency and are commonly used in chemical processes and pharmaceutical applications.
Activated carbon filters: These filters use a porous media to adsorb gases, odors, and chemicals. They are highly effective for removing organic compounds and are used in air purification and solvent recovery.
HEPA filters: High-Efficiency Particulate Air (HEPA) filters are highly effective at removing fine particles, including dust, pollen, and bacteria. These are often used in cleanroom environments, pharmaceutical applications, and hospital settings.
Consider Filtration Efficiency and Micron Rating
Filtration efficiency is a measure of how effectively a filter removes contaminants from a flow. The micron rating refers to the size of particles that a filter can capture, with lower micron ratings indicating the ability to capture finer particles. The appropriate micron rating depends on the level of filtration required for your system.
High filtration efficiency ensures that contaminants are effectively removed, preventing damage to equipment and maintaining the integrity of the product being processed.
Coarse filtration (above 10 microns): For removing larger particles such as rust, dirt, or scale, coarse filters with higher micron ratings (e.g., 50-100 microns) are suitable.
Fine filtration (1-10 microns): To capture smaller particulates, such as microorganisms, fine filters with lower micron ratings (e.g., 5-10 microns) are necessary.
Ultra-fine filtration (below 1 micron): For critical applications, such as pharmaceutical manufacturing or semiconductor production, ultra-fine filtration with sub-micron ratings (e.g., 0.2 microns or less) is required.
Evaluate the Operating Environment
The operating environment of your system will also influence your filter selection. Consider the following factors:
Temperature: Filters used in high-temperature environments, such as steam or hot liquids, must be able to withstand thermal stress without degrading. Materials like stainless steel or high-temperature resistant polymers are ideal for such applications.
Chemical compatibility: Ensure that the filter materials are compatible with the chemicals used in your system. For example, certain metals or polymers may degrade when exposed to aggressive acids, solvents, or oils.
Maintenance and cleaning: Consider how easy it is to clean and maintain the filter. Some filters, such as self-cleaning filters, are ideal for systems where contaminants accumulate rapidly and require frequent cleaning.
Filter Size and Configuration
The size of the filter and its configuration depend on the available space in your system and the specific needs of your operation. Filters come in various forms, including:
The filter size should be appropriate for the flow capacity and the volume of contaminants in your system. Over-sizing or under-sizing the filter can impact efficiency and performance.
Inline filters: These are installed directly in the pipeline and are ideal for systems with limited space.
Side-stream filters: These filters divert a portion of the flow for filtration, making them suitable for systems with high flow rates and varying contaminant loads.
Tank filters: Used in systems where the liquid or gas is stored in a tank before filtration. These filters are often used in water treatment and wastewater treatment plants.

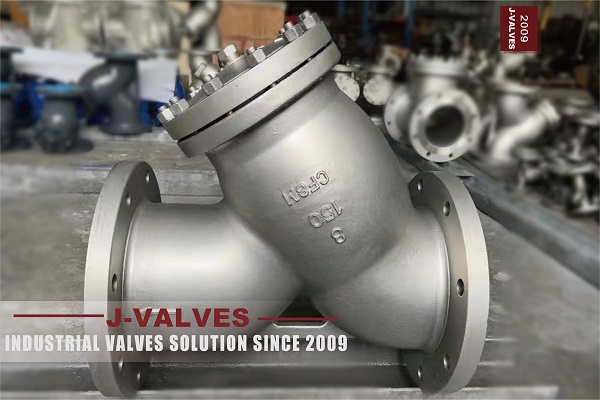

Strainers: Ideal for removing larger particles and debris from water, oil, and gas systems. They are commonly used in cooling water systems, pumps, and compressors.
Cartridge Filters: Suitable for chemical, pharmaceutical, and food processing applications. They offer high filtration efficiency and are available in a variety of materials.
Bag Filters: Used for liquid filtration in applications like paint spraying, pharmaceutical manufacturing, and food and beverage processing.
Vacuum Filters: Used in processes where filtration is combined with vacuum suction, such as in industrial filtration and mining operations.
Cyclone Separators: Ideal for removing heavy particulates from gases and liquids. They are widely used in oil refineries, mining, and petrochemical industries.
Selecting the right filter for your industrial system is crucial for ensuring the efficiency, safety, and longevity of your operations. By understanding the nature of the contaminants, system requirements, and filtration efficiency needed, you can make an informed decision on the best filter for your needs. Factors such as flow rate, micron rating, media material, and operating environment all play an essential role in the selection process.
