Understanding Duplex Type Strainer

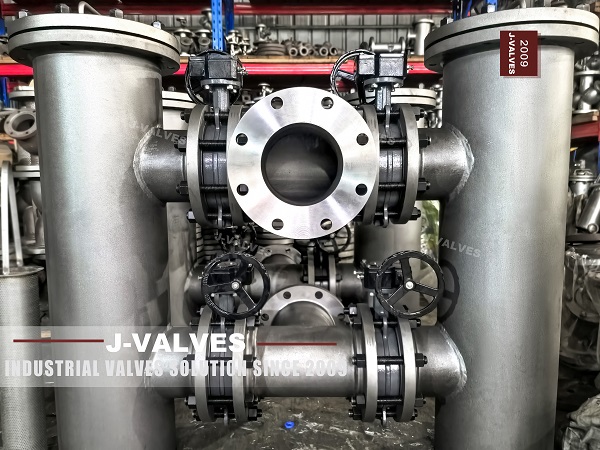

Duplex type strainer consist of two parallel filters, each equipped with valves that control the flow of fluid. The system allows for one filter to be isolated for maintenance or cleaning while the other remains operational, ensuring uninterrupted fluid flow.Key components include:
• Valve Bodies: The main structure that houses the valves and connects to the pipeline.
• Filter Elements: The filtering components that remove solid impurities from the fluid.
• Piping and Connections: The system of pipes and connections that direct fluid flow through the filters and valves.
When designing duplex type strainer, several factors must be considered:
• Material Selection: The material must withstand the operating pressures, temperatures, and corrosive nature of the fluid.
• Mechanical Strength: The valve bodies must be robust enough to handle mechanical stresses, including potential impacts.
• Corrosion Resistance: The material should resist corrosion to ensure long-term reliability and minimal maintenance.
• Flow Dynamics: The design should minimize pressure drop and ensure efficient fluid flow.
S32760 Super Duplex Stainless Steel: Characteristics and Impact Resistance
S32760 super duplex stainless steel is a high-performance alloy known for its excellent mechanical properties and corrosion resistance. It contains a balanced mixture of austenitic and ferritic phases, providing superior resistance to pitting and crevice corrosion.
• Mechanical Properties: High tensile strength (up to 800 MPa) and excellent fatigue resistance.
• Corrosion Resistance: Superior resistance to chloride-induced stress corrosion cracking and pitting.
• Impact Resistance: High impact strength, even at low temperatures, ensuring reliability in demanding environments.
To evaluate the impact resistance of S32760, several standardized tests are conducted:
• Charpy Impact Test: Measures the energy absorbed by a material during a sudden impact. S32760 typically exhibits high impact energy absorption, even at low temperatures.
• Tensile Testing: Evaluates the material's tensile strength and elongation properties, which are crucial for understanding its behavior under stress.
• Fatigue Testing: Assesses the material's ability to withstand cyclic loading, which is common in industrial applications.
• High-Strength Applications: Ideal for high-pressure and high-flow applications where mechanical strength is crucial.
• Corrosive Environments: Suitable for environments with high chloride concentrations, such as seawater and chemical processing.
• Low-Temperature Applications: Maintains high impact strength at low temperatures, ensuring reliability in cold environments.
Comparative Analysis with Other Materials
• Mechanical Strength: Lower tensile strength compared to S32760, making it less suitable for high-pressure applications.
• Impact Resistance: Good impact resistance but not as high as S32760, especially at low temperatures.
• Corrosion Resistance: Good resistance to corrosion but not as superior as S32760 in highly corrosive environments.
• Mechanical Strength: Lower tensile strength compared to S32760, making it less suitable for high-pressure applications.
• Impact Resistance: Good impact resistance but not as high as S32760, especially at low temperatures.
• Corrosion Resistance: Good resistance to corrosion but not as superior as S32760 in highly corrosive environments.
Nickel-Aluminum Bronze B148 C95800
• Mechanical Strength: High strength and hardness, making it suitable for high-wear applications.
• Impact Resistance: Excellent impact resistance, especially in environments with solid particles.
• Corrosion Resistance: Good resistance to corrosion in seawater but not as superior as S32760 in highly corrosive environments.
