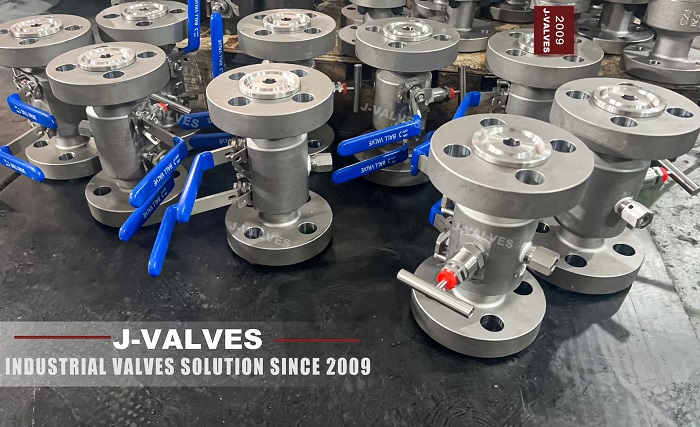

DOUBLE BLOCK AND BLEED (DBB) BALL VALVES are widely used in numerous industrial fields, and the fireproof and anti-static designs are crucial for their operational safety. Under the API 6FA standard, there are comprehensive safety redundancy mechanisms to ensure the reliable operation of BALL VALVES under special working conditions. The following will introduce the relevant content in detail.
1.Selection of Valve Body Materials
Materials with certain fireproof properties should be selected, such as some alloy steel materials. They can maintain relatively good structural strength in a high-temperature environment and are not prone to rapid softening and deformation. This helps prevent the ball valve from losing its ability to block the medium in case of accidents like fires and avoid greater hazards caused by the leakage of dangerous media.
2.Sealing Structure Design
Special high-temperature-resistant sealing materials, such as flexible graphite, are adopted. When encountering high temperatures during a fire, even if the conventional sealing materials fail, these high-temperature-resistant materials can still maintain the sealing effect to a certain extent, reducing the amount of medium leakage and buying more safety time to deal with the fire.
3.Application of Fireproof Coatings
Fireproof coatings are applied to the outer surface of the ball valve. These coatings can delay the transfer of heat to the inside of the valve body when a fire occurs, protect the internal key components and maintain the integrity of the overall structure, thus reducing the impact of the fire on the performance of the ball valve.
1.Arrangement of Conductive Components
By reasonably arranging conductive elements inside the ball valve, such as conductive springs and conductive rods, a good conductive path can be formed between the components that are prone to generating static electricity, such as the ball and the valve stem, and the valve body. This enables static electricity to be conducted away in a timely manner, preventing the accumulation of static electricity and potential dangers.
2.Requirements for Grounding Connections
The grounding connections of the ball valve are standardized, and the standard range of the grounding resistance is clearly defined to ensure that static electricity can be stably and effectively conducted into the earth. Generally, the grounding resistance should be controlled within the specified low value to ensure the reliable operation of the entire anti-static system.
Comparison Items | Key Points of Fireproof Design | Key Points of Anti-static Design |
Action Objects | Mainly deal with fire scenarios and prevent risks such as medium leakage caused by high temperatures. | Focus on the generation and accumulation of static electricity and avoid potential hazards such as fires and explosions caused by static electricity. |
Design Emphasis | Emphasize materials, seals and coatings to ensure the performance of the ball valve under high temperatures. | Focus on conductive components and grounding connections to ensure the effective removal of static electricity. |
Key Components | Valve body materials, high-temperature-resistant sealing materials, fireproof coatings, etc. | Conductive elements, grounding devices, etc. |
Through the dual designs of fireproof and anti-static features, a safety redundancy mechanism is established. Even in complex situations where a fire occurs simultaneously with static electricity problems, the DBB BALL VALVE can still rely on these designs to minimize risks and ensure the safety of industrial production. For example, during a fire, the fireproof design can maintain basic sealing and structural stability, while the anti-static design can prevent the leaked combustible medium from being ignited by static electricity.
The fireproof and anti-static designs and their safety redundancy mechanisms of the DOUBLE BLOCK AND BLEED (DBB) BALL VALVES under the API 6FA standard are of great significance. They provide a solid guarantee for the safe application of these BALL VALVES in various high-risk industrial environments. Enterprises should strictly follow the relevant requirements when designing and selecting such BALL VALVES.
