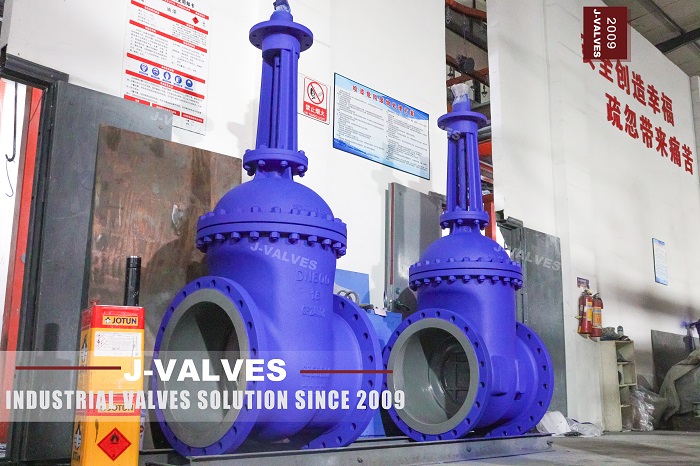

DN600 PN16 GP240GH Gate Valve Testing: Key Checks Before Delivery

In industrial valve applications, DN600 PN16 GP240GH gate valve testing is more than a routine factory procedure. It is a critical quality checkpoint that helps confirm whether the valve can perform reliably in real operating conditions. For power plants, petrochemical systems, metallurgy, district heating, and pipeline projects, testing is directly linked to safety, uptime, and maintenance cost.

A DN600 gate valve is a large, heavy-duty component. When it is designed for PN16 service and made from GP240GH material, the expectations for strength, sealing performance, and dimensional accuracy are even higher. That is why a proper test process must cover more than a simple open-and-close check.

I. Why Testing Matters

The purpose of testing is to verify that the valve meets design and project requirements before shipment. A well-executed test process helps ensure:

• the body and bonnet can withstand pressure safely,

• the seat and wedge provide reliable shutoff,

• the valve operates smoothly,

• the material and dimensions match the approved specification.

For a large-bore valve like DN600, even a small defect can create major operational problems later. That is why buyers and engineers pay close attention to testing records and acceptance results.

II. What Should Be Checked Before Testing

Before any pressure test begins, the valve should be reviewed against the technical documentation. Typical checks include:

• Nominal size: DN600

• Pressure class: PN16

• Material grade: GP240GH

• Valve type: wedge gate valve or flat gate valve

• End connection: flanged, butt-weld, or custom design

• Service media: water, steam, oil, or other industrial fluids

• Standard: project specification, API, EN, or other applicable standard

A mismatch in any of these items can affect the validity of the test. Material grade and pressure class are especially important because they define whether the valve is suitable for the intended duty.

III. Typical Test Items for a DN600 PN16 GP240GH Gate Valve

1. Visual and Dimensional Inspection

The first step is to inspect the valve body, bonnet, gate, and sealing surfaces for casting marks, cracks, dents, burrs, coating defects, or other visible issues.
Then, critical dimensions are checked against the drawing to confirm proper fit-up and installation readiness.

2. Material Verification

Material traceability is essential for GP240GH valves.
Manufacturers usually confirm heat numbers, material certificates, and, when required, perform chemical verification.
This gives the buyer confidence that the valve body material matches the approved specification.

3. Shell Pressure Test

The shell test checks the pressure-containing integrity of the valve body and bonnet.
The goal is to confirm that no leakage or structural abnormality appears under the specified test pressure.

4. Seat Leakage Test

The seat test verifies shutoff performance between the gate and seat rings.
A valve may pass the shell test and still fail the seat test, which is why both are necessary.
For large valves such as DN600, seat leakage performance is often a major acceptance point.

5. Operating Torque and Opening/Closing Check

The valve should open and close smoothly, with stable torque and no abnormal resistance.
If the operating torque is too high, it may indicate alignment issues, friction problems, or assembly defects.
This is especially important for manual, gearbox, pneumatic, or electric actuator configurations.

6. Non-Destructive Testing

Depending on project requirements, additional inspections may include ultrasonic testing, magnetic particle testing, penetrant testing, or radiographic examination.
These methods help identify internal or surface defects before shipment.

IV. Why Large-Bore Gate Valves Need More Rigorous Testing

The larger the valve, the more demanding the manufacturing process becomes.
A DN600 gate valve has heavier components, tighter assembly challenges, and a greater risk that small errors will affect final sealing performance.

In real projects, large valves are often installed in critical lines where downtime is expensive. That is why testing should be seen as a value-protection step, not just an added cost.

V. What Buyers Should Review During Acceptance

If you are responsible for procurement or project acceptance, focus on these points:

• complete test reports,

• traceable material documents,

• pressure values that match the standard,

• stable leakage results,

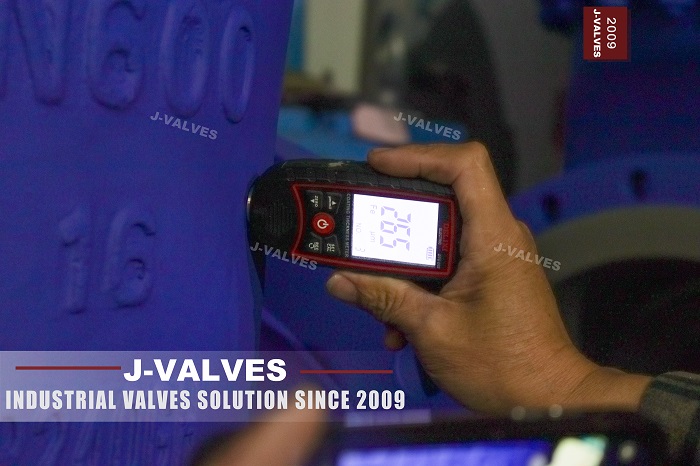

• proper coating and protection,

• nameplate information that matches the order.

These details often matter more than appearance. A reliable valve should be supported by clear test data and documentation.

VI. Conclusion

DN600 PN16 GP240GH gate valve testing is a comprehensive quality process that confirms material integrity, pressure resistance, sealing performance, and overall reliability. For demanding industrial systems, valves with complete test records and traceable documentation are far easier to trust in long-term service.

If your project requires a large-bore valve for high-value piping systems, testing is one of the clearest indicators of product quality.

FAQ

Q1: What is the most important part of gate valve testing?
A: The shell pressure test and seat leakage test are usually the most important because they directly determine whether the valve is safe and reliable in service.

Q2: Why are large gate valves harder to test?
A: Large valves are heavier, more complex, and more sensitive to dimensional or assembly errors, which can affect sealing and operation.

Q3: What is GP240GH commonly used for?
A: It is generally used in industrial valve applications that require a certain level of strength and heat resistance, depending on the media, temperature, and pressure conditions.
