How Do ASME B16.34 And API 6D Standards Affect DN400 PN160 A105 Fully Welded Ball Valve？

I. Introduction: Pipeline Valve Performance Depends on Authoritative Industrial Standards

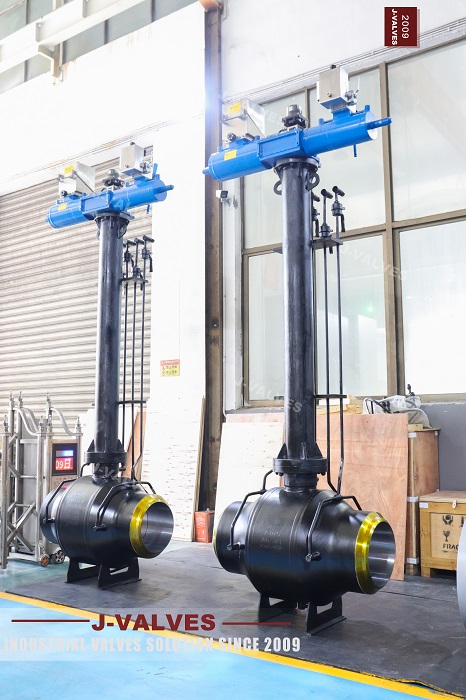

For high‑pressure long‑distance transmission pipelines, buried natural gas and district heating projects, DN400 PN160 A105 fully‑welded trunnion ball valve acts as critical isolation equipment. As shown in workshop photo, this variant is equipped with extended stem and pneumatic‑hydraulic actuator, designed for direct underground burial. The long stem transfers operating interface above ground, eliminating costly large‑size valve chambers and enabling remote pneumatic open‑close control.

Reliable service life is not determined only by A105 forged carbon steel material itself. It comes from combined requirements of ASME B16.34 and API 6D, two globally‑recognized industrial standards. Many procurement engineers mix‑up their scope: ASME B16.34 defines base pressure‑temperature ratings and body design rules; API 6D is dedicated pipeline‑valve specification covering field service conditions, type testing, material traceability and buried‑installation safety features. Only dual‑standard compliance ensures DN400 PN160 A105 fully welded ball valve passes strict acceptance for oil‑gas and high‑pressure municipal pipeline projects.

II. ASME B16.34: Establish Base Pressure‑Temperature Boundaries for DN400 PN160 A105 Ball Valve

A105 material PN160 rating under ASME B16.34

ASME B16.34 is general standard for steel valves with flanged or butt‑weld ends. Its core function defines maximum allowable working pressure corresponding to operating temperature for each material group.

For DN400 PN160 A105 forged steel fully welded ball valve, ASME B16.34 publishes official pressure‑temperature chart for A105 carbon steel. Nominal PN160 rating applies at ambient temperature; allowable working pressure will derate automatically when fluid temperature rises. If manufacturers ignore B16.34 derating curve and merely apply PN160 rating for high‑temperature service, body overpressure rupture risk will occur.

Body wall thickness & butt‑weld end requirements from ASME B16.34

For large‑size DN400 fully welded ball valve, ASME B16.34 provides calculation formula for minimum required wall thickness, prohibiting arbitrary wall‑thickness reduction. Butt‑weld end dimensions shall match ASME B16.25 to guarantee compatible welding bevel with site pipeline and minimize residual welding stress.

Important note: ASME B16.34 supplies fundamental design criteria, but does not contain complete pipeline‑valve type‑test requirements. Compliance with B16.34 alone cannot satisfy long‑distance transmission pipeline specification. API 6D compliance is mandatory supplement.

III. API 6D Pipeline Standard: Guarantee Service Reliability of DN400 PN160 A105 Fully Welded Ball Valve

API 6D design constraints for buried extended‑stem ball valve (match product photo)

The product in our picture is buried‑type fully welded ball valve with extended stem, pneumatic‑hydraulic actuator and double‑bleed‑vent assembly. This exact equipment falls within main scope of API 6D specification for pipeline valves.

1. Reinforced minimum wall thickness: Beyond ASME B16.34 baseline, API 6D adds extra safety margin accounting for pipeline water‑hammer surge load plus external soil compression stress for underground installation. DN400 large‑size high‑pressure body cannot adopt wall‑thickness from general‑purpose industrial valves.

2. Full‑bore requirement: To permit pipeline pigging operation, API 6D specifies full‑bore flow‑passage dimension to reduce transmission pressure drop.

3. Extended stem assembly for buried service: API 6D specifies anti‑corrosion requirement for underground stem assembly, anti‑blow‑out stem structure and sealing system, preventing external leakage under humid corrosive soil environment.

Mandatory testing, inspection & material traceability per API 6D

While ASME B16.34 focuses on design calculation, API 6D enforces full‑range factory validation: hydrostatic shell test, bidirectional high‑pressure seat test, low‑pressure gas‑seat test, fire‑safe test and full material traceability for A105 forging heat numbers.

Many low‑cost competitors only perform simple hydrostatic test and skip API 6D type‑test sequence. When deployed in buried high‑pressure pipelines, such valves may suffer internal or external leakage. Repair work for underground DN400 valve causes enormous pipeline shutdown losses.

IV. ASME B16.34 VS API 6D: Understand Dual‑Standard Logic for DN400 PN160 A105 Ball Valve

Project recommendation: When sourcing DN400 PN160 buried fully welded ball valve, do not only specify ASME B16.34 compliance. API 6D conformity shall be required simultaneously. ASME B16.34 is design baseline; API 6D delivers real‑world pipeline‑application safety protection. Neither standard should be omitted.

V. Typical Application of DN400 PN160 A105 Extended‑Stem Fully Welded Ball Valve

The dual‑standard pneumatic extended‑stem fully welded ball valve shown in photograph is widely adopted for below‑mentioned projects:

1. Natural gas long‑distance transmission trunk lines & high‑pressure city gas networks (direct buried installation)

2. High‑temperature high‑pressure district heating main pipelines

3. Petroleum process pipelines, isolation valves at compressor stations & heat‑exchange facilities

4. Projects requiring above‑ground pneumatic actuation while valve body stays underground, to cut valve‑chamber civil‑engineering investment.

One‑piece fully‑welded A105 forging eliminates potential leakage joints from bolted body construction. Combined with ASME B16.34 plus API 6D requirements, the valve achieves long‑term maintenance‑free underground operation up to approximately 30‑year design life.

VI. Key Points for Procurement & Project Acceptance

1. Verify material certificate: A105 forged steel body material report shall correspond with ASME B16.34 material group classification.

2. Distinguish standard scope: ASME B16.34 ≠ API 6D. ASME B16.34 applies for all steel valves; API 6D is dedicated product specification for pipeline service.

3. For buried extended‑stem version, not only valve body: extended stem assembly, bleed‑vent piping and actuator support structure shall also satisfy API 6D structural requirements.

4. Delivery documentation: Request official pressure‑temperature rating sheet, shell & seat test report, complete material traceability documents as required by API 6D.

VII. Conclusion

ASME B16.34 lays fundamental framework for pressure‑temperature rating and mechanical design of DN400 PN160 A105 fully welded ball valve. API 6D upgrades general‑purpose steel valve to genuine pipeline‑grade hardware, adding special reinforcement for underground burial, water‑hammer impact, pigging and multi‑decade field service. For large‑size high‑pressure buried‑pipeline projects, dual‑standard compliance forms the most critical technical barrier preventing leakage and premature in‑service failure.
