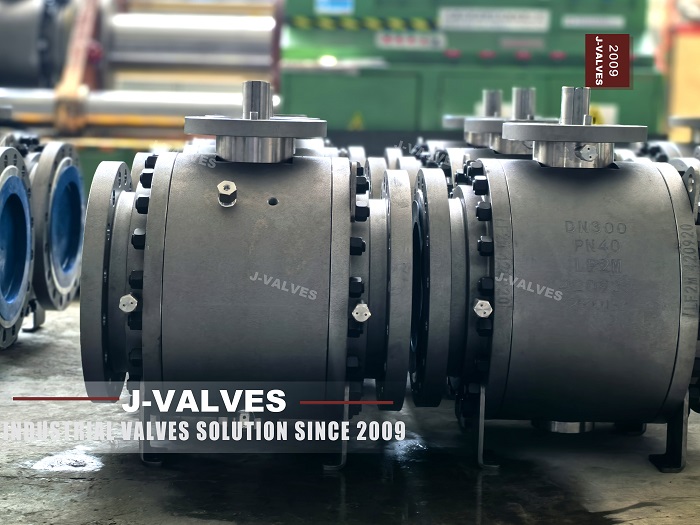

In the globalized industrial market, valve products need to meet the standard requirements of different countries and regions in order to be applied in a wider range of fields. As a remarkable product, the J-VALVES DN300 PN40 TRUNNION BALL VALVE needs to meet the corresponding specifications in multiple key aspects to achieve compatibility with several important standards such as API 6D, ISO 17292, and GB/T 12237. Now, let's discuss in detail how it meets these standards. Through comparative analysis, you can have a clearer understanding of the secrets within.
· API 6D
Formulated by the American Petroleum Institute, it is an authoritative standard for pipeline valves used in the oil and gas industries. It focuses on the design, manufacturing, inspection, and installation of valves under harsh working conditions, aiming to ensure the reliable operation of valves in complex environments such as high pressure, high corrosion, flammability, and explosiveness. It is widely used in global energy-related industries.
· ISO 17292
This is a standard introduced by the International Organization for Standardization. It comprehensively regulates ball valves from an international perspective, taking into account the general needs of different countries and regions. It emphasizes the universality, performance stability, and adaptability of ball valves to various international pipeline systems, helping ball valve products to circulate without obstacles in global trade.
· GB/T 12237
It is a Chinese national standard that clearly stipulates the technical requirements, test methods, and inspection rules for BALL VALVES in combination with the actual situation of the domestic industry. It focuses on the applicability, ease of operation, and simplicity of maintenance of products in different domestic industrial fields, ensuring that it can meet the usage requirements of numerous domestic engineering projects.
Comparison Items | API 6D | ISO 17292 | GB/T 12237 |
Valve Body Structure | For the DN300 PN40 specification, the valve body is required to have high strength and high toughness. The wall thickness is thickened and reasonable stiffeners are added to cope with high pressure, high temperature, and medium impact. Welding should undergo non-destructive testing to ensure integrity. | It emphasizes reasonable and universal structure. The wall thickness is calculated according to working conditions to ensure a smooth flow passage, and the external dimensions are conducive to installation and standardized production. | In combination with domestic situations, the shape is optimized on the basis of ensuring strength to facilitate connection with domestic pipe fittings, and the process quality is controlled to improve durability. |
Trunnion Design | High-performance alloys are used and heat-treated to have excellent strength and stiffness. The connection structure is sealed and anti-loosening to ensure reliable operation. | It meets the support function according to international specifications, with standardized dimensions and installation. Surface treatment is carried out to improve wear and corrosion resistance. | Taking into account the convenience of operation, materials with high cost-performance ratio are selected, the connection is firm, and the probability of failure in domestic projects is reduced. |
Ball Design | Top-notch corrosion-resistant and wear-resistant alloys are used, and high precision requirements for roundness, etc. are imposed to ensure good sealing and operation in complex environments. | The performance of the ball is balanced, and materials and processes are optimized according to working conditions to achieve stable performance. | The surface of the ball is treated in combination with the characteristics of domestic media to improve the anti-wear ability and ensure smooth operation and good sealing under domestic working conditions. |
Comparison Items | API 6D | ISO 17292 | GB/T 12237 |
Valve Body Materials | High-end alloys verified in Europe and the United States are selected, and the qualifications of suppliers are reviewed to ensure the high quality of materials. | Materials that conform to international standard specifications are accurately matched according to working conditions, with emphasis on universality and availability. | Based on domestic resources, high-quality materials that meet domestic standards are preferentially selected, and the procurement and inspection links are strictly controlled. |
Sealing Materials | Special high-performance materials are used, aiming for nearly zero leakage under harsh working conditions and requiring long-term resistance to extreme environments. | General sealing materials are selected and parameters are adjusted according to working conditions to ensure reliable sealing performance. | Materials with high cost-performance ratio are comprehensively considered to meet domestic requirements, and the application of new domestic materials is explored and their performance is tested. |
Comparison Items | API 6D | ISO 17292 | GB/T 12237 |
Pressure Ratings | Strict ranges and test requirements are specified for DN300 PN40. The details of high-pressure tests are strictly controlled to ensure reliable operation in high-pressure and ultra-high-pressure environments. | It is reasonably defined according to international principles combined with working conditions. Test methods and acceptance criteria emphasize universality and operability. | It is scientifically divided according to common domestic pressure situations, in line with domestic habits, and adapted to surrounding equipment to ensure accurate pressure bearing. |
Flow Coefficients | A large number of working conditions are simulated, and the coefficients at different opening degrees are determined through experiments. Complex factors are considered to provide a basis for energy transportation projects. | Coefficients are determined by combining models and verification to meet the flow requirements of international general working conditions and provide references for global users. | Referring to international methods and modified and improved in combination with the situation of domestic media and pipelines, it meets the needs of domestic flow calculation and control. |
Sealing Performance | Aiming at nearly zero leakage, it is measured by advanced means and strict standards. High requirements are imposed in the case of dangerous media to ensure production safety. | The leakage amount is specified according to international general standards, and the detection methods are simple and accurate to ensure the sealing requirements of global projects. | The leakage amount is specified according to domestic standards, and the detection methods are simple and repeatable to ensure the normal use of domestic projects. |
When it comes to international oil and gas projects, especially in Europe and the United States, due to the authority and wide applicability of the API 6D standard in the local industries, choosing the J-VALVES DN300 PN40 TRUNNION BALL VALVE that meets the API 6D standard can better meet the local engineering requirements, acceptance specifications, and customer expectations, ensuring the smooth implementation and long-term stable operation of the project.
If the product is mainly targeted at the global general market and pursues smooth application in different countries and regions, then the BALL VALVE that meets the ISO 17292 standard is a good choice. It can perform well in terms of universality, performance stability, and adaptability to international pipeline systems, reducing trade and usage obstacles caused by standard differences.
For domestic industrial projects, the BALL VALVE that meets the GB/T 12237 standard has a higher degree of fit with the domestic engineering environment, supporting facilities, and operation habits. The procurement cost is relatively more reasonable, and after-sales maintenance is also more convenient, which can well meet the usage requirements of various domestic industrial fields.
In conclusion, through careful design, strict material selection, and precise performance control, the J-VALVES DN300 PN40 TRUNNION BALL VALVE can meet the requirements of multiple standards such as API 6D, ISO 17292, and GB/T 12237. It has its unique advantages in different market and project scenarios. Users can make reasonable selections according to their actual needs to ensure that the valves can play the best performance in practical applications and ensure the smooth progress of industrial production.
