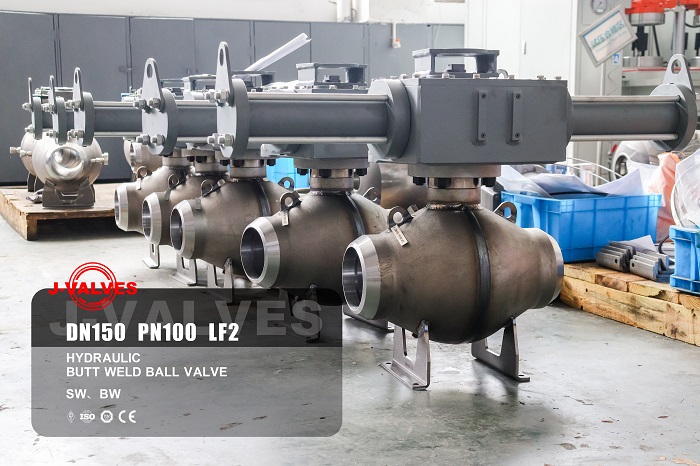

In high-pressure piping systems, valves do more than open and close flow. They protect process stability, improve safety, and help ensure long-term system performance. For projects that demand strong sealing, dependable operation, and high structural integrity, the DN150 PN100 LF2 hydraulic butt-weld ball valve is a practical and high-value option.
This type of valve is widely used in oil and gas, chemical processing, energy systems, and low-temperature pipelines where pressure resistance and operational reliability matter most.
Here is a simple breakdown of the specification:
DN150: Nominal diameter of 150 mm, suitable for medium-to-large pipelines.
PN100: Nominal pressure rating of 100 bar, indicating high-pressure service capability.
LF2: A commonly used low-temperature carbon steel forging material with good toughness in cold conditions.
Hydraulic: Actuated by hydraulic power for smooth and controlled operation.
Butt-weld: End connections are welded directly to the pipeline, offering high strength and fewer leakage points.
Together, these features make the valve suitable for demanding industrial systems rather than general-purpose service.
In high-pressure environments, the main challenge is not only opening and closing the valve. The real question is whether it can perform reliably over time.
Butt-weld ends create a more continuous piping system and reduce potential leak paths compared with many mechanical joint designs.
Hydraulic operation provides strong and steady driving force, which is especially useful for larger valves, remote control systems, and high-load service.
LF2 is commonly selected for cold service applications because it offers better toughness and resistance to brittle failure in low temperatures.
Ball valves are known for excellent shutoff performance. With proper seat design and precision machining, sealing reliability can be further improved.
The DN150 PN100 LF2 hydraulic butt-weld ball valve is commonly used in:
Oil and gas transmission lines
LNG and cryogenic or low-temperature pipelines
High-pressure chemical process lines
Power and energy systems
Industrial automation pipelines
Remote-operated safety shutdown systems
When fast shutoff, automation, and pressure resistance are required, this valve type is often a strong candidate.
Choosing the right valve means looking beyond the model number.
PN100 is a pressure class, but the real working conditions must still be reviewed carefully.
Corrosive media, solids, low-temperature fluids, or flammable media can all affect seat materials and sealing design.
Hydraulic valves may need interlocks, remote control, or emergency shutdown functions depending on the system.
Butt-weld installation requires proper welding quality control, inspection, and site readiness.
Even though butt-weld connections are robust, maintenance space should still be considered in the piping layout.
In critical systems, a valve is not just a component. It is part of the safety and reliability strategy.
This valve type offers:
Good automation compatibility
Stable operation
Lower leakage risk
Strong high-pressure performance
Better suitability for long-term service
For projects that prioritize reliability over short-term cost, these advantages are often decisive.
A simple way to judge suitability is to ask:
Is the system operating under high pressure?
Does the line require remote or automated control?
Does the media demand strong sealing and suitable material performance?
If the answer is yes to two or more of these questions, the DN150 PN100 LF2 hydraulic butt-weld ball valve is worth serious consideration.
The DN150 PN100 LF2 hydraulic butt-weld ball valve is designed for demanding industrial conditions. It combines high-strength welded connections, LF2 material advantages, and hydraulic actuation to deliver stable, safe, and efficient performance in high-pressure and low-temperature applications.
For engineers and procurement teams looking for a dependable shutoff solution, this valve type deserves a place on the shortlist.
Q1: Is DN150 PN100 LF2 suitable for low-temperature service?
Yes, LF2 is commonly used for low-temperature applications, but the actual temperature range should always be verified against the project requirements.
Q2: What is the advantage of hydraulic actuation?
Hydraulic actuation provides strong force and smooth movement, making it suitable for large valves and demanding control systems.
Q3: Is butt-weld better than flanged connection?
Neither is universally better. Butt-weld is often preferred for high-pressure systems where structural integrity and reduced leakage points are important.
