 Material Selection And Performance Comparison of J-VALVES DBB Flanged Ball Valves under High Temperature And High Pressure Conditions

I. REQUIREMENTS FOR VALVE MATERIALS UNDER HIGH TEMPERATURE AND HIGH PRESSURE CONDITIONS

High temperature and high pressure conditions impose extremely stringent requirements on valve materials. Firstly, the materials need to have good high-temperature resistance and be able to maintain their mechanical properties and chemical stability under extreme temperatures. Secondly, the materials must possess sufficient strength and toughness to withstand the impact of high-pressure fluids. In addition, good corrosion resistance and wear resistance are also essential, especially when dealing with corrosive media or fluids containing solid particles.

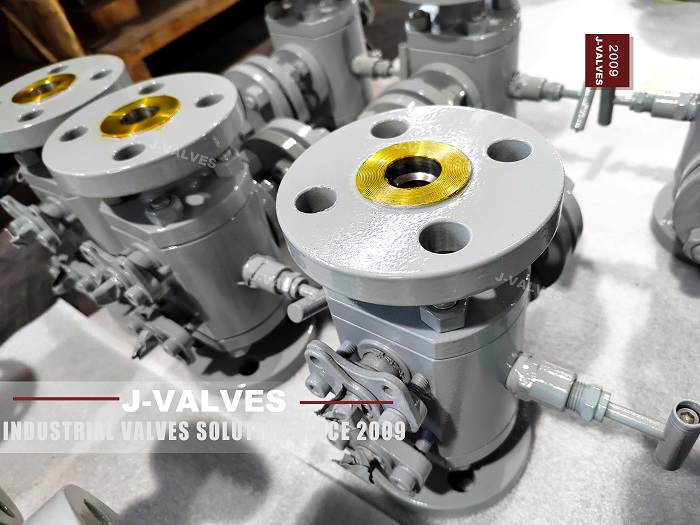

DBB Flanged Ball Valve (1)


II. COMMON MATERIALS AND THEIR PROPERTIES OF J-VALVES DBB FLANGED BALL VALVES

(1) Valve Body Materials
The valve body is the core component of the
BALL VALVE, and the choice of its material plays a decisive role in the overall performance of the valve. Common valve body materials include carbon steel, stainless steel, and alloy steel. Carbon steel has good mechanical properties and cost advantages, but its corrosion resistance is poor, so it is suitable for working conditions with non-corrosive media. Stainless steel has excellent corrosion resistance and oxidation resistance and can adapt to a variety of complex chemical environments. Alloy steel exhibits higher strength and toughness under high temperature and high pressure environments and is the preferred material for high temperature and high pressure conditions.


(2) Valve Core and Valve Seat Materials
The materials of the valve core and valve seat are directly related to the sealing performance of the valve. Hard sealing materials such as tungsten carbide and chromium carbide are widely used in high temperature and high pressure conditions. These materials have high hardness and good wear resistance. In addition, some high-temperature alloys such as nickel-based alloys are also used to manufacture valve cores and valve seats to improve their erosion resistance.


(3) Sealing Ring Materials
The sealing ring is a key component to ensure the sealing performance of the valve. Under high temperature and high pressure conditions, metal sealing rings or high-temperature rubber sealing rings are usually adopted. Metal sealing rings have good high-temperature resistance and mechanical strength, but their sealing performance may be affected by machining accuracy. High-temperature rubber sealing rings have good elasticity and sealing performance, but they may age at high temperatures.


III. COMPARATIVE ANALYSIS OF MATERIAL PROPERTIES

(I) Comparison of Strength

Material Type

Tensile Strength (PN)

Yield Strength (PN)

Carbon Steel

4500 - 6000

2500 - 3500

Stainless Steel (316L)

5150

1700

Alloy Steel (12Cr13)

8000

5000

High-Temperature Alloy (Nickel-Based Alloy)

10000

7000

It can be seen from the above table that alloy steel and high-temperature alloy are significantly superior to carbon steel and stainless steel in terms of strength. This makes them more suitable for high-temperature and high-pressure working conditions and enables them to withstand higher pressures and temperatures.


(II) Comparison of Corrosion Resistance

Yield Strength (PN)

Corrosion Resistance

Carbon Steel

Poor, easily corroded

Stainless Steel (316L)

Excellent, resistant to multiple chemical media

Alloy Steel (12Cr13)

Good, resistant to weak acids and alkalis

High-Temperature Alloy (Nickel-Based Alloy)

Excellent, resistant to strongly corrosive media

Stainless steel and high-temperature alloy perform outstandingly in terms of corrosion resistance. Especially high-temperature alloy can maintain good performance in strongly corrosive media, which makes them widely used in the chemical and petroleum industries.


(III) COMPARISON OF WEAR RESISTANCE

Material Type

Wear Resistance

Carbon Steel

General

Stainless Steel (316L)

Medium

Alloy Steel (12Cr13)

High

High-Temperature Alloy (Nickel-Based Alloy)

Very High

High-temperature alloy and alloy steel perform outstandingly in terms of wear resistance. These materials can effectively resist wear and extend the service life of the valves through surface hardening treatment or alloying.


IV. CONCLUSION

Under high temperature and high pressure conditions, the material selection for J-VALVES DBB FLANGED BALL VALVES needs to comprehensively consider factors such as strength, corrosion resistance, and wear resistance. Due to their excellent properties, alloy steel and high-temperature alloy have become the preferred materials for high temperature and high pressure conditions. However, the selection of materials also needs to be optimized according to specific working conditions to ensure that the valve can achieve the best performance in practical applications. Through reasonable material selection, J-VALVES DBB FLANGED BALL VALVES can achieve reliable sealing and long-term stable operation in complex high temperature and high pressure environments.

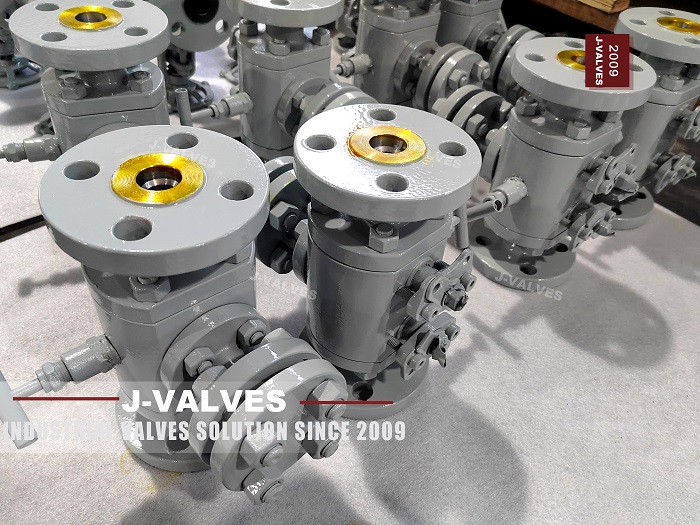

DBB Flanged Ball Valve (2)


In future research and development, further optimizing the performance and cost-effectiveness of materials will be the key to improving the competitiveness of J-VALVES DBB flanged ball valves. Meanwhile, with the continuous emergence of new materials and new technologies, the performance of J-VALVES DBB FLANGED BALL VALVES will also continue to improve to meet the increasingly stringent industrial requirements.
