In industrial systems, CHECK VALVES and BALL VALVES are two common types of valves, and they play important roles in fluid control. However, there are significant differences between these two types of valves in terms of structure, working principle, application scenarios, as well as advantages and disadvantages. This article will conduct a comprehensive comparison between check valves and ball valves in tabular form to help readers better understand their applicable scopes and the pros and cons.
Characteristics | ||

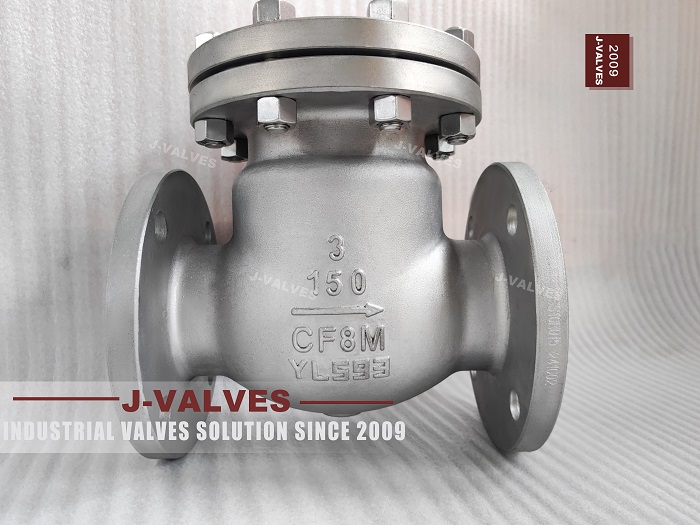

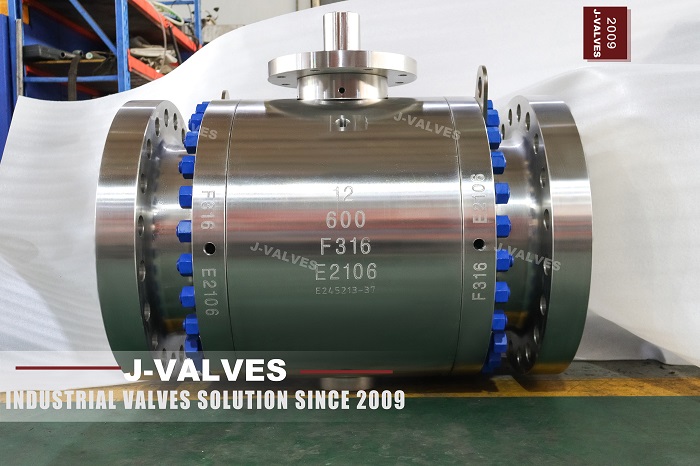

Definition | A check valve is a kind of one-way valve that automatically opens and closes relying on the flow or pressure of the medium to prevent the backflow of fluid. | A ball valve is a rotary valve that controls the opening and closing of fluid by rotating the ball 90 degrees around the valve stem. |
Working Principle | It realizes automatic opening and closing by utilizing the pressure difference when the flow direction of the medium changes. | It cuts off or allows the flow of fluid by rotating the ball. |
Main Functions | Prevent the backflow of the medium and protect the safety of equipment and pipelines. | Control the flow direction of fluid, regulate the flow rate, and is applicable to various working conditions. |
Advantages | - Automatically open and close, with simple operation. | - Low fluid resistance, quick in opening and closing. |
Disadvantages | - Not suitable for occasions where frequent flow rate regulation is required. | - Slower in opening and closing speed, not suitable for emergency cut-off. |
Application Scenarios | - Drainage pump systems, steam systems, water supply systems, etc. | - Industrial pipeline systems, petroleum, chemical, water treatment and other fields. |
Installation Requirements | - The installation direction must be strictly in accordance with the flow direction. | - Flexible in installation, can be installed horizontally or vertically. |
SUMMARY:
Both CHECK VALVES and BALL VALVES have their own advantages and disadvantages and are applicable to different industrial scenarios. Check valves, with their simple and reliable characteristics, are widely used in occasions where preventing the backflow of the medium is required. However, their functions are relatively single, and they are not suitable for environments where frequent flow rate regulation or high pressure differences are involved. On the other hand, ball valves, with the advantages of good sealing performance, flexible operation and a wide range of applications, perform excellently in complex working conditions where precise control of flow rate and pressure is needed.
