Check valves are essential components in fluid systems, designed to allow flow in one direction while preventing backflow. They protect pumps, compressors, and other equipment from damage caused by reverse flow. Understanding the classification of check valves is critical for engineers and system designers to select the appropriate valve for specific operational conditions, fluid types, and pressure ranges.
Check valves operate automatically based on fluid flow:
When fluid flows in the forward direction, the valve opens, allowing unrestricted flow.
When fluid attempts to reverse, the valve closes, preventing backflow.
The mechanism relies on internal components such as a disc, swing, or piston, and the design determines the valve’s classification and performance characteristics.

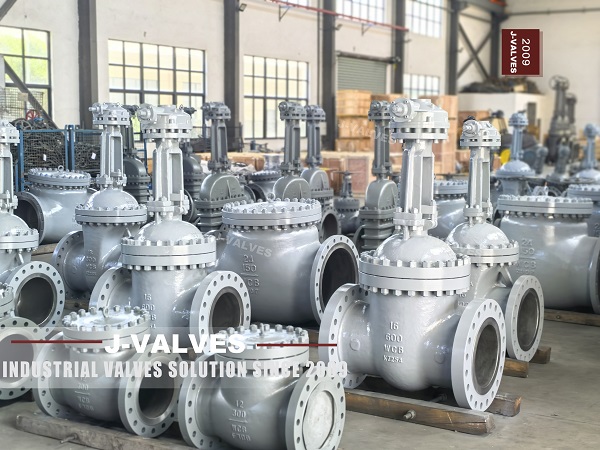

Design: The disc is mounted on a hinge or pivot, allowing it to swing open with forward flow and close when flow reverses.
Applications: Low- to medium-pressure systems, water pipelines, HVAC, and steam lines.
Advantages: Simple design, low cost, and suitable for horizontal or vertical installation.
Limitations: Larger size may be required for high flow; slower closing can cause water hammer.
Design: The disc or piston moves linearly along the flow axis, lifting off the seat when flow is forward.
Applications: High-pressure pipelines, steam and oil systems.
Advantages: Can handle high pressures and velocities; precise shutoff.
Limitations: Requires vertical installation for gravity-assisted closure in some cases.
Design: A ball inside a cage or seat moves with flow, sealing against reverse flow.
Applications: Fuel systems, chemical processing, and low-to-medium pressure pipelines.
Advantages: Compact design, resistant to clogging in particulate-laden fluids.
Limitations: Limited for large-diameter pipelines.
Design: Flexible diaphragm acts as the sealing element, moving to allow forward flow and sealing when flow reverses.
Applications: Sanitary, chemical, and corrosive fluid systems.
Advantages: Simple, lightweight, corrosion-resistant, and good for low-pressure applications.
Limitations: Not suitable for high-temperature or high-pressure fluids.
Design: Two spring-loaded plates pivot on a central hinge, providing rapid closure.
Applications: Oil & gas, water treatment, and high-flow pipelines.
Advantages: Compact, lightweight, low pressure drop, and fast response to prevent water hammer.
Limitations: Not ideal for extremely high debris content fluids without additional filtration.
Carbon Steel Check Valves: Cost-effective, suitable for moderate pressure and temperature fluids.
Stainless Steel Check Valves: Corrosion-resistant, suitable for chemical, food, and oil systems.
Alloy Steel and High-Performance Materials: Designed for high temperature, high pressure, and aggressive fluids.
When selecting a check valve, consider:
Flow Rate and Pressure: Determines the suitable valve type and size.
Fluid Type: Corrosive, viscous, or particulate-laden fluids may require specific materials or structural designs.
Installation Orientation: Swing, lift, and dual-plate valves may have preferred installation positions.
Response Time: Fast-closing valves prevent water hammer in sensitive pipelines.
Maintenance Requirements: Some designs allow easier inspection and replacement of internal components.
Check valves are used across a wide range of industries:
Water Treatment Plants: Prevent reverse flow in pumps and filtration systems.
Oil and Gas Pipelines: Protect compressors and downstream equipment from backflow.
Chemical Processing: Maintain unidirectional flow for corrosive or hazardous fluids.
HVAC Systems: Prevent reverse circulation in chilled or hot water loops.
Understanding the classification of check valves by structure, material, and operational characteristics is essential for designing reliable and efficient fluid systems. Selecting the appropriate check valve ensures:
System protection from backflow damage.
Optimized flow efficiency and reduced pressure drop.
Long-term reliability and lower maintenance costs.
Proper valve selection based on flow rate, pressure, fluid type, and installation orientation guarantees safe and efficient operation in diverse industrial applications.
