Check valves, also known as non-return valves, are essential components in hydraulic and pneumatic systems. These valves ensure that fluid or air flows in only one direction, preventing backflow that could otherwise cause damage or inefficiencies. By maintaining the proper direction of flow, check valves help protect pumps, compressors, and other critical equipment in a system.
Check valves operate by automatically allowing fluid or gas to flow in one direction while preventing backflow. The valve consists of a body, a disc (or ball), and a spring. When fluid flows in the correct direction, the pressure forces the disc or ball open, allowing the flow to pass. When the flow attempts to reverse, the disc or ball closes, blocking the backflow.
This simple yet effective design ensures that pressure within the system is maintained, and critical components such as pumps, motors, and cylinders are protected from potential damage caused by reverse flow.
One of the primary roles of check valves in hydraulic and pneumatic systems is to prevent backflow. Backflow can cause a variety of issues, including:
Damage to Pumps and Motors: Backflow can damage sensitive components such as pumps, motors, and compressors, leading to costly repairs and downtime.
Pressure Loss: Reverse flow can cause a loss of pressure in the system, disrupting the performance of hydraulic cylinders and pneumatic actuators.
System Contamination: In some cases, backflow can lead to the contamination of fluid or air, compromising the integrity of the system.
By ensuring that fluid or air only flows in one direction, check valves prevent these issues, contributing to the longevity and reliability of the entire system.
Check valves help maintain consistent pressure and flow throughout a hydraulic or pneumatic system. By eliminating the risk of backflow, the system operates more efficiently. In hydraulic systems, this ensures that the pressure required for lifting, pushing, or controlling machinery is maintained without interruption. In pneumatic systems, check valves help ensure that air flows smoothly through compressors and cylinders, optimizing performance and reducing energy consumption.
In both hydraulic and pneumatic systems, check valves act as a safeguard against system overloads caused by reverse pressure. When the system experiences pressure spikes or reversals, check valves close to prevent damage. This prevents issues such as:
Excessive wear and tear: Overloading can lead to premature failure of components.
Pressure surges: Surge protection is essential for maintaining the integrity of the system.
Check valves also reduce the risk of contamination in hydraulic and pneumatic systems. Backflow can introduce dirt, debris, or contaminated fluid into the system, which can clog filters, wear out seals, and degrade the performance of sensitive components. By preventing backflow, check valves help maintain the cleanliness and integrity of the entire system.
Installing check valves in hydraulic and pneumatic systems provides a cost-effective solution for preventing costly repairs and reducing maintenance needs. By protecting critical components and ensuring consistent system performance, check valves help lower the overall operational costs of a system. The low cost and reliability of check valves make them a valuable investment for both industrial and commercial applications.
Check valves come in a variety of designs, each suited for specific applications. Some of the most common types of check valves used in hydraulic and pneumatic systems include:

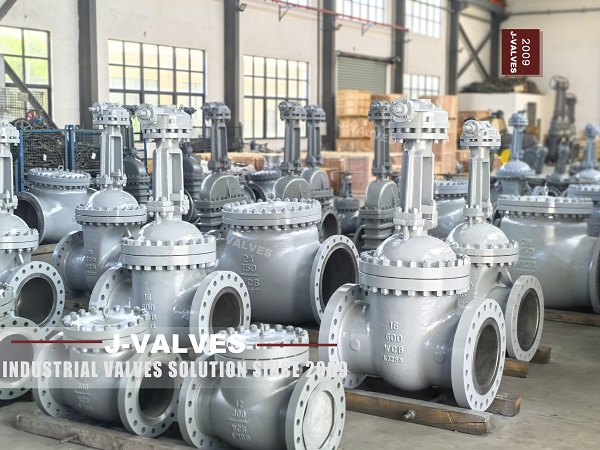

Swing check valves are one of the most common types used in larger systems. They feature a disc that swings open and closed on a hinge. Swing check valves are ideal for applications with higher flow rates and where low-pressure drop is required. These valves are commonly used in hydraulic pipelines and pneumatic systems that handle large volumes of fluid or gas.
Ball check valves use a spherical ball that moves to open and close the valve. They are used in smaller systems where space is limited or where the flow rate is lower. These valves are ideal for protecting small pumps and compressors in both hydraulic and pneumatic systems.
A spring-loaded check valve uses a spring mechanism to hold the valve in the closed position until fluid or air pressure forces it open. These valves are commonly used in applications where precise flow control is needed, and where the system must maintain specific pressures.
Diaphragm check valves use a flexible diaphragm to control flow. These valves are highly reliable and are used in systems where tight sealing is required to prevent leakage. They are commonly used in sensitive systems such as fluid control and pneumatic circuits.
Pump Protection: In hydraulic systems, check valves prevent backflow from returning to the pump, protecting it from damage and ensuring proper flow direction.
Cylinder Control: Hydraulic cylinders use check valves to prevent fluid from flowing back when pressure is lost, ensuring accurate movement and operation.
Hydraulic Lines: Check valves prevent backflow from other parts of the hydraulic system, ensuring pressure and fluid flow are maintained.
Air Compressors: Pneumatic systems use check valves to prevent air from flowing backward into the compressor, ensuring stable air pressure for tools and actuators.
Actuator Protection: Check valves are used in pneumatic actuators to ensure that air pressure remains constant and prevents unintended reverse flow that could affect operation.
Pressure Maintenance: Check valves help to maintain air pressure in circuits, preventing pressure loss that could lead to inefficient operation of pneumatic machinery.
Check valves play a vital role in improving the performance and reliability of both hydraulic and pneumatic systems. By preventing backflow, ensuring consistent pressure, and protecting critical components from damage, check valves help maintain optimal system efficiency and reduce maintenance costs. These simple yet highly effective components are integral to the smooth operation of a wide range of industrial and commercial systems.
