How Do The Design Standards of Check Valves Adapt To Complex Working Conditions?

Check valves, also known as non-return valves, play a crucial role in fluid systems by preventing backflow and ensuring unidirectional flow. In complex operating conditions, such as those involving high pressures, high temperatures, corrosive fluids, or fluctuating flow rates, the design and selection of check valves become even more critical. Adapting to these challenging environments requires a thorough understanding of design standards and the ability to customize solutions to meet specific application needs.

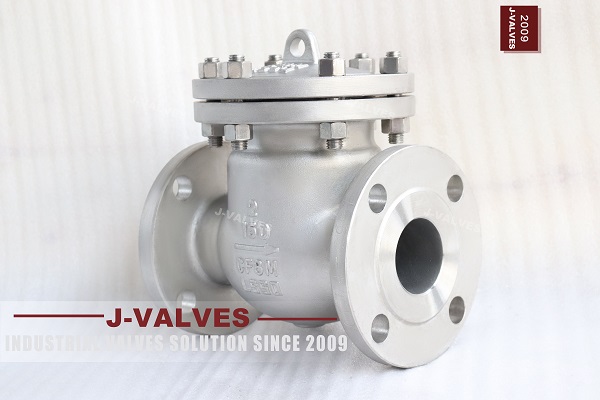

Understanding Check Valve Design Standards

Key Standards and Specifications

Check valves are governed by several international and national standards that define their design, manufacturing, testing, and performance characteristics. Some of the most commonly referenced standards include:

• ANSI/ASME B16.34: This American standard covers the design, materials, and testing of check valves, including flanged, threaded, and welded end connections.

• API 594: This standard from the American Petroleum Institute focuses on wafer and double-flanged check valves, providing detailed requirements for design, materials, and testing.

• DIN EN 13709: This European standard addresses industrial valves, including steel globe and globe stop and check valves, covering design, materials, and testing requirements.

• ISO 5208: This international standard provides guidelines for the pressure testing of industrial valves, including check valves.

• JIS B2074: This Japanese standard covers the design and testing of check valves, ensuring compatibility and performance in Japanese and Asian markets.

Key Considerations in Design Standards

1. Pressure and Temperature Ratings: Ensure the valve's pressure and temperature ratings meet or exceed the operating conditions of your system.

2. Material Specifications: Choose materials that are compatible with the fluid and operating conditions, considering factors such as corrosion resistance, strength, and thermal stability.

3. End Connections: Select the appropriate end connections (e.g., flanged, threaded, welded) based on your piping system requirements.

4. Actuation Method: Determine the type of actuation required (e.g., manual, electric, pneumatic) based on the application's needs for control and automation.

5. Testing and Certification: Ensure the valve meets the required testing and certification standards to guarantee its performance and reliability.

Adapting Design Standards to Complex Operating Conditions

1. High-Pressure Applications

Challenges: High-pressure environments can cause excessive stress on valve components, leading to deformation, leakage, or failure.Adaptations:

• Material Selection: Use high-strength materials such as alloy steel or super duplex stainless steel to withstand high pressures.

• Thicker Wall Construction: Increase the wall thickness of the valve body and components to enhance structural integrity.

• Advanced Testing: Conduct hydrostatic and pneumatic pressure tests beyond the standard requirements to ensure the valve can handle extreme pressures.

2. High-Temperature Applications

Challenges: High temperatures can degrade materials, reduce mechanical properties, and cause thermal expansion, leading to leaks or reduced sealing effectiveness.Adaptations:

• High-Temperature Materials: Select materials with high thermal stability, such as Inconel or Hastelloy, which maintain their properties at elevated temperatures.

• Thermal Expansion Compensation: Design the valve with allowances for thermal expansion, such as using flexible connections or expansion joints.

• Insulation: Apply thermal insulation to the valve body to reduce heat transfer and maintain operating temperatures within safe limits.

3. Corrosive Fluids

Challenges: Corrosive fluids can rapidly degrade valve materials, leading to leaks, reduced sealing effectiveness, and premature failure.Adaptations:

• Corrosion-Resistant Materials: Use materials such as stainless steel (316L, 904L), Hastelloy, or titanium, which offer superior resistance to specific corrosive fluids.

• Coatings and Linings: Apply corrosion-resistant coatings or linings to the valve body and internal components to enhance durability.

• Seal Materials: Choose seal materials such as PTFE, PEEK, or Viton, which provide excellent chemical resistance and low friction properties.
