Special Designs And Applications of Check Valves And Gate Valves in Petrochemical Field

In the petrochemical industry, the selection and application of valves are crucial for ensuring the safety, efficiency, and reliability of operations. Check valves and gate valves are two common types of valves that play significant roles in various processes.

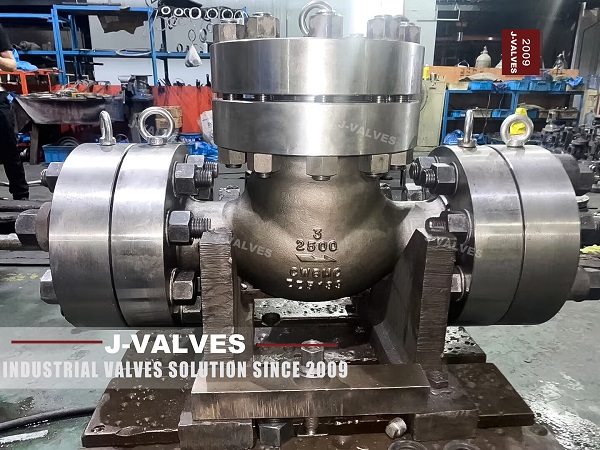

Special Designs of Check Valves

Key Features

• Preventing Backflow: Check valves are designed to allow fluid to flow in only one direction, preventing backflow and protecting against potential damage or contamination.

• Low Pressure Drop: Many check valves are designed to minimize pressure drop, ensuring efficient fluid flow and reducing energy consumption.

• Quick Response: Some check valves, such as spring-loaded or piston-type designs, offer quick response times to changes in flow direction, providing immediate protection against backflow.

Applications in Petrochemical Field

• Pump Discharge: Check valves are often installed at the discharge of pumps to prevent backflow when the pump is stopped, protecting the pump and maintaining system pressure.

• Pipeline Systems: In pipeline systems, check valves ensure that fluids flow in the intended direction, preventing reverse flow that could lead to operational issues or safety hazards.

• Process Equipment: In distillation columns, heat exchangers, and other process equipment, check valves prevent the backflow of fluids, ensuring the proper operation of the equipment.

Special Designs of Gate Valves

Key Features

• Full Bore Design: Gate valves are designed to provide full bore flow, minimizing pressure drop and allowing for efficient fluid flow.

• Tight Sealing: Gate valves offer excellent sealing capabilities, ensuring minimal leakage and reliable shutoff.

• Durability: Made from high-strength materials such as carbon steel, stainless steel, and alloy steels, gate valves are designed to withstand harsh conditions and long-term use.

Applications in Petrochemical Field

• Pipeline Control: Gate valves are used in pipeline systems to control the flow of fluids, providing reliable shutoff and flow control.

• Process Control: In refining and petrochemical processes, gate valves are used to control the flow of various media, including hydrocarbons, chemicals, and steam.

• Safety Systems: Gate valves are often used in safety systems to provide emergency shutoff capabilities, ensuring the safety of personnel and equipment.

Comparative Analysis

Key Differences
