API Vs. ISO: A Deep Dive into Check Valve And Gate Valve Design Standards

In the realm of industrial fluid control, the selection of valves is a critical decision that impacts the efficiency, reliability, and safety of operations. API (American Petroleum Institute) and ISO (International Organization for Standardization) standards are two prominent guidelines that ensure valves meet stringent quality and performance criteria.

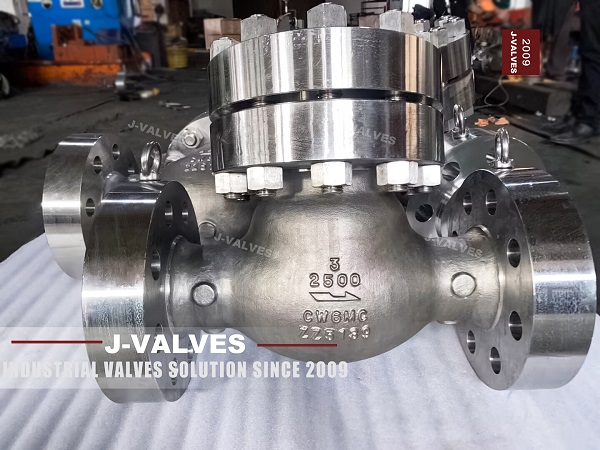

API Standards for Check Valves

API 594: Check Valves

• Scope: API 594 is a widely accepted standard for check valves, covering design, materials, dimensions, pressure-temperature ratings, and testing requirements.

• Material Specifications: API 594 allows for a variety of materials, including carbon steel, stainless steel, and alloy steels, to meet specific application requirements.

• Pressure and Temperature Ratings: Check valves designed to API 594 are capable of handling a wide range of pressures and temperatures, ensuring their suitability for various industrial applications.

• Testing Protocols: Comprehensive testing, including hydrostatic and pneumatic tests, is conducted to verify the valve's integrity and performance.

ISO Standards for Check Valves

ISO 10642: Check Valves

• Scope: ISO 10642 is an international standard that specifies the design, manufacturing, and testing requirements for check valves. It ensures compatibility and reliability across different manufacturers.

• Material Specifications: ISO 10642 allows for a variety of materials, including cast iron, stainless steel, and alloy steels, to meet specific application requirements.

• Pressure and Temperature Ratings: Check valves designed to ISO 10642 are capable of handling a wide range of pressures and temperatures, ensuring their suitability for various industrial applications.

• Testing Protocols: Comprehensive testing, including hydrostatic and pneumatic tests, is conducted to verify the valve's integrity and performance.

API Standards for Gate Valves

API 600: Gate Valves

• Scope: API 600 is a primary standard for gate valves, particularly in the oil and gas industry. It specifies requirements for design, materials, and testing to ensure reliability and safety.

• Material Specifications: API 600 allows for high-strength materials such as carbon steel, stainless steel, and alloy steels to ensure durability and corrosion resistance.

• Pressure and Temperature Ratings: Gate valves designed to API 600 are capable of handling high pressures and a wide range of temperatures, making them suitable for demanding industrial applications.

• Testing Protocols: Rigorous testing, including hydrostatic and pneumatic tests, is conducted to ensure the valve's ability to maintain pressure containment and prevent leakage.

ISO Standards for Gate Valves

ISO 10434: Gate Valves

• Scope: ISO 10434 specifies the design, manufacturing, and testing requirements for gate valves used in industrial applications. It ensures compatibility and reliability across different manufacturers.

• Material Specifications: ISO 10434 allows for a variety of materials, including carbon steel, stainless steel, and alloy steels, to meet specific application requirements.

• Pressure and Temperature Ratings: Gate valves designed to ISO 10434 are capable of handling a wide range of pressures and temperatures, ensuring their suitability for various industrial applications.

• Testing Protocols: Comprehensive testing, including hydrostatic and pneumatic tests, is conducted to verify the valve's integrity and performance.

Comparative Analysis

Key Differences
