High Performance C95800 Check Valve for Seawater Corrosion Resistance And Offshore Pipeline Protection

Introduction

In industrial pipeline systems where backflow prevention is critical, the check valve plays an essential role in protecting equipment and ensuring stable flow direction. Among various materials used in harsh environments, the C95800 nickel aluminum bronze (NAB) check valve is widely recognized for its superior corrosion resistance and long service life.

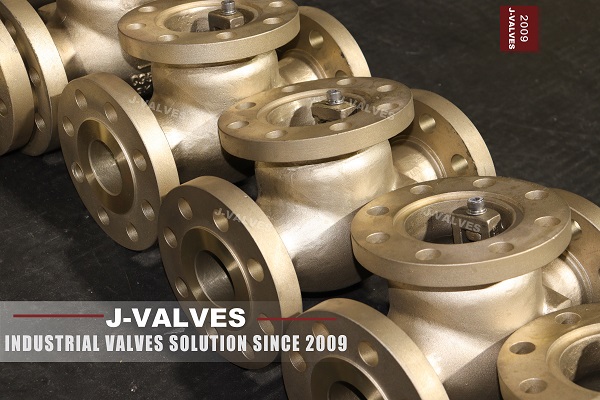

The valve shown represents a 300LB class flanged C95800 check valve produced in a precision machining environment, designed for demanding applications such as seawater systems, offshore platforms, and chemical processing pipelines.

What Is a C95800 Check Valve?

A check valve is an automatic non-return valve that allows fluid to flow in only one direction and prevents reverse flow without manual operation.

When manufactured using ASTM B148 C95800 nickel aluminum bronze, the valve becomes especially suitable for:

• Marine seawater systems

• Offshore oil and gas platforms

• Desalination plants

• Cooling water circulation systems

• Corrosive industrial environments

Material Advantage: Why C95800 Alloy Is Preferred

1. Excellent Seawater Corrosion Resistance

C95800 provides outstanding resistance against:

• Chloride-induced corrosion

• Pitting and crevice corrosion

• Marine atmospheric degradation

• Saltwater erosion

This makes it one of the most reliable materials for long-term marine service.

2. High Strength and Durability

Compared with conventional bronze materials, C95800 offers:

• Higher tensile strength

• Improved impact resistance

• Better fatigue performance under cyclic pressure

3. Anti-Fouling Behavior

The alloy surface reduces marine organism adhesion, improving long-term flow efficiency in seawater systems.

Structural Design of C95800 Check Valve

1. Flanged Connection Design

The valve uses flanged ends for:

• Strong pipeline connection stability

• Easy installation and maintenance

• Compatibility with ASME B16.5 piping standards

• Reduced leakage risk under pressure fluctuations

2. Swing Check or Lift Check Structure

Depending on design requirements, C95800 check valves may be:

• Swing type check valve (common for large pipelines)

• Lift type check valve (used for higher pressure or compact systems)

Both designs ensure automatic backflow prevention without external control.

3. Disc and Seat Design

The sealing system includes:

• Precision machined disc

• Renewable or integrated seat ring

• Metal-to-metal or soft sealing options

This ensures:

• Reliable sealing under low and high pressure

• Reduced wear during repeated operation

• Stable long-term performance

4. Pressure Class: 300LB Design

The 300LB rating ensures:

• Suitability for medium-high pressure systems

• Compliance with ASME B16.34 standards

• Stable performance in offshore and industrial pipelines

Working Principle of Check Valve

The operating mechanism is fully automatic:

1. Fluid flows in the designed forward direction

2. Pressure pushes the disc open

3. When flow stops or reverses, gravity and backpressure close the disc

4. The valve prevents reverse flow into the system

This protects pumps, compressors, and critical downstream equipment from damage.

Key Advantages of C95800 Check Valve

1. Superior Marine Corrosion Resistance

Ideal for seawater, offshore, and coastal environments.

2. Automatic Operation

No external actuator required, ensuring simple and reliable function.

3. Long Service Life

C95800 material significantly extends operational durability.

4. Low Maintenance Requirement

Reduced wear and corrosion lead to longer maintenance intervals.

5. Stable Flow Performance

Optimized internal geometry reduces pressure loss and turbulence.

Typical Applications

The C95800 check valve is widely used in:

• Offshore oil and gas production systems

• Shipbuilding and marine ballast systems

• Seawater desalination plants

• Cooling water circulation systems in power plants

• Petrochemical processing systems

• Coastal industrial infrastructure

Manufacturing Excellence – J-VALVES Engineering Capability

As a professional industrial valve manufacturer, J-VALVES specializes in high-performance nickel aluminum bronze valve solutions.

Key engineering strengths include:

• Precision casting of C95800 alloy for uniform material structure

• CNC machining for high sealing accuracy

• Strict dimensional and pressure control

• Compliance with API, ASME, and ISO international standards

• Full material traceability and inspection documentation

• Custom design options for marine and offshore engineering projects

Quality Testing and Inspection

Each check valve undergoes strict quality control:

• Hydrostatic shell test

• Seat leakage test

• Disc movement performance test

• Material chemical composition analysis

• Non-destructive testing (UT / PT / MT)

These procedures ensure safe and reliable operation in critical systems.

Conclusion

The C95800 nickel aluminum bronze check valve is a critical component in modern marine and industrial pipeline systems. With its excellent corrosion resistance, reliable automatic operation, and long service life, it provides essential protection against backflow in demanding environments.

Supported by advanced manufacturing technology and strict quality standards, J-VALVES delivers high-performance check valve solutions that meet global engineering requirements for offshore, seawater, and industrial applications.
