Butterfly Valves Vs. Ball Valves: Performance Comparison in High-Temperature, High-Pressure Environments

High-Temperature, High-Pressure Performance

Ball Valves

Design and Operation

• Structure: Ball valves feature a spherical ball with a hole through the center. The ball rotates to open or close the valve, providing a tight seal when closed.

• Operation: Ball valves offer quick shutoff capabilities due to their quarter-turn operation. This design allows for rapid opening and closing, which is beneficial in applications requiring quick response times.

• Sealing Performance: Ball valves can provide excellent sealing performance, even under high-pressure conditions. The metal-to-metal or soft-seated seals ensure minimal leakage.

• Materials: Ball valves are often made from materials such as stainless steel, alloy steel, or other high-temperature alloys to withstand extreme conditions.

Performance in High-Temperature, High-Pressure Environments

• Temperature Range: Ball valves can operate effectively in a wide temperature range, typically from -29°C to 121°C, with some designs extending up to 450°C.

• Pressure Ratings: Ball valves are designed to handle high pressures, with pressure ratings up to 2500 psi (17.2 MPa) and higher, making them suitable for demanding industrial applications.

• Reliability: The robust design and high-quality materials ensure long-term reliability and minimal maintenance requirements.

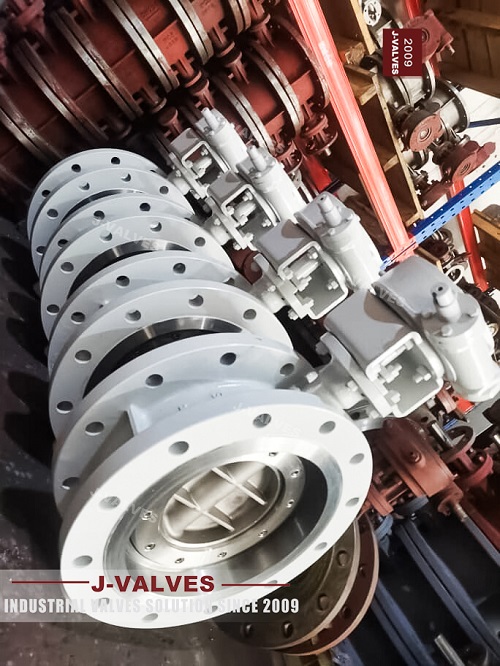

Butterfly Valves

Design and Operation

• Structure: Butterfly valves consist of a circular disc that rotates around a central axis to control flow. The disc is positioned perpendicular to the flow when closed and parallel when open.

• Operation: Butterfly valves offer quick operation and are known for their ability to handle large flow volumes. They are particularly useful in applications requiring frequent operation.

• Sealing Performance: Butterfly valves can provide good sealing performance, but their seals may be more susceptible to wear over time, especially in high-temperature environments.

• Materials: Butterfly valves are often made from materials such as stainless steel, carbon steel, or alloy steel, with seals made from PTFE or other high-temperature materials.

Performance in High-Temperature, High-Pressure Environments

• Temperature Range: Butterfly valves can operate in a wide temperature range, typically from -29°C to 121°C, with some designs extending up to 450°C.

• Pressure Ratings: Butterfly valves are designed to handle pressures up to 600 psi (4.1 MPa) and higher, making them suitable for many industrial applications.

• Reliability: The simple design and fewer moving parts of butterfly valves contribute to their reliability and ease of maintenance.

Comparative Analysis

Key Differences
