These butterfly valves are commonly used in industrial fluid systems to regulate or isolate flow efficiently, offering high performance, reliability, and durability. This article explores their design features, materials, and applications, focusing on optimization for industrial operations.

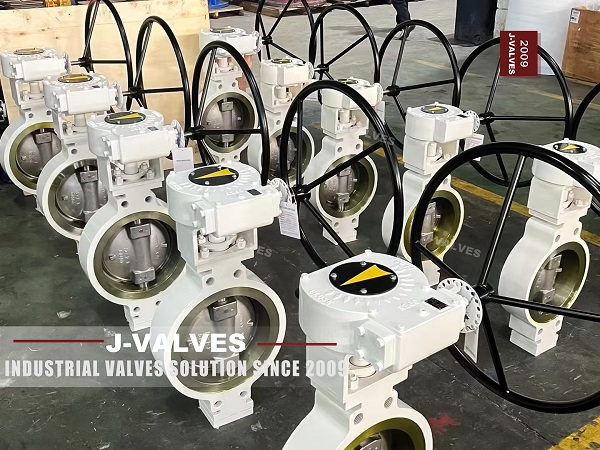

The butterfly valves in the image are wafer-style or lug-style, characterized by a circular disc mounted on a rotating shaft, which pivots to open or close the flow. Key design aspects include:
Large handwheel actuators: Provide precise manual control for high-torque applications.
Gearboxes: Some valves are equipped with gear-driven actuators, enabling efficient operation in high-pressure systems.
Disc and seat assembly: Typically designed for tight shutoff and low leakage, suitable for industrial fluids, gases, or slurries.
Flanged connection options: Allow easy installation in piping systems without significant modifications.
This combination of features ensures smooth operation even under high pressure, high flow, or aggressive media conditions.
The valve bodies appear to be coated or painted for corrosion protection, and the internal components are likely stainless steel or C95800 (Nickel-Aluminum Bronze). Material choice is crucial for:
Corrosion resistance: Stainless steel or C95800 ensures longevity in chemical, saline, or seawater applications.
Mechanical strength: High-strength alloys prevent deformation under high pressure or mechanical stress.
Sealing performance: Elastomeric or reinforced PTFE seats provide tight shutoff and resistance to wear.
The careful selection of materials ensures reliability, even in marine, petrochemical, or power generation systems.
Compact and Lightweight: Compared to gate or globe valves, butterfly valves provide a smaller footprint and easier installation.
Low Operational Torque: The design reduces effort required for opening or closing, especially with gear actuators.
High Flow Capacity: The unobstructed disc design allows maximum flow with minimal pressure drop.
Versatile Applications: Suitable for water treatment, chemical processing, HVAC systems, and offshore operations.
Durability and Low Maintenance: Corrosion-resistant materials and robust actuator designs extend service life while minimizing downtime.
Application | Reason for Use |
|---|---|
Seawater Cooling Systems | C95800 body resists corrosion and biofouling |
Power Plants | High-pressure capability and precise flow control |
Chemical Processing | PTFE or PEEK seats resist chemical degradation |
Water Treatment Plants | Large-diameter design allows high flow with minimal pressure loss |
When selecting large-diameter butterfly valves, engineers should evaluate:
Flow characteristics: Ensure disc design does not induce turbulence or cavitation.
Pressure and temperature limits: Match material and seat selection to operational conditions.
Actuation type: Manual handwheels are suitable for low-frequency operation; gearboxes or electric actuators are ideal for automated or high-torque applications.
Maintenance accessibility: Flanged or lug designs allow easy removal for inspection or seat replacement.
The industrial butterfly valves represent modern engineering solutions for high-performance fluid control. With robust materials, precise actuators, and efficient sealing mechanisms, these valves offer long-lasting performance in challenging environments. Whether in marine, chemical, or power generation applications, selecting the correct valve size, material, and actuator type is critical for operational efficiency, safety, and reduced maintenance costs.
